NDS 253S Class B ADA Compliant Wave HDPE 4" x 24" Grate - SAND

Grate Width: 4.13" for NDS Spee-D

Grate Thickness: 0.75"

Grate Material / Color / Finish: Plastic/HDPE - Gray

Manufacturer: NDS

System: Spee-D

Grate Load Class: Class B

Grate Pattern: OBLIO

Grate Pattern Style: GEOMETRIC

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

NDS® Spee-D Channel line of decorative structural Polyolefin grating.
Large project? Request a Quote

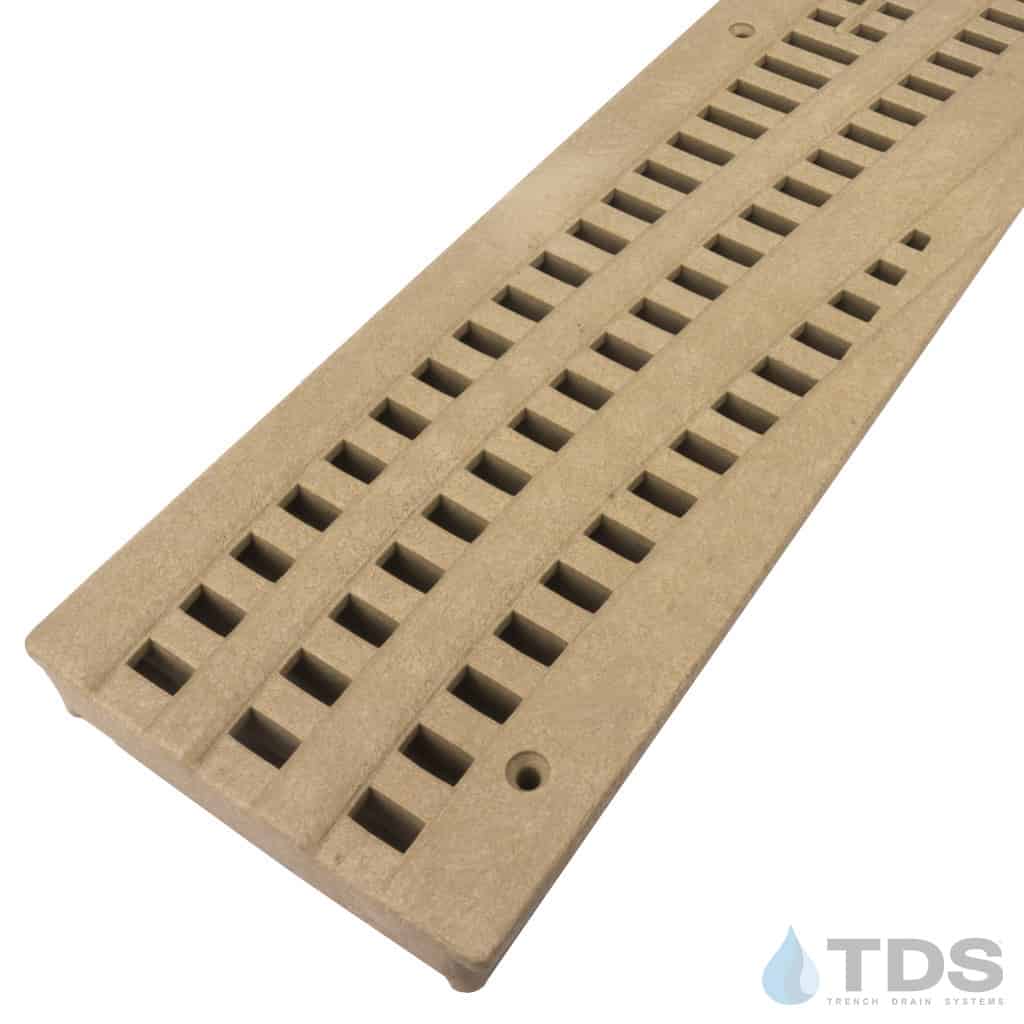

The Sand Wave pattern grate is one of the popular NDS® Spee-D Channel decorative high-density Polyethylene grates. This grate has a Load Class B rating and fits the same Spee-D channel drain sold at the major home improvement box stores. The NDS® Wave pattern is ADA-compliant and heel-proof, making it an excellent option for pedestrian locations. UV inhibitors in the grate prevent fading and cracking from the sun. All NDS® grates are chemically resistant, rustproof, and maintenance-free.

Actual Dimensions: 24" L x 4.420" W

Designed to fit: NDS – Spee-D Channel

Four NDS829 screws (sold separately) are required per grate for fastening down to the channel.
