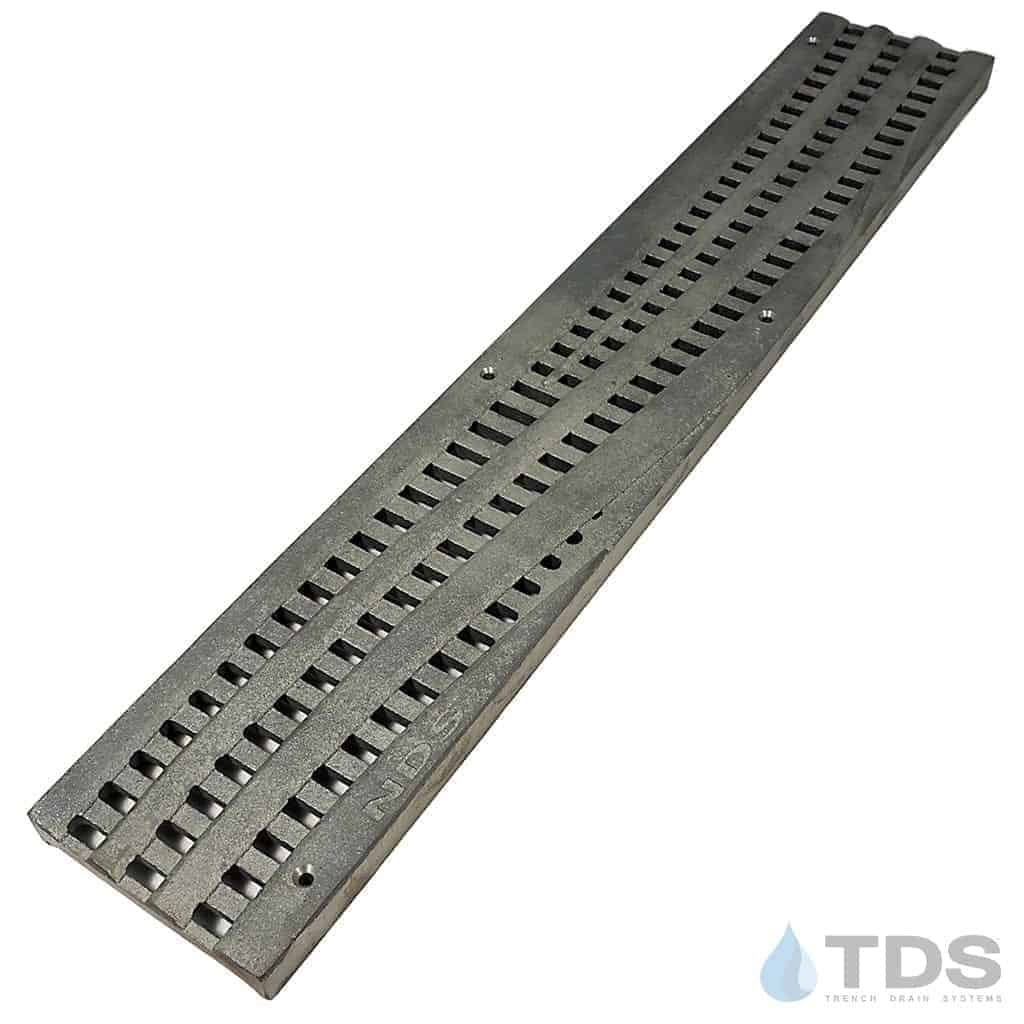

NDS 253CI Class B ADA Compliant Wave Ductile Iron 4" x 24" Grate - RAW

Grate Width: 4.13" for NDS Spee-D

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: NDS

System: Spee-D

Grate Load Class: Class B

Grate Pattern: OBLIO

Grate Pattern Style: GEOMETRIC

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Decorative cast iron trench grate in Wave pattern specially designed for the NDS­® Spee-D Channel drain system. Wave grate comes in raw casting or Baked on Oil Finish (BooF).

Four screws (NDS829) are required per grate for fastening down to the channel (not included).

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

What is Baked On Oil Finish (BoOF)? Click Here to learn more.
