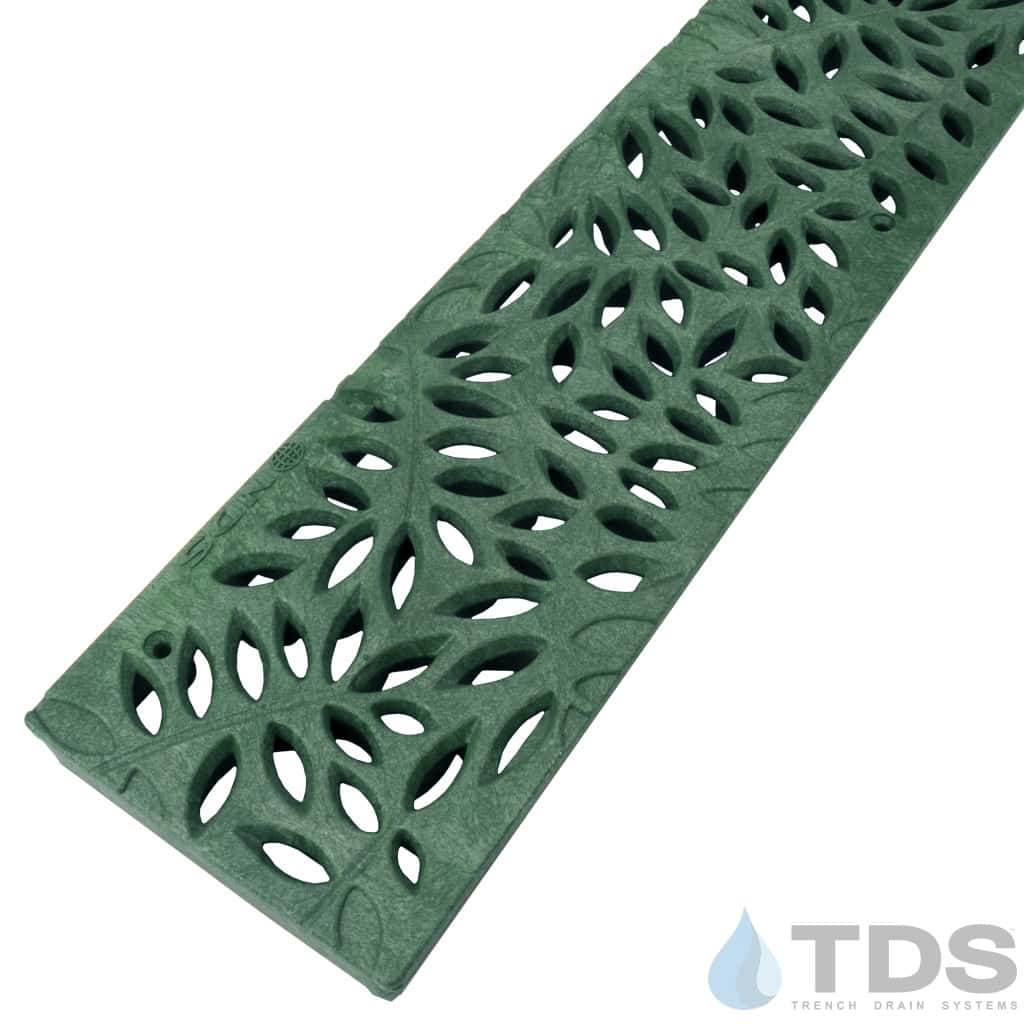

NDS 252GR Class B ADA Compliant Heel-Proof Botanical HDPE 4" x 24" Grate - GREEN

Grate Width: 4.13" for NDS Spee-D

Grate Thickness: 0.75"

Grate Material / Color / Finish: Plastic/HDPE - Green

Manufacturer: NDS

System: Spee-D

Grate Load Class: Class B

Grate Pattern: OBLIO

Grate Pattern Style: GEOMETRIC

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

NDS® Spee-D Channel line of decorative structural Polyolefin grating.
Large project? Request a Quote

NDS® 4" Spee-D Channel decorative Botanical Polyolefin (HDPE) grates have UV inhibitors to help prevent fading and cracking from the sun. All NDS® structural Polyolefin grates are ADA-compliant, chemically resistant, rustproof, and nearly maintenance-free. These grates are also designed to withstand light vehicular traffic often found in patio or driveway drainage. They help to remove excess water runoff and are able to handle up to 51 GPM (Gallons Per Minute).

Actual Dimensions: 4.42" W [105mm] x 24" L [609mm] x 3/4" H [19mm]

Four screws (NDS829) are required per grate for fastening down to the channel (sold separately).

Designed to fit: NDS – Spee-D Channel
