NDS 242 Class B ADA Compliant Slotted HDPE 4" x 24" Grate - GREEN

Grate Width: 4.13" for NDS Spee-D

Grate Thickness: 0.75"

Grate Material / Color / Finish: Plastic/HDPE - Green

Manufacturer: NDS

System: Spee-D

Grate Load Class: Class B

Grate Pattern: OBLIO

Grate Pattern Style: GEOMETRIC

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

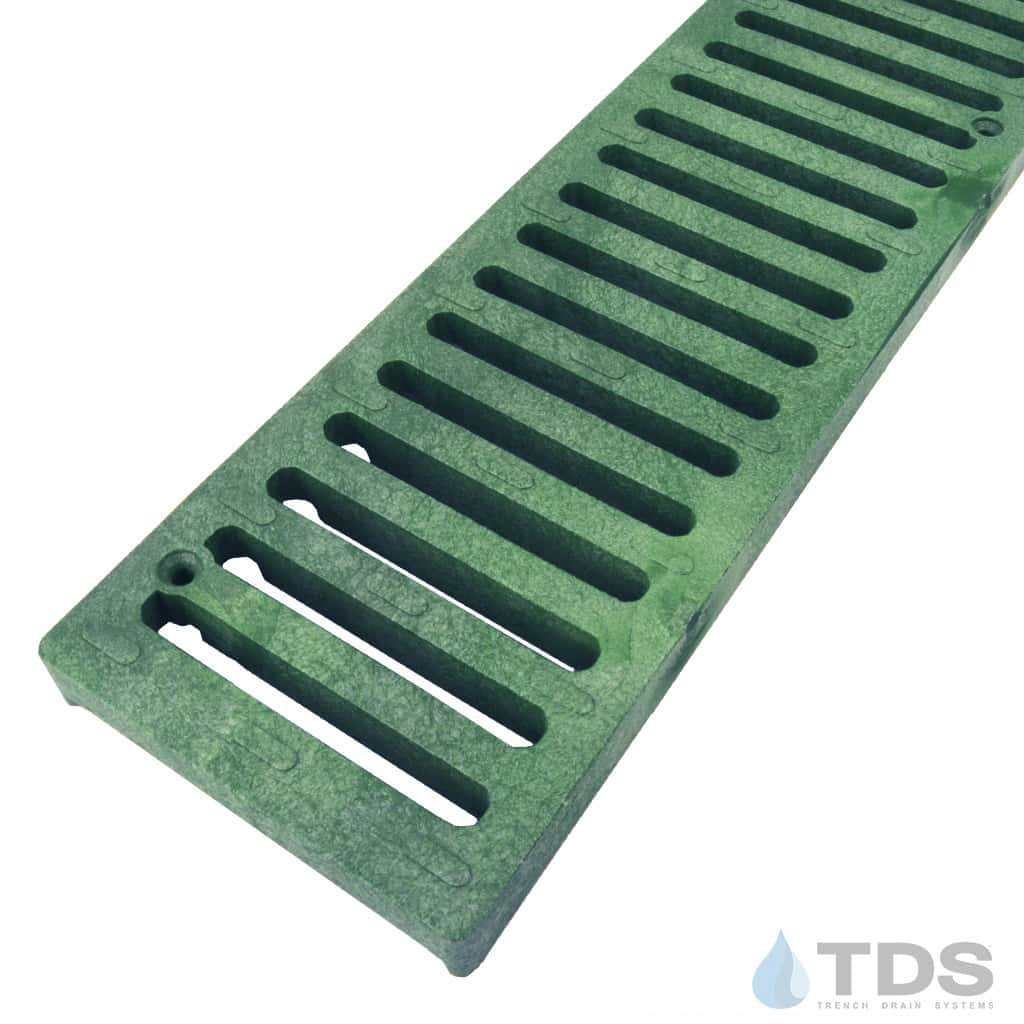

NDS® Spee-D Channel replacement plastic slotted grates
Large project? Request a Quote

NDS® 4" Spee-D Channel slotted structural Polyolefin (HDPE) grates have UV inhibitors to help prevent fading and cracking from the sun. All NDS® structural Polyolefin grates are ADA-compliant, chemically resistant, rustproof, and nearly maintenance-free. These grates are also designed to withstand light vehicular traffic often found in patio or driveway drainage. They help to remove excess water runoff and are able to handle up to 51 GPM (Gallons Per Minute).

Actual Dimensions: 4.13" W [105mm] x 24" L [609mm] x 3/4" H [19mm]

Specification Sheet for NDS-242

Designed to fit: NDS – Spee-D Channel

Grates are available in 6 different colors

• 242 - Green
• 251 - Red
• 243 - Black
• 241 - Gray
• 244 - Sand
• 240 - White

What is Baked On Oil Finish? Click Here to learn more.
