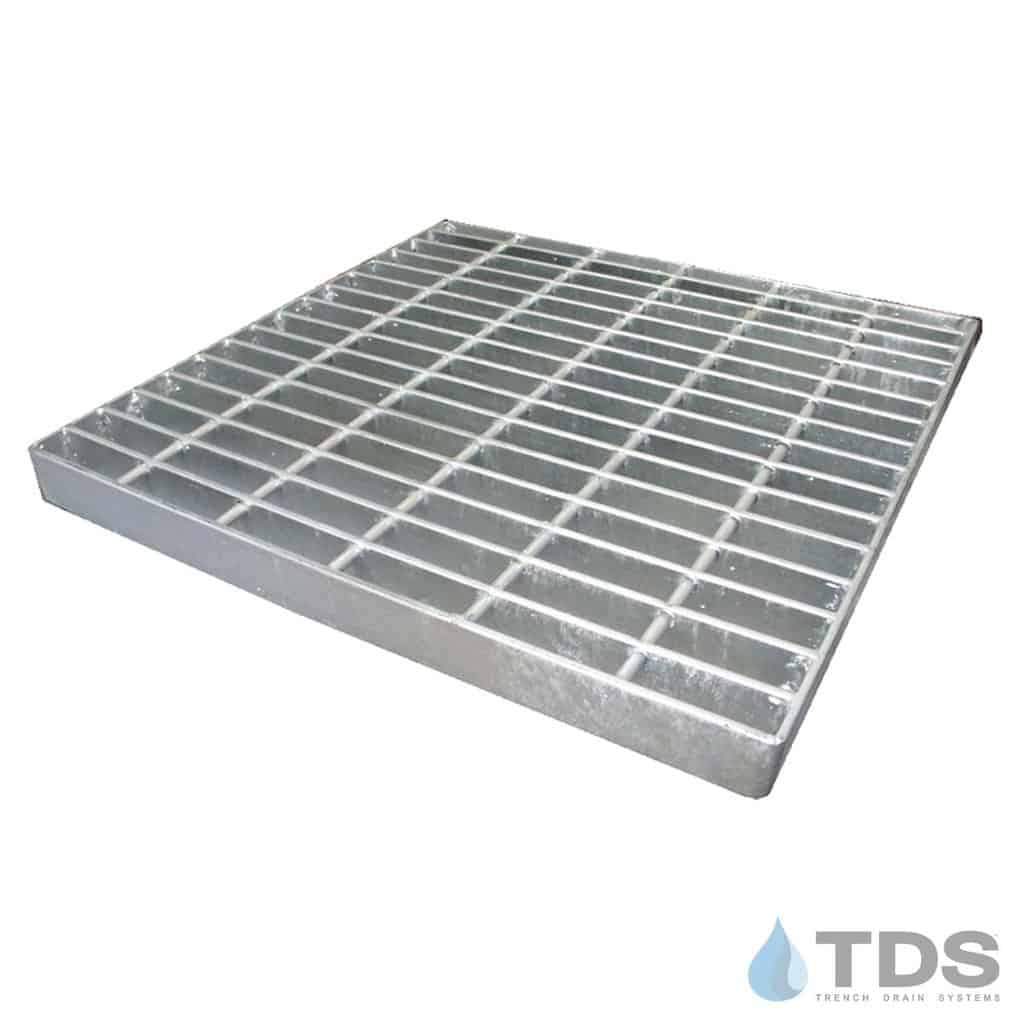

NDS 2415 Class C HD Bar Galvanized 24" x 24" Grate

Grate Width: 24.0" x 24.0" for NDS 2400 Series

Grate Thickness: 2.00"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: NDS

System: 2400 Series

Grate Load Class: Class B

Grate Pattern: OBLIO

Grate Pattern Style: GEOMETRIC

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Food Processing, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

Galvanized steel bar catch basin grates from NDS®. Class C load rated.
Large project? Request a Quote

The square galvanized steel grate from NDS® is ideal for yard drains to collect surface water and minimizing the amount of debris that enters the system. This rust- and corrosion-resistant galvanized steel grate can be used with the 24 inch NDS catch basin to drain heavy flows of excess stormwater from driveways, parking lots, and landscaped areas.

Actual Dimensions: 23-3/4" x 23-3/4" x 2"

Load Class C (when properly installed)

Capacity: 1292 GPM (Gallons per Minute)

Open Surface Area: 422.45 square inches

Grate Openings: 1-1/4″
