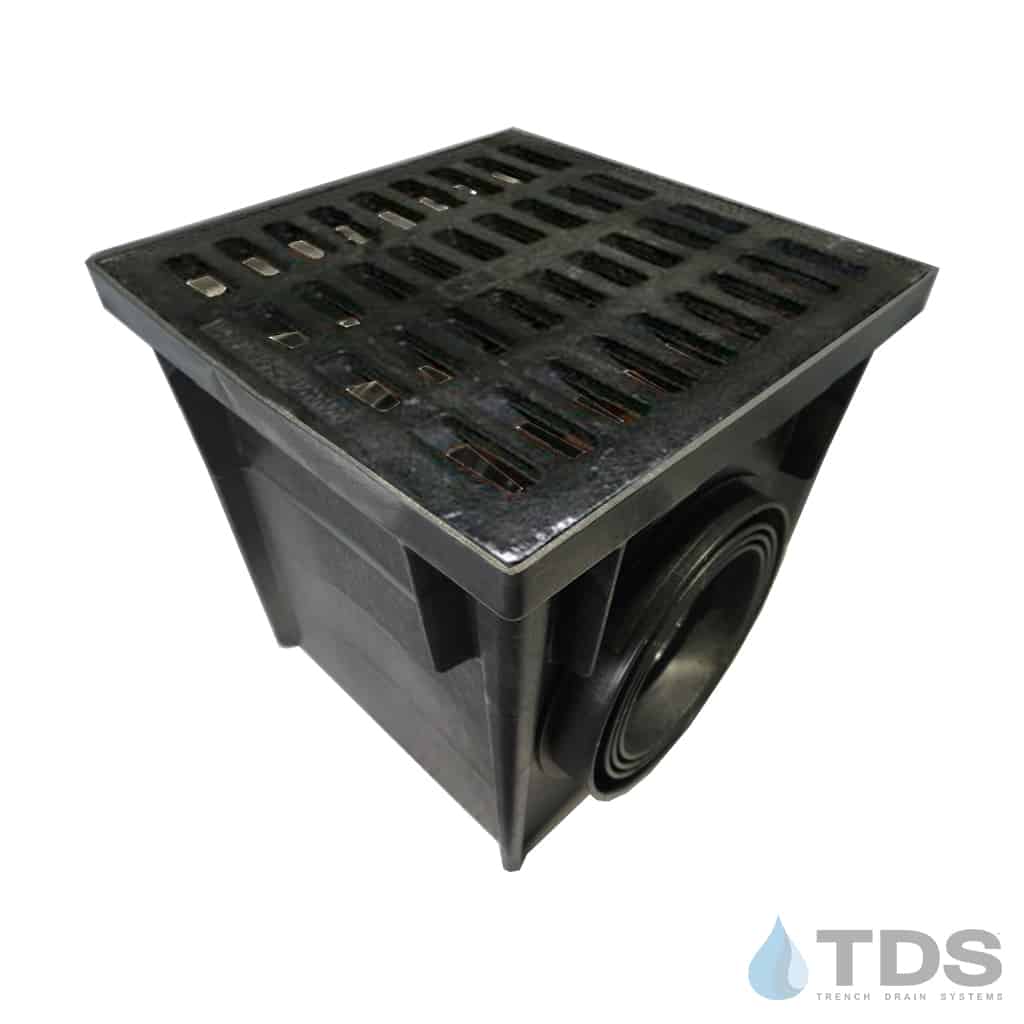

NDS 24" Catch Basin Kit with NDS2413 Slotted Cast Iron Grate | Black

Grate Width: 24.0" x 24.0" for NDS 2400 Series

Grate Thickness: 2.00"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: NDS

System: 2400 Series

Grate Load Class: Class C

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

See description for complete kit options

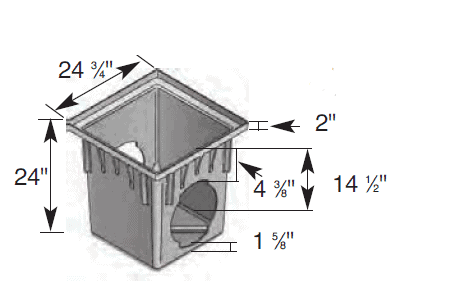

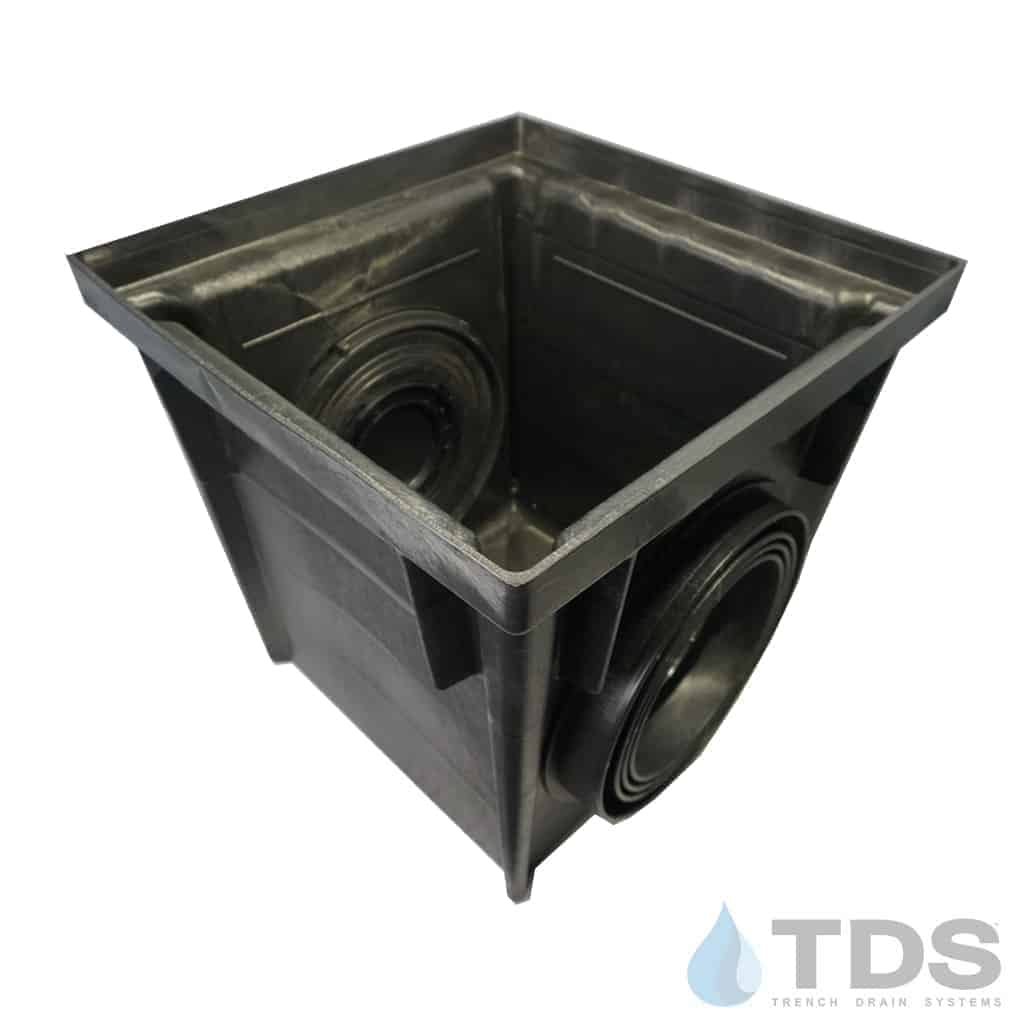

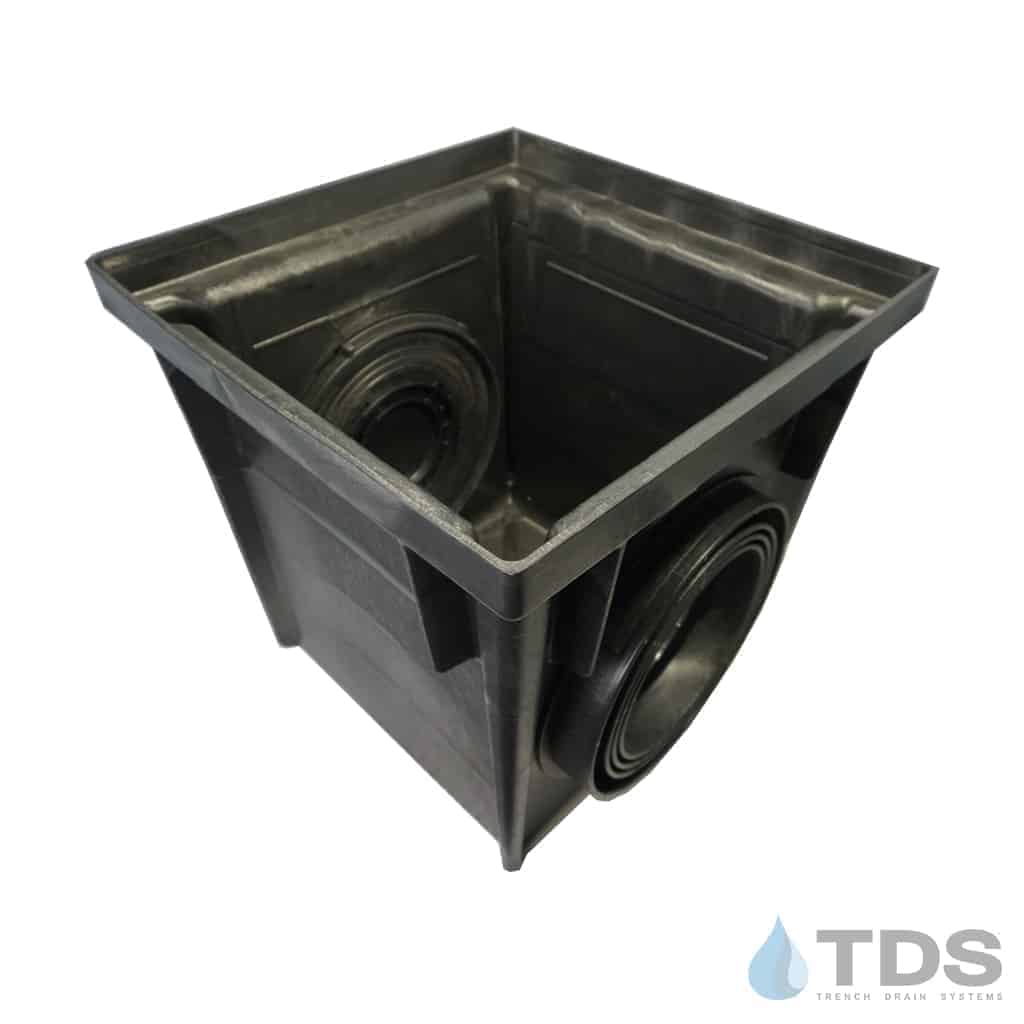

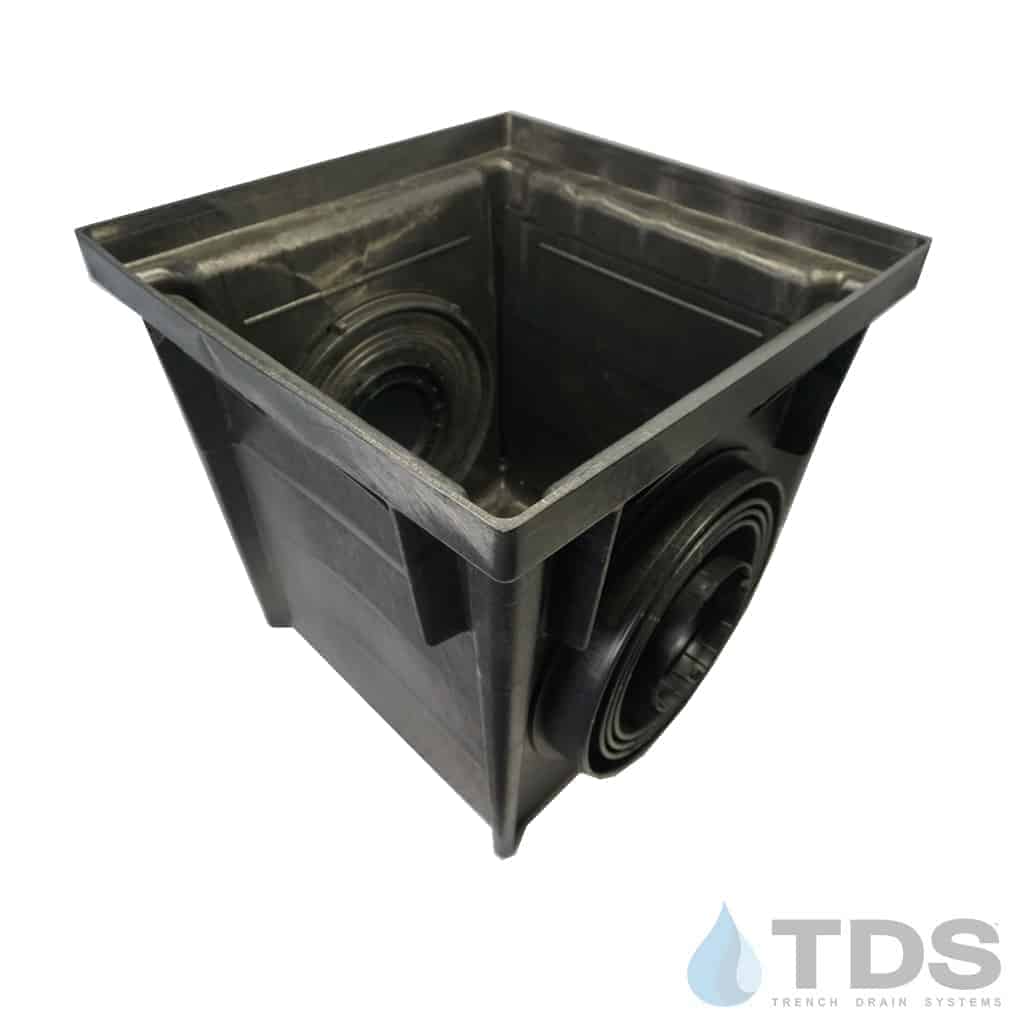

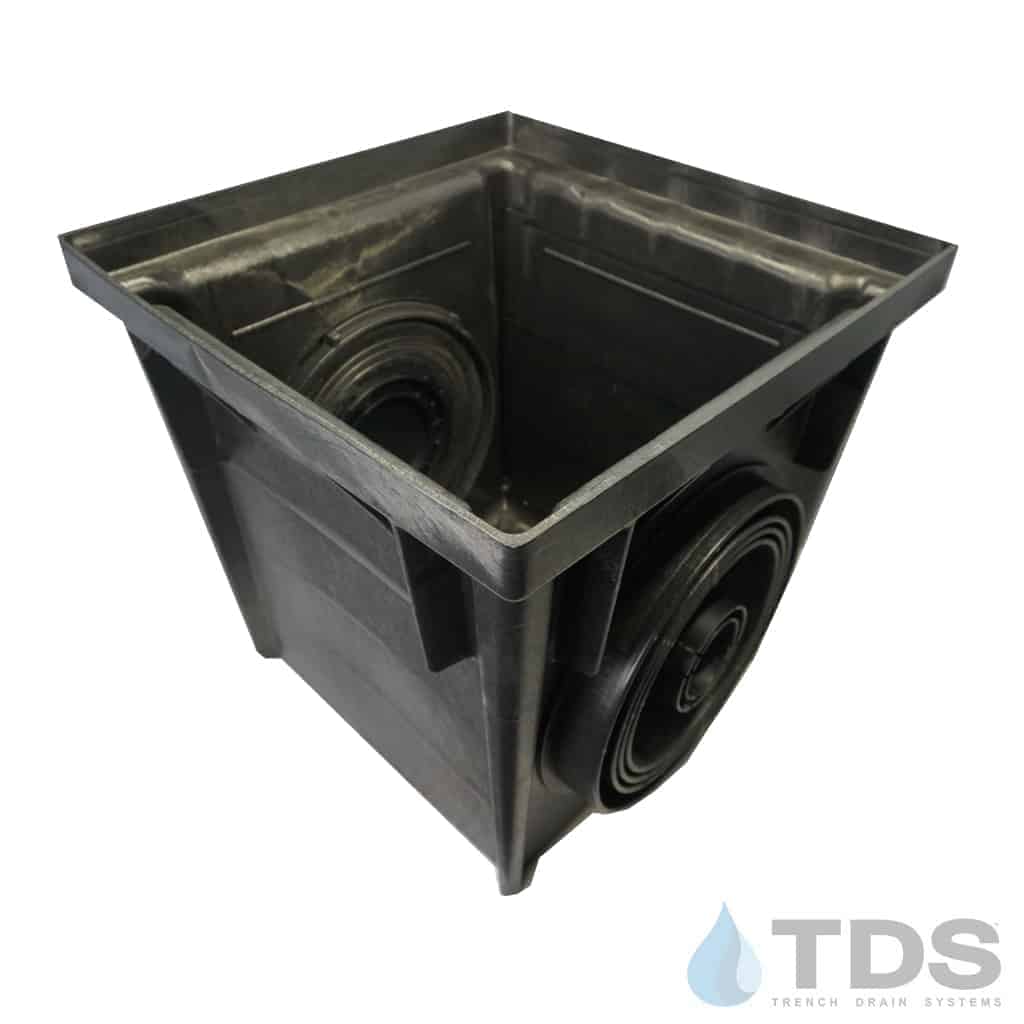

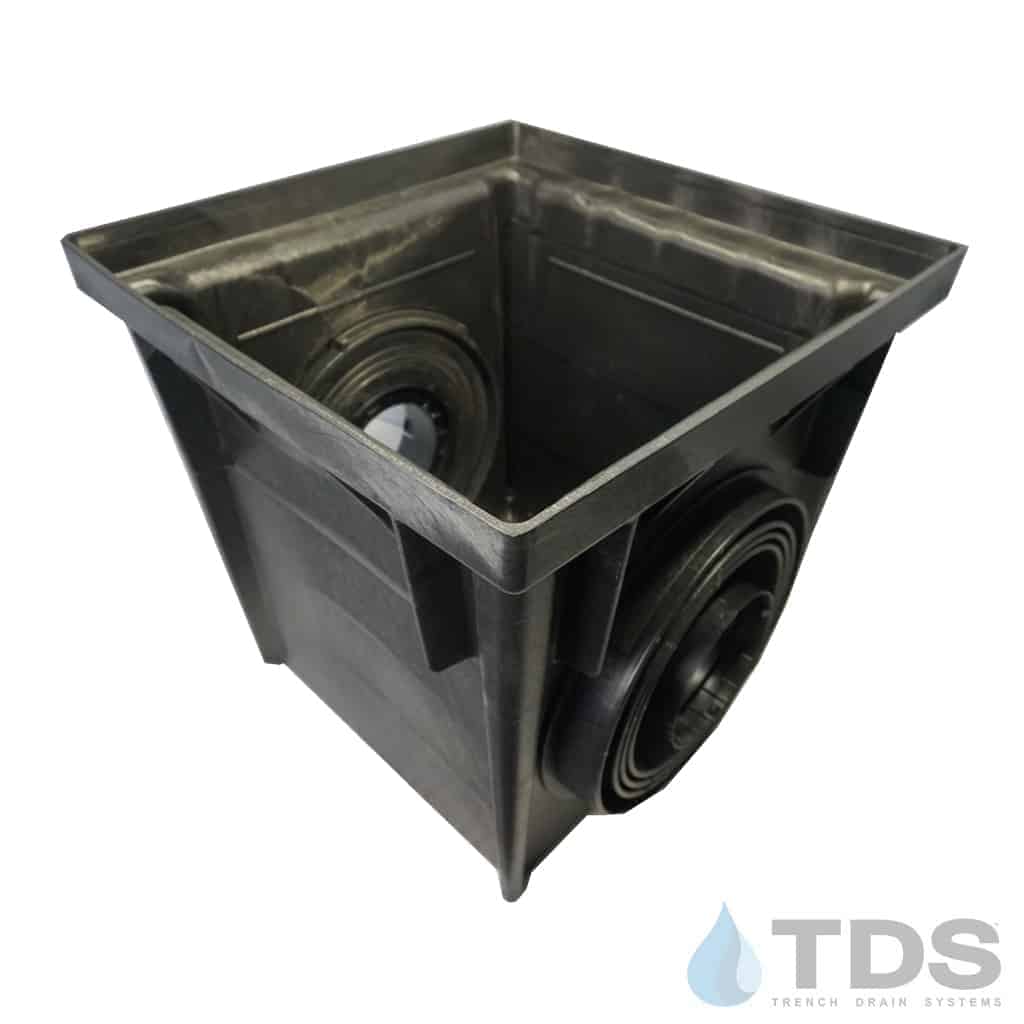

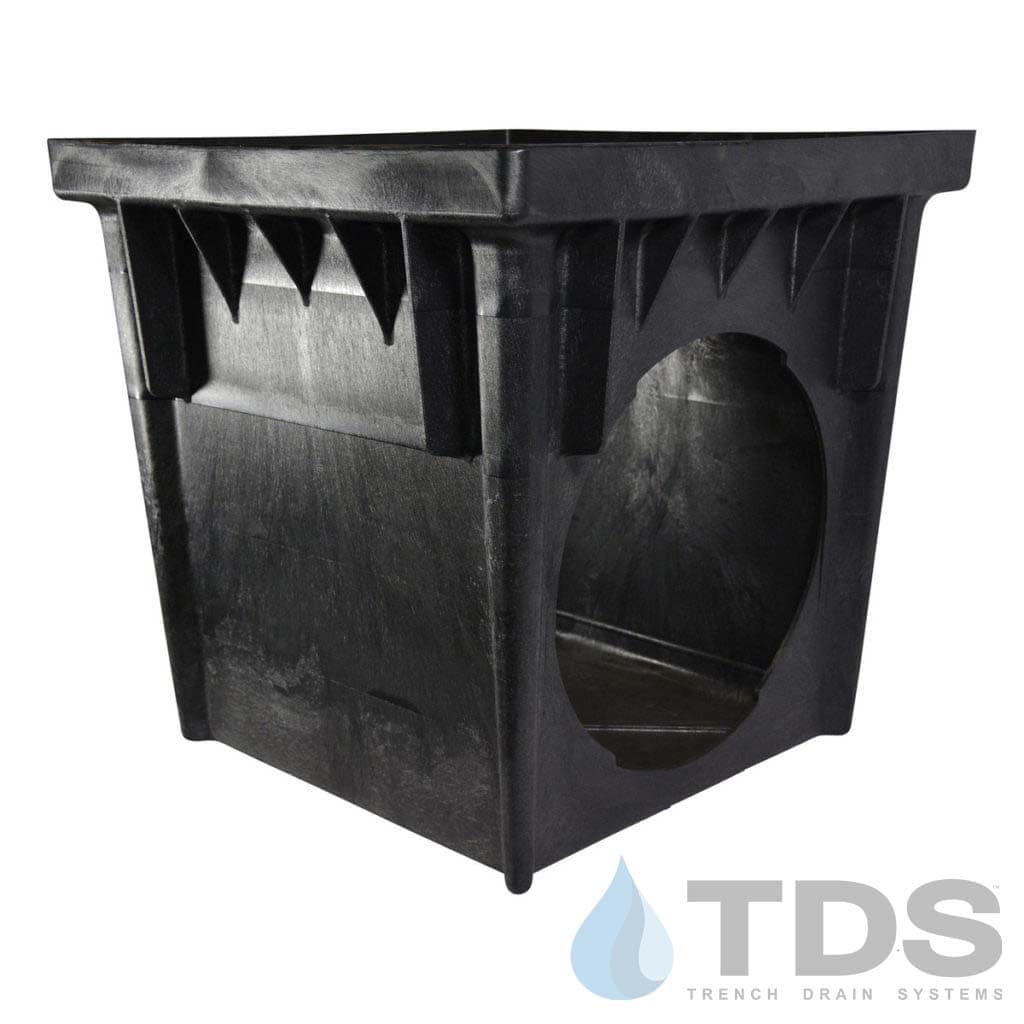

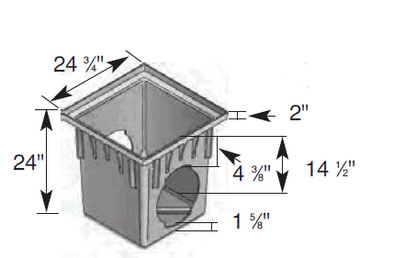

The NDS 24 in. Catch Basin Kit has 2-Openings and is constructed of UV-resistant polypropylene. This product is fade resistant, rust resistant, and lightweight.  The sump area collects debris and helps prevent clogged pipes. Used to catch and divert water to water safe areas away from structures, erosion-prone landscapes and poor drainage areas. Residential and commercial applications to collect excess surface water from lawn, landscape, residential driveways and garages. Suitable for light vehicular traffic, landscape and hardscape applications when properly installed.

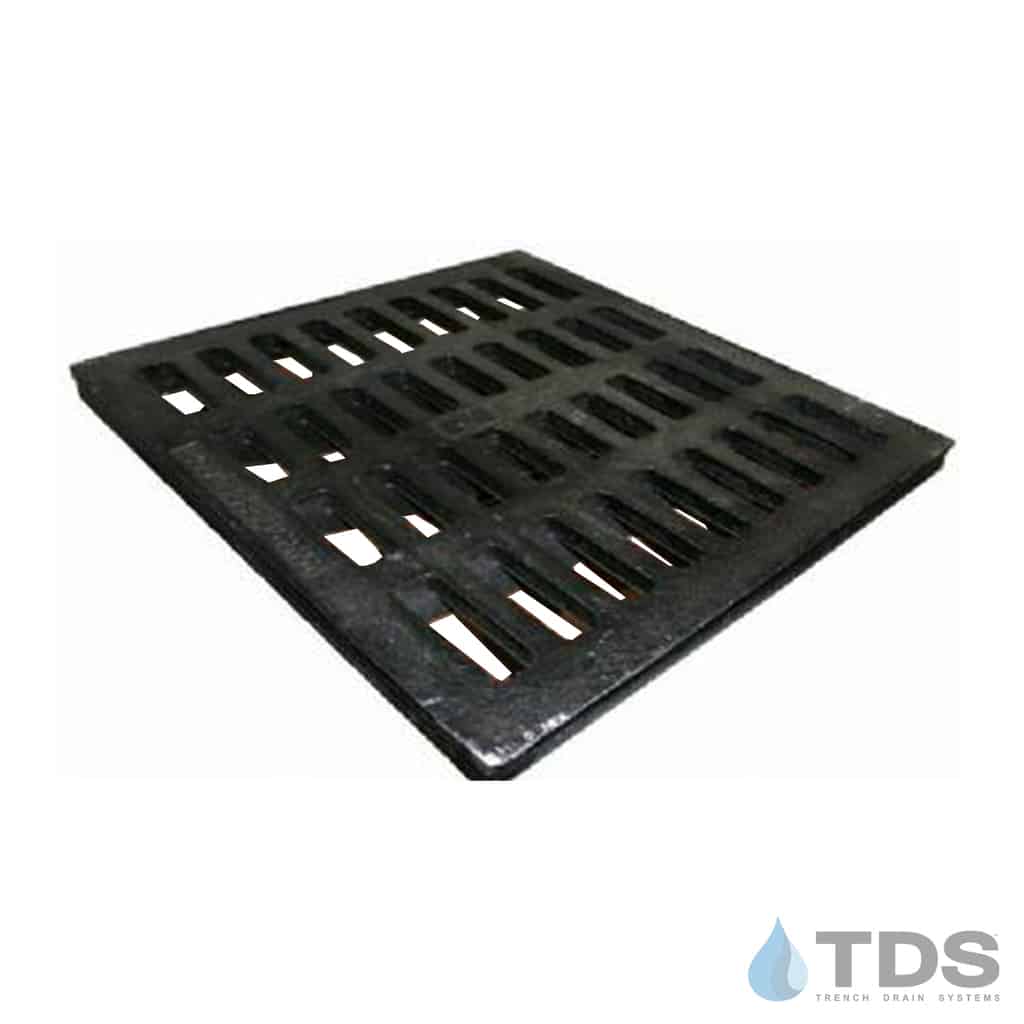

NDS2413 Black Cast Iron Grate Information:
Grate Opening: 1"
Grate Actual Measurements: 23-7/8" L x 23-7/8" W x 2" H
Open Surface Area: 197 Sq Inches
H-20 Loading, Load Class C

Want to learn more about this system?  Click Here for more information.
