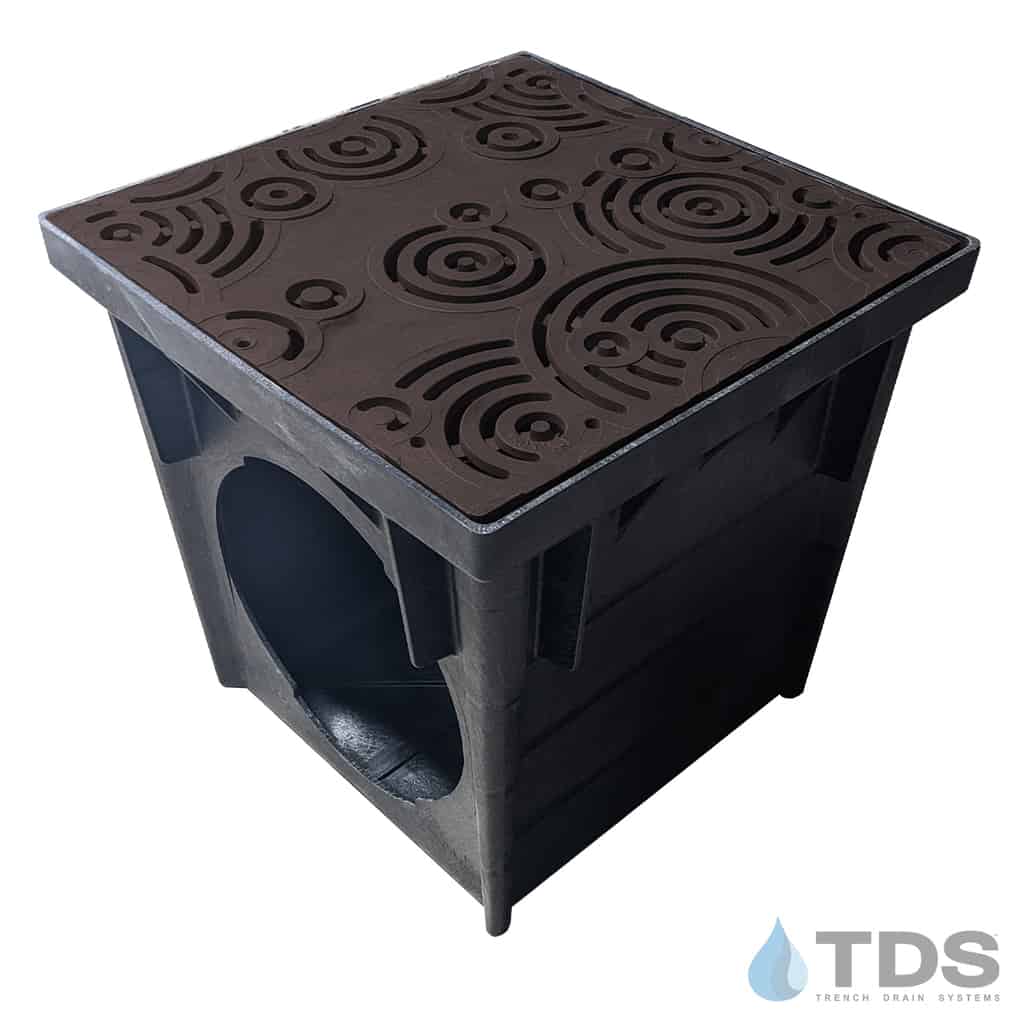

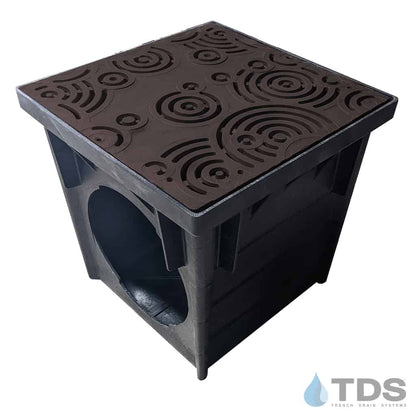

NDS 24" Catch Basin Kit with Iron Age Oblio Grate | Baked on Oil Finish

Grate Width: 24.0" x 24.0" for NDS 2400 Series

Grate Thickness: 2.00"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: NDS and Iron Age Designs

System: 2400 Series

Grate Load Class: Class B

Grate Pattern: OBLIO

Grate Pattern Style: GEOMETRIC

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Food Processing, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

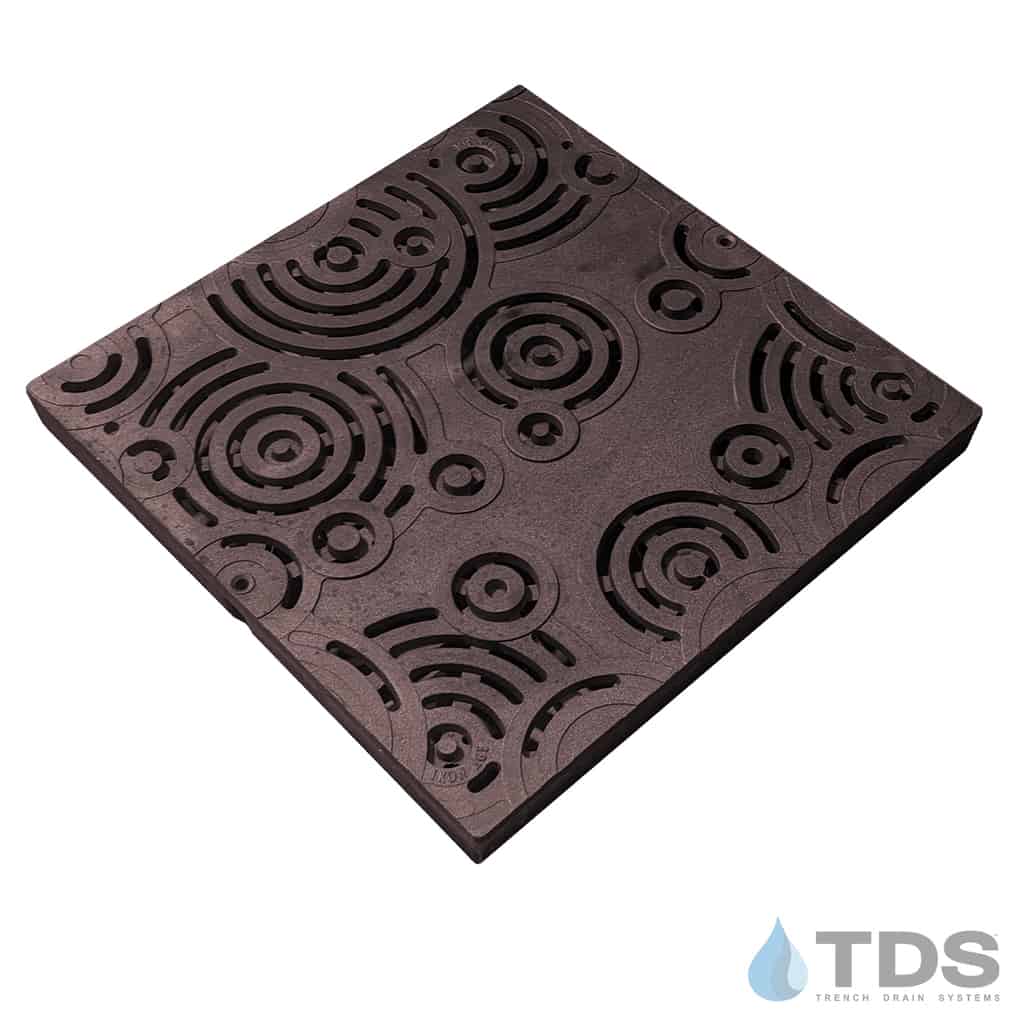

Iron Age Grate ON24-24I14

See description for complete kit options

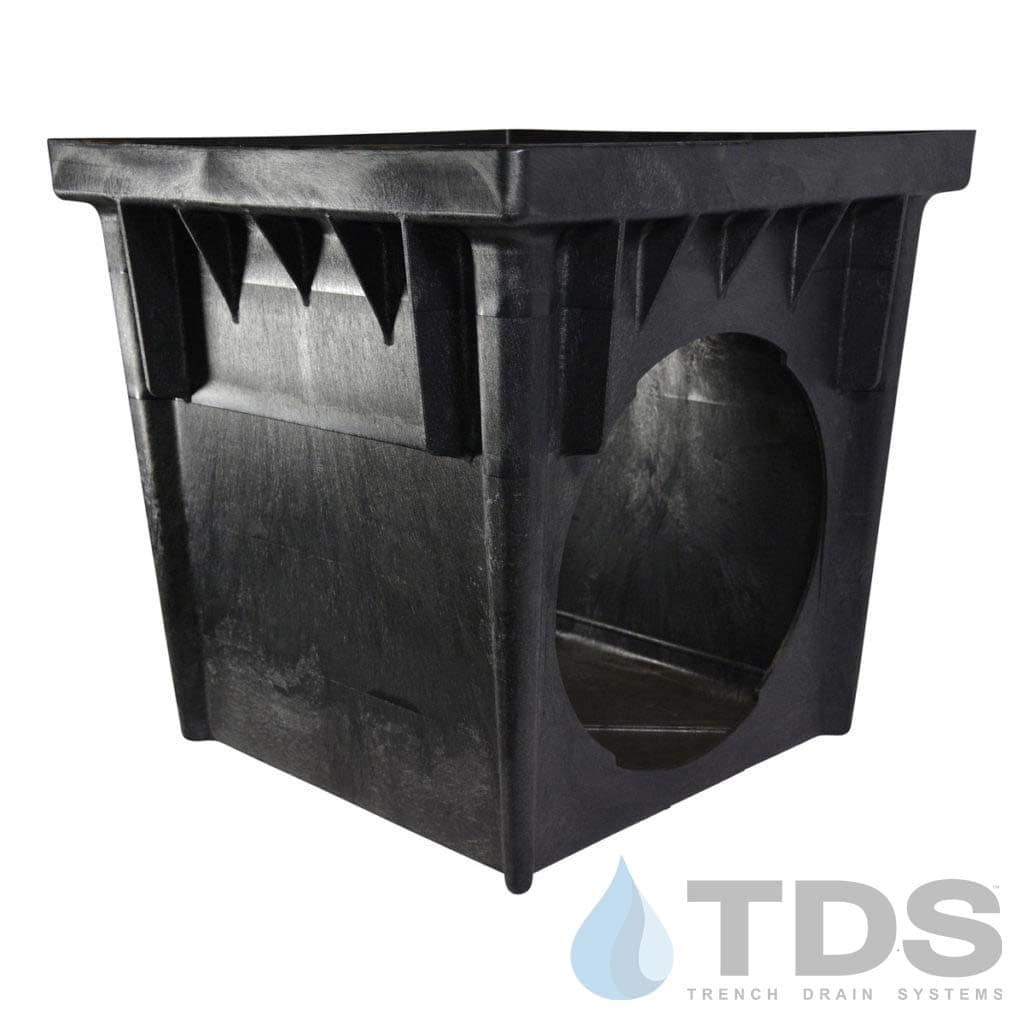

The NDS 24 in. Catch Basin Kit has 2-Openings and is constructed of UV-resistant polypropylene. This product is fade-resistant, rust-resistant, and lightweight.  The sump area collects debris and helps prevent clogged pipes. Used to catch and divert water to water-safe areas away from structures, erosion-prone landscapes, and poor drainage areas. Residential and commercial applications to collect excess surface water from the lawn, landscape, residential driveways, and garages. Suitable for light vehicular traffic, landscape, and hardscape applications when properly installed.

Specification Sheet for 24"x24" Oblio Grate

Want to learn more about this system?  Click Here for more information.
