NDS 1830 Low Profile Catch Basin 18" x 18"

Grate Width: 18.0" x 18.0" for NDS 1800 Series

Grate Thickness: 1.00"

Grate Material / Color / Finish:

Manufacturer: NDS

System: 1800 Series

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

Low Profile Catch Basin from NDS®.
Large project? Request a Quote

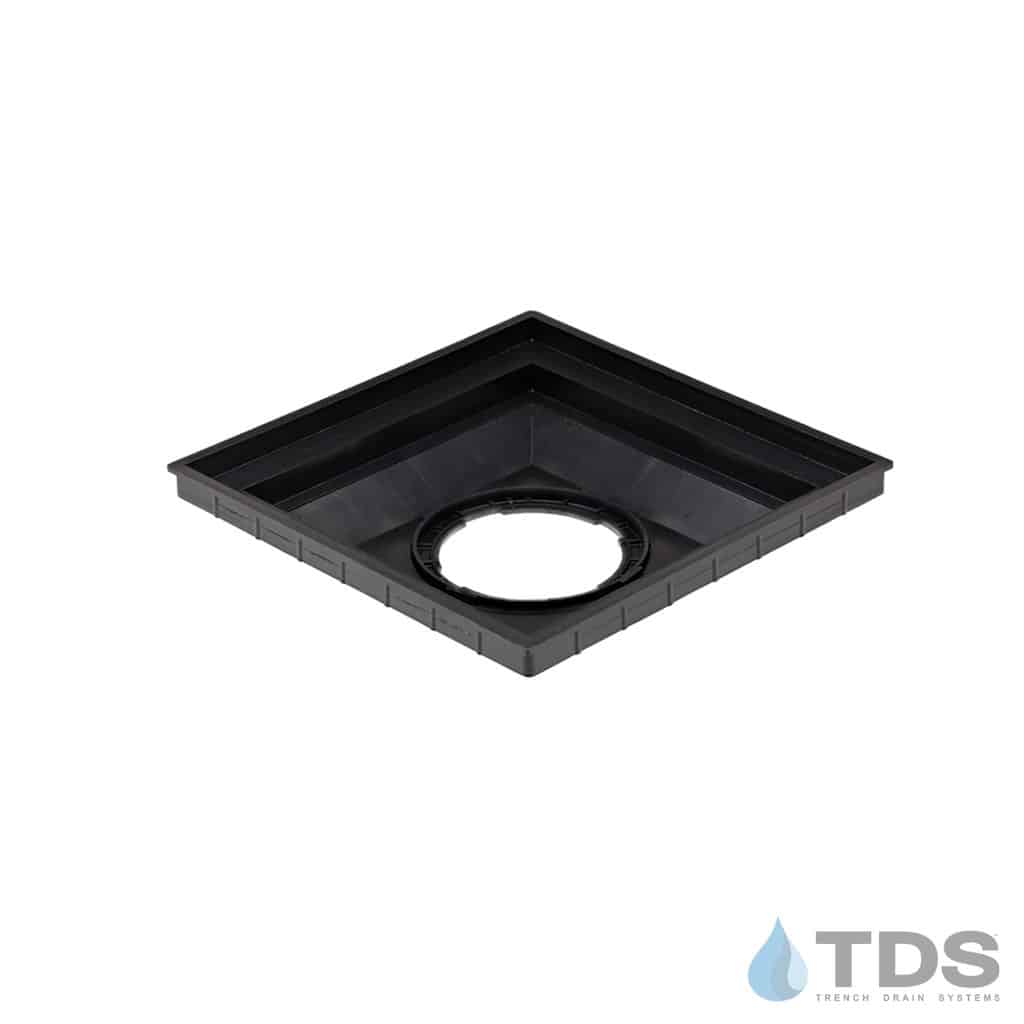

The NDS 1830 Low Profile Catch Basin 18" x 18" is ideal for drainage in the yard or areas that need point drains. This system helps to collect the surface water while avoiding large debris from entering. With a bottom outlet (reducer ring NDS1890 included), an additional adapter will be needed for either a 3″/4″ pipe outlet (NDS1243) or a 6″ pipe outlet (NDS1266) to connect to your existing pipe.

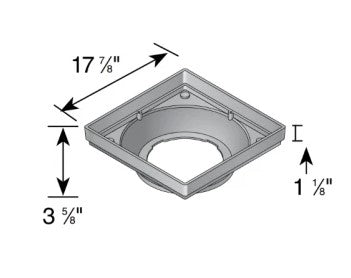

Actual Dimensions: 17-7/8" L x 1-1/8" W x 3-5/8" H
