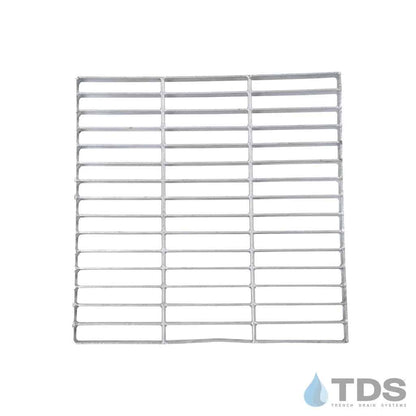

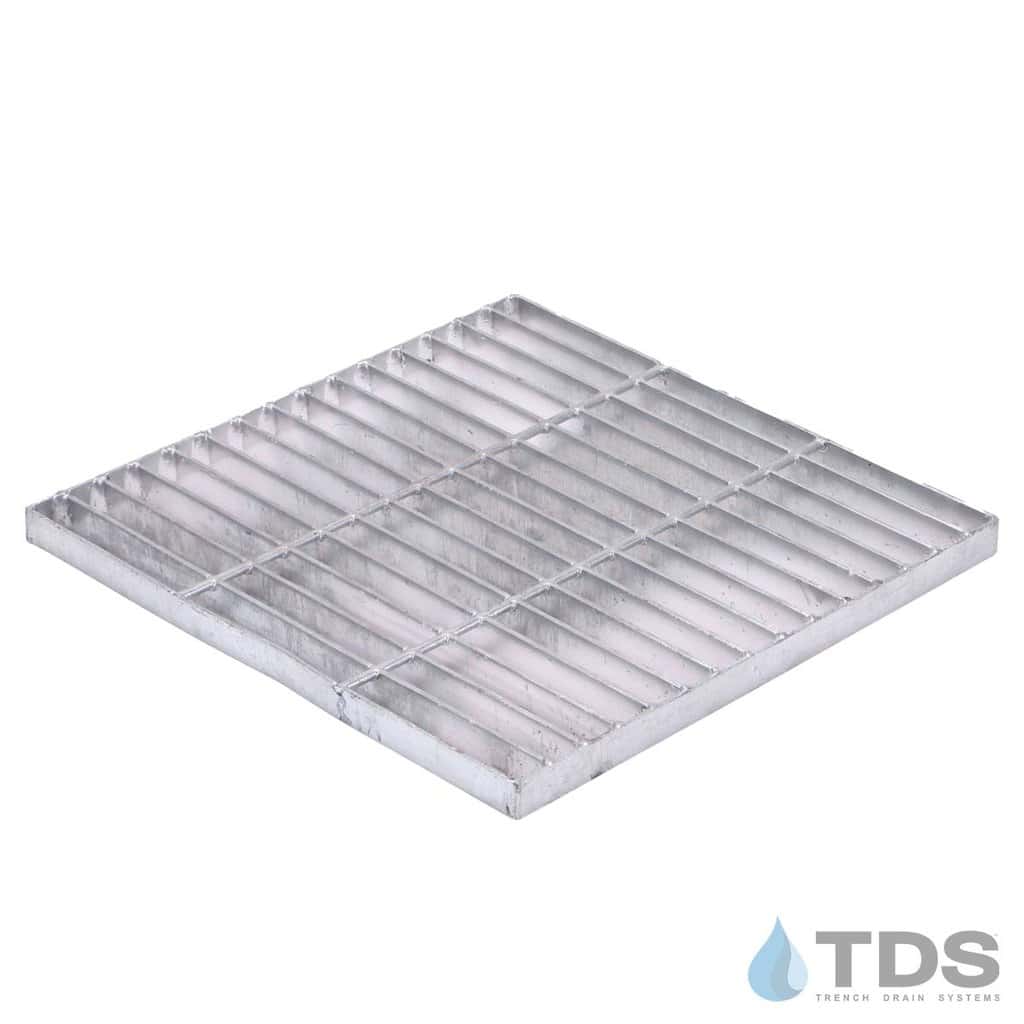

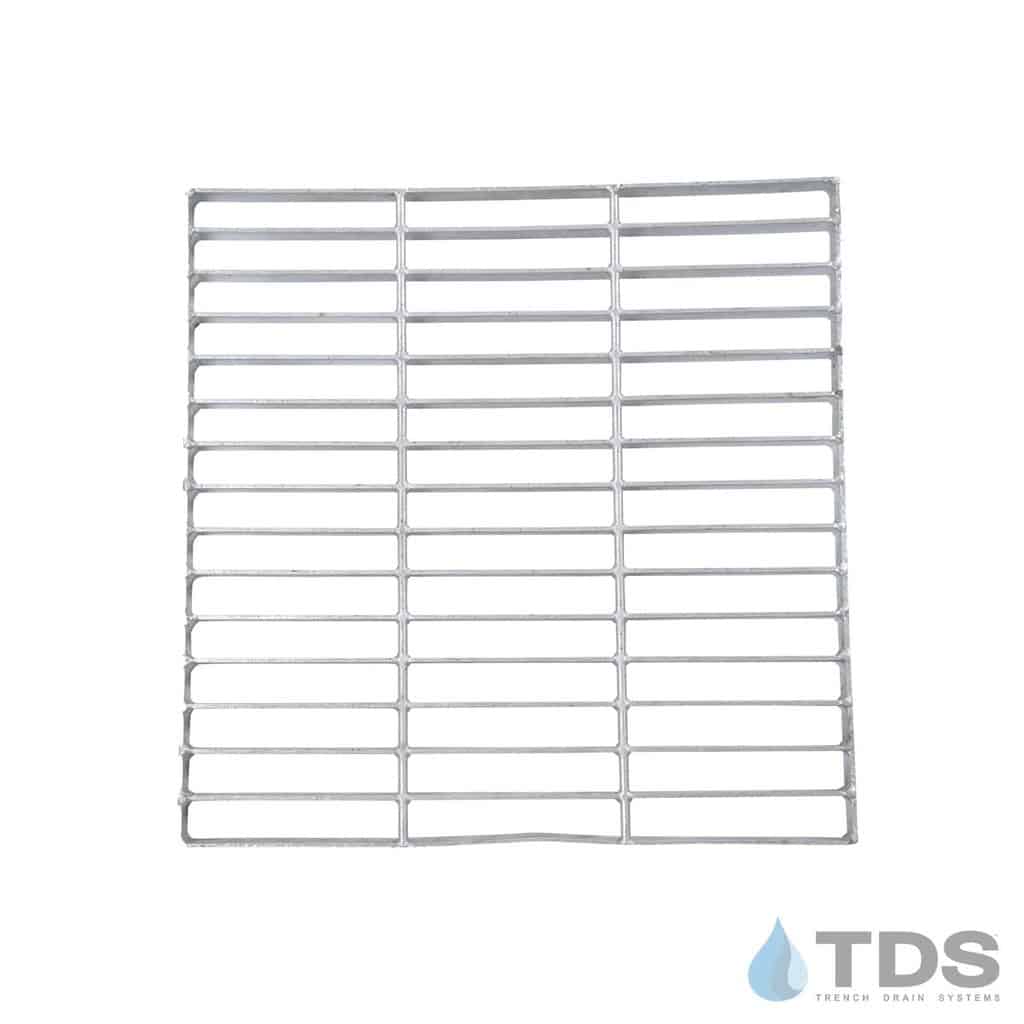

NDS 1815 Class C 18" Galvanized Grate

Grate Width: 18.0" x 18.0" for NDS 1800 Series

Grate Thickness: 1.00"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: NDS

System: 1800 Series

Grate Load Class: Class C

Grate Pattern: BAR

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

Galvanized steel bar catch basin grates from NDS®. Class C load rated.
Large project? Request a Quote

The square galvanized steel grate from NDS® is ideal for yard drains to collect surface water and minimize the amount of debris that enters the system. This rust- and corrosion-resistant galvanized steel grate can be used with the 18-inch NDS catch basin, riser, or low-profile adapter to drain heavy flows of excess stormwater from driveways, parking lots, and landscaped areas.

Actual Dimensions: 16 3/4" x 16 3/4" x 1"

Load Class C (when properly installed)

Capacity: 381 GPM (Gallons per Minute)

Open Surface Area: 291.00 square inches

Grate Openings: 1"
