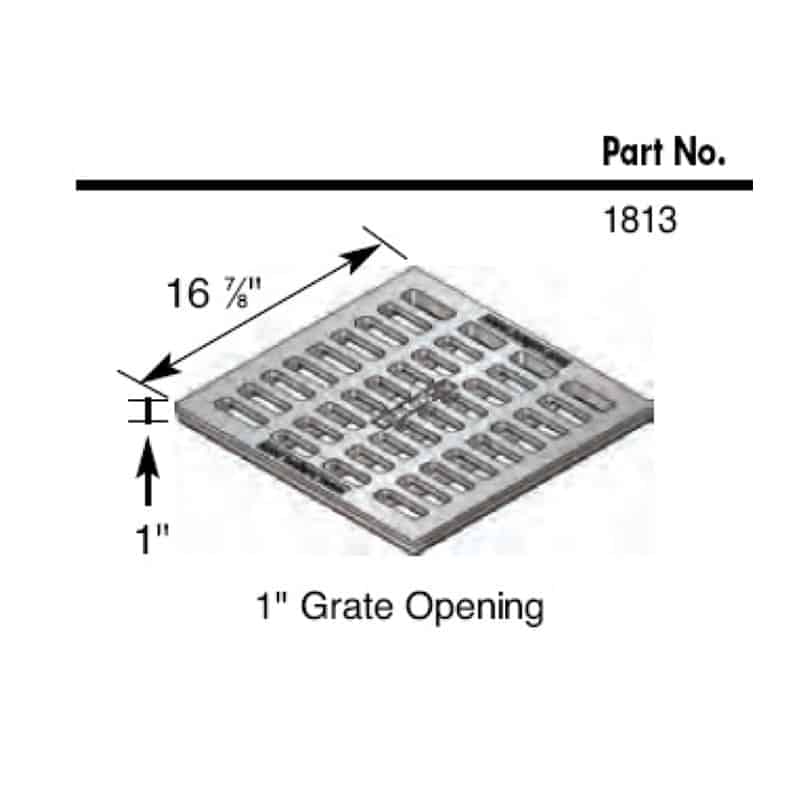

NDS 1813 Class C Slotted Cast Iron 18" x 18" Grate

Grate Width: 18.0" x 18.0" for NDS 1800 Series

Grate Thickness: 1.00"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: NDS

System: 1800 Series

Grate Load Class: Class C

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

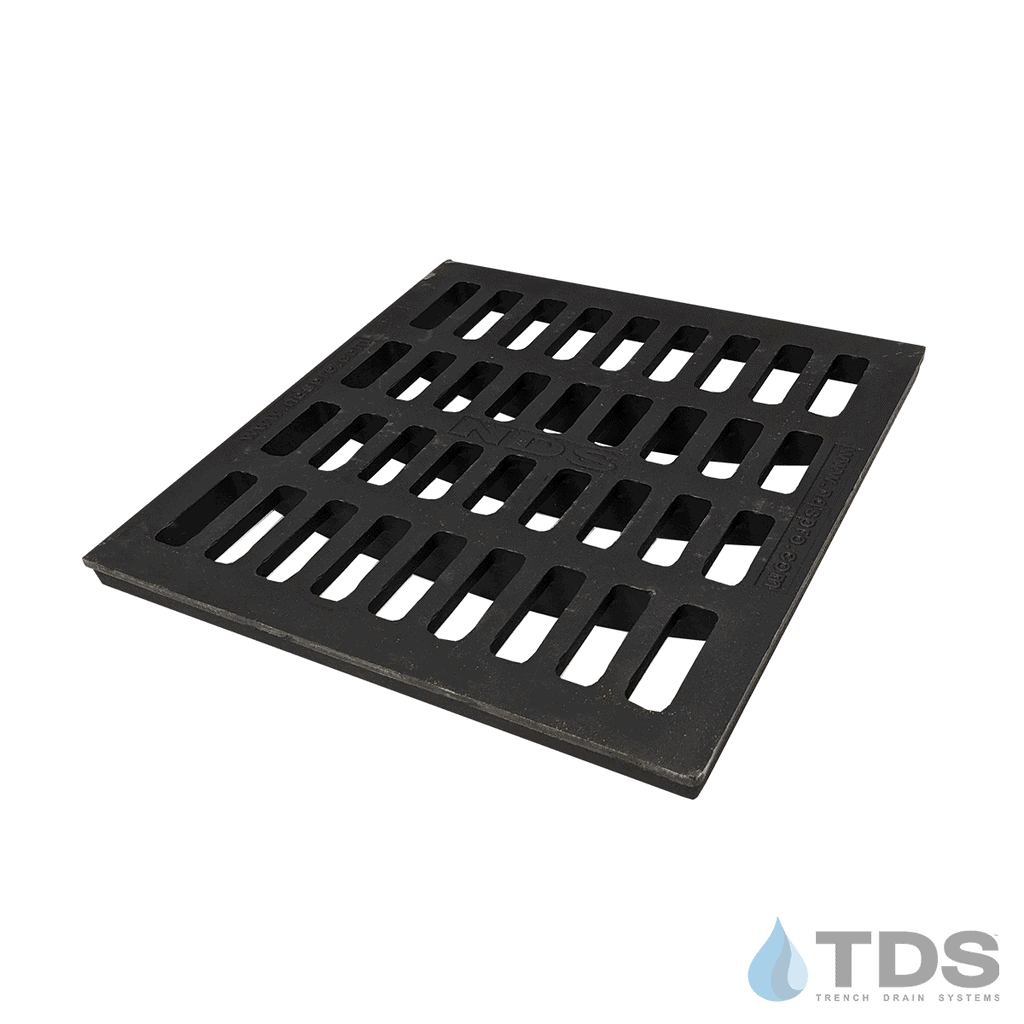

Cast Iron slotted catch basin grates from NDS®.
Large project? Request a Quote

Cast ductile iron grates from NDS® with a Class C load rating. Can be used in heavy low speed traffic situations.

Grates are designed to fit the NDS® 1800 Series catch basins and others.
