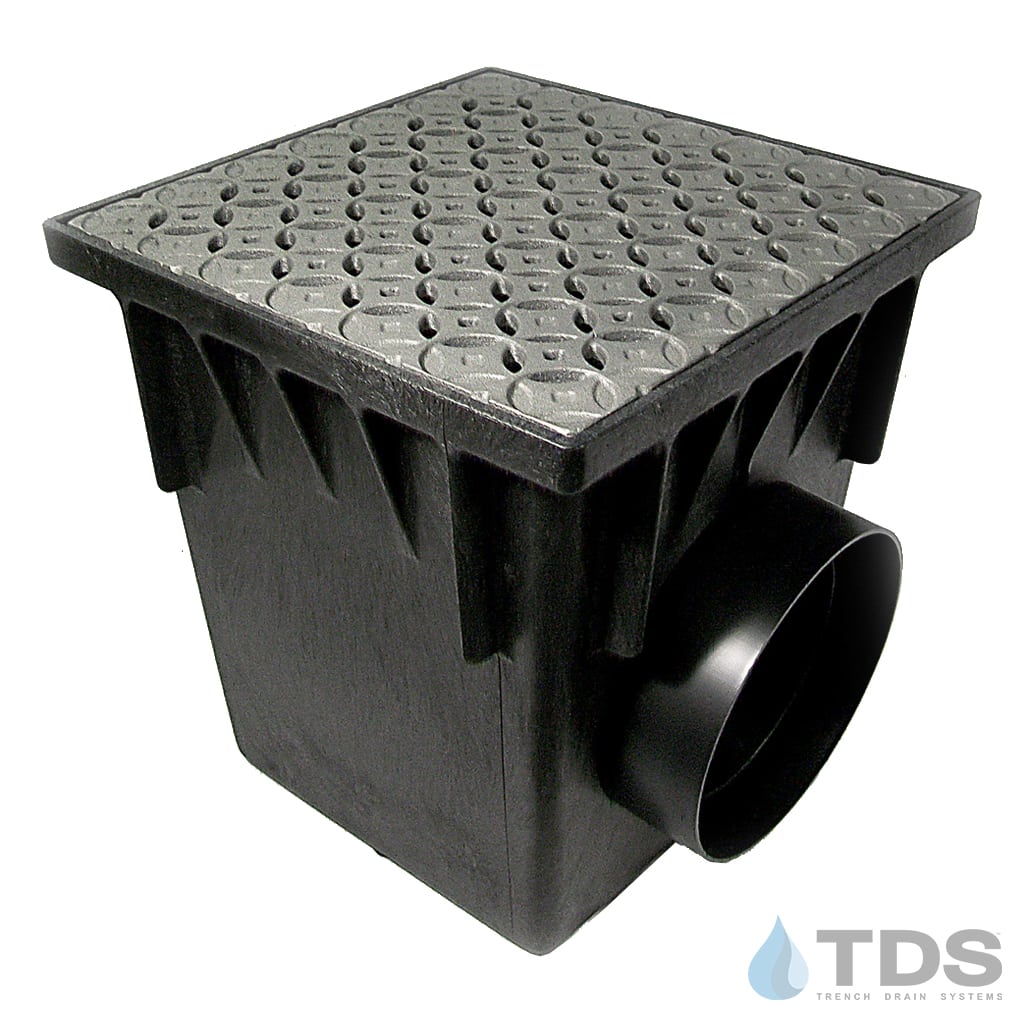

NDS 18" Catch Basin Kit with Iron Age Interlaken Grate | Natural

Grate Width: 18.0" x 18.0" for NDS 1800 Series

Grate Thickness: 1.00"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: NDS and Iron Age Designs

System: 1800 Series

Grate Load Class: Class B

Grate Pattern: INTERLAKEN

Grate Pattern Style: GEOMETRIC

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

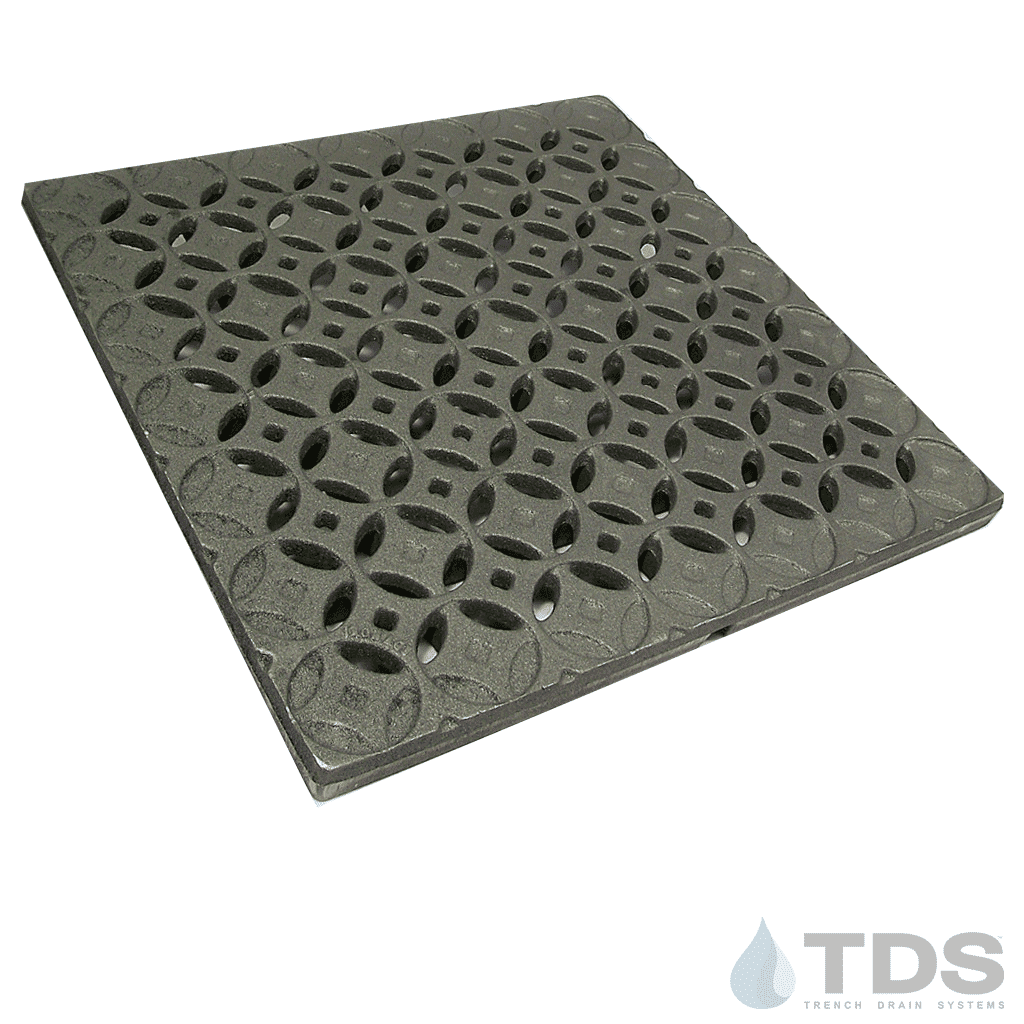

Iron Age grate: IN18-18I13

See description for complete kit options

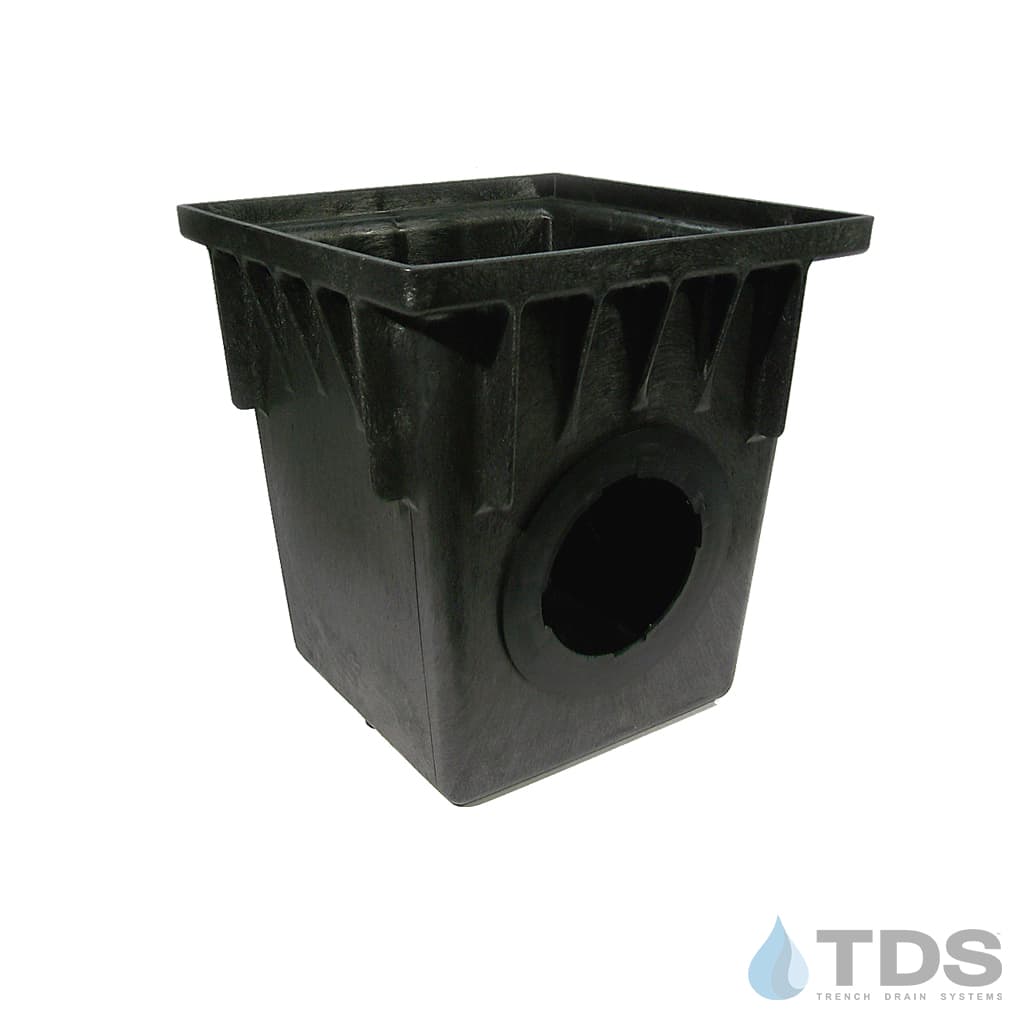

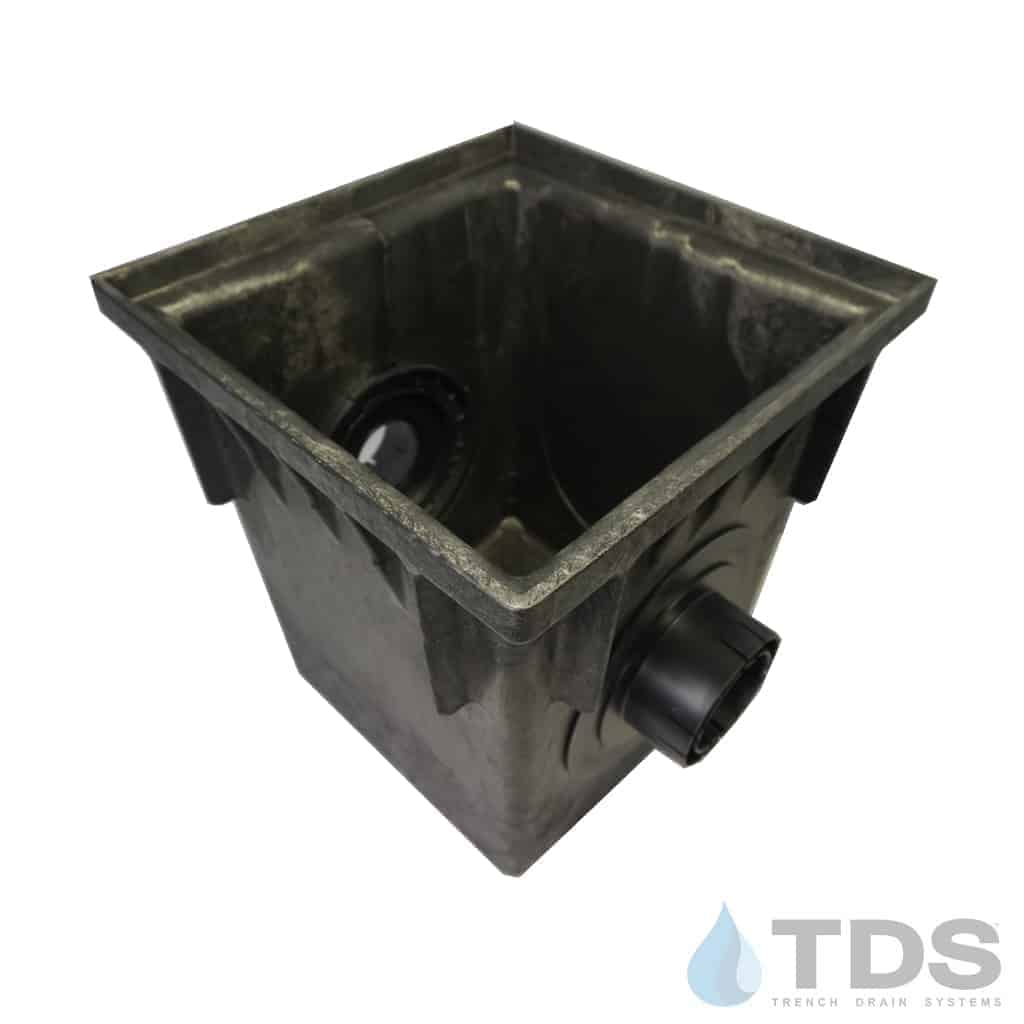

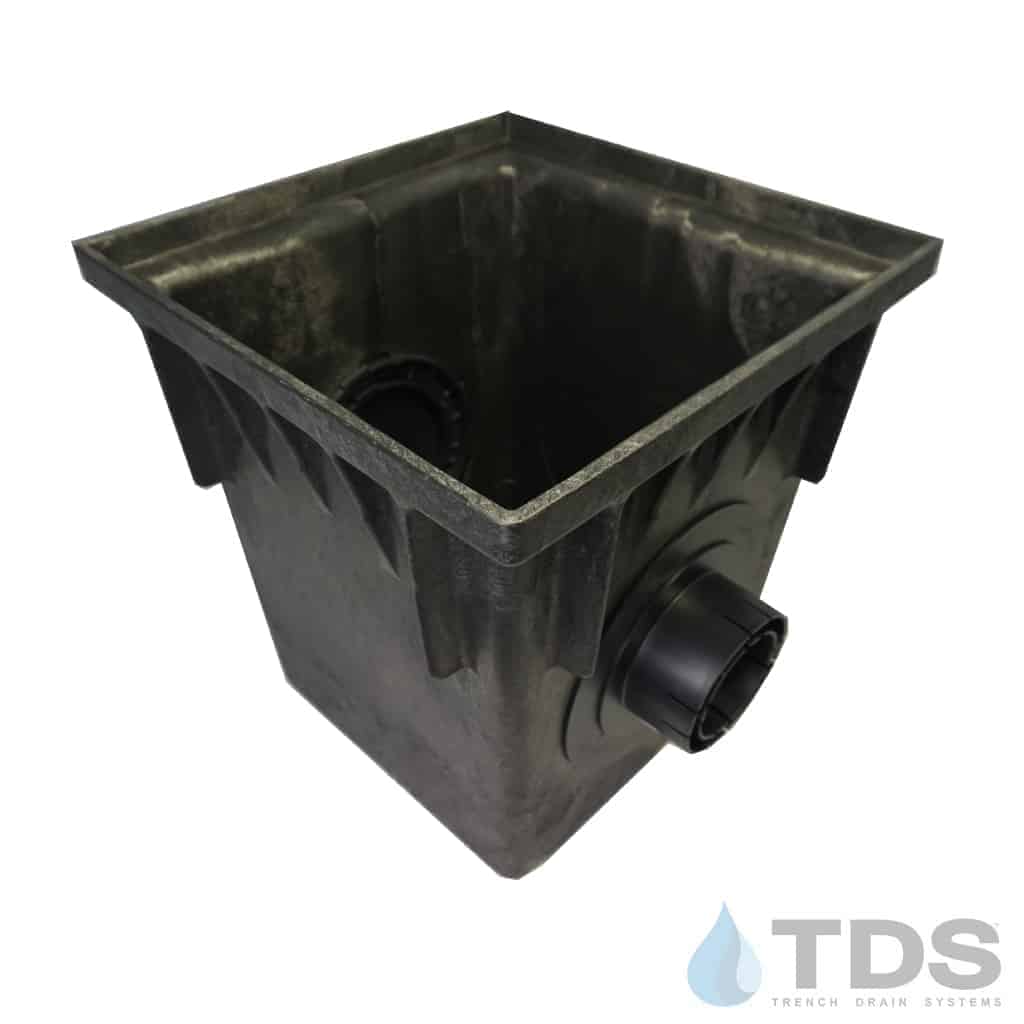

The NDS 18 in. Catch Basin Kit has 2-Openings and is constructed of UV-resistant polypropylene. A maximum working pressure of 5 psi.  This product is fade resistant, rust resistant, and lightweight.  The sump area collects debris and helps prevent clogged pipes. Used to catch and divert water to water safe areas away from structures, erosion-prone landscapes and poor drainage areas. Residential and commercial applications to collect excess surface water from lawn, landscape, residential driveways and garages. Suitable for light vehicular traffic, landscape and hardscape applications when properly installed.

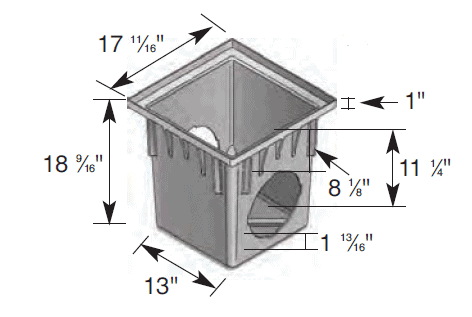

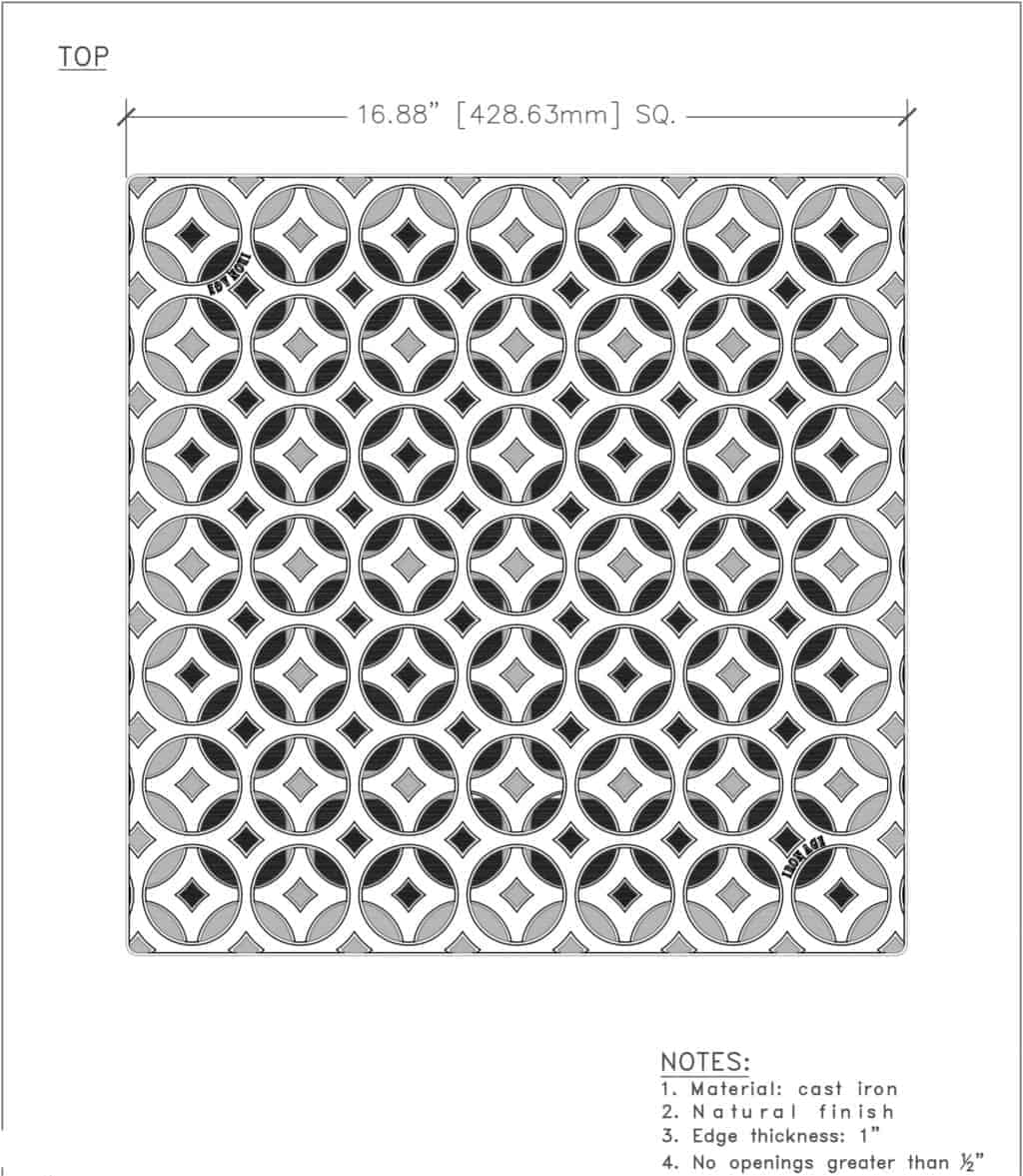

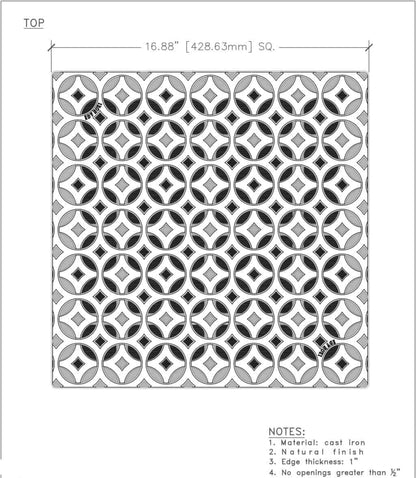

Grate Specification Sheet
