NDS 1215 Class C HD Bar Galvanized 12" x 12" Grate

Grate Width: 12.0" x 12.0" for NDS 1200 Series

Grate Thickness: 1.125"

Grate Material / Color / Finish: Galvanized Steel

Manufacturer: NDS

System: 1200 Series

Grate Load Class: Class C

Grate Pattern: BAR

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

Galvanized steel bar catch basin grates from NDS®. Class C load rated.
Large project? Request a Quote

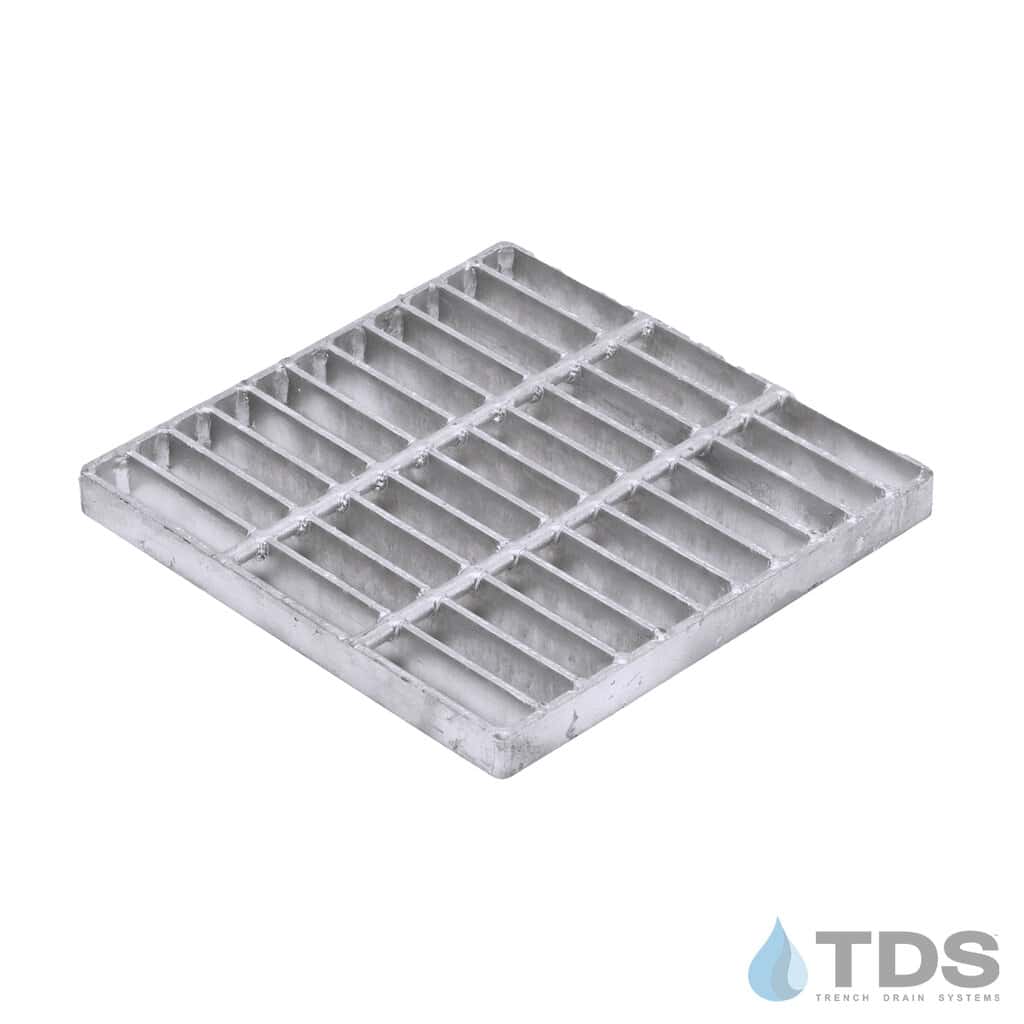

The square galvanized steel grate from NDS® is ideal for yard drains to collect surface water and minimize the amount of debris that enters the system. This rust and corrosion-resistant galvanized steel grate can be used with the 12-inch NDS catch basin, riser, or low-profile adapter to drain heavy flows of excess stormwater from driveways, parking lots, and landscaped areas.

Actual Dimensions: 11-5/8" x 11-5/8" x 1-1/8"

Load Class C (when properly installed)

Capacity: 348 GPM (Gallons per Minute)

Open Surface Area: 113.78 square inches

Grate Openings: 3/4"
