NDS 12" Catch Basin Kit with Iron Age Oblio Grate | Natural

NDS 12" Catch Basin Kit with Iron Age Oblio Grate | Natural

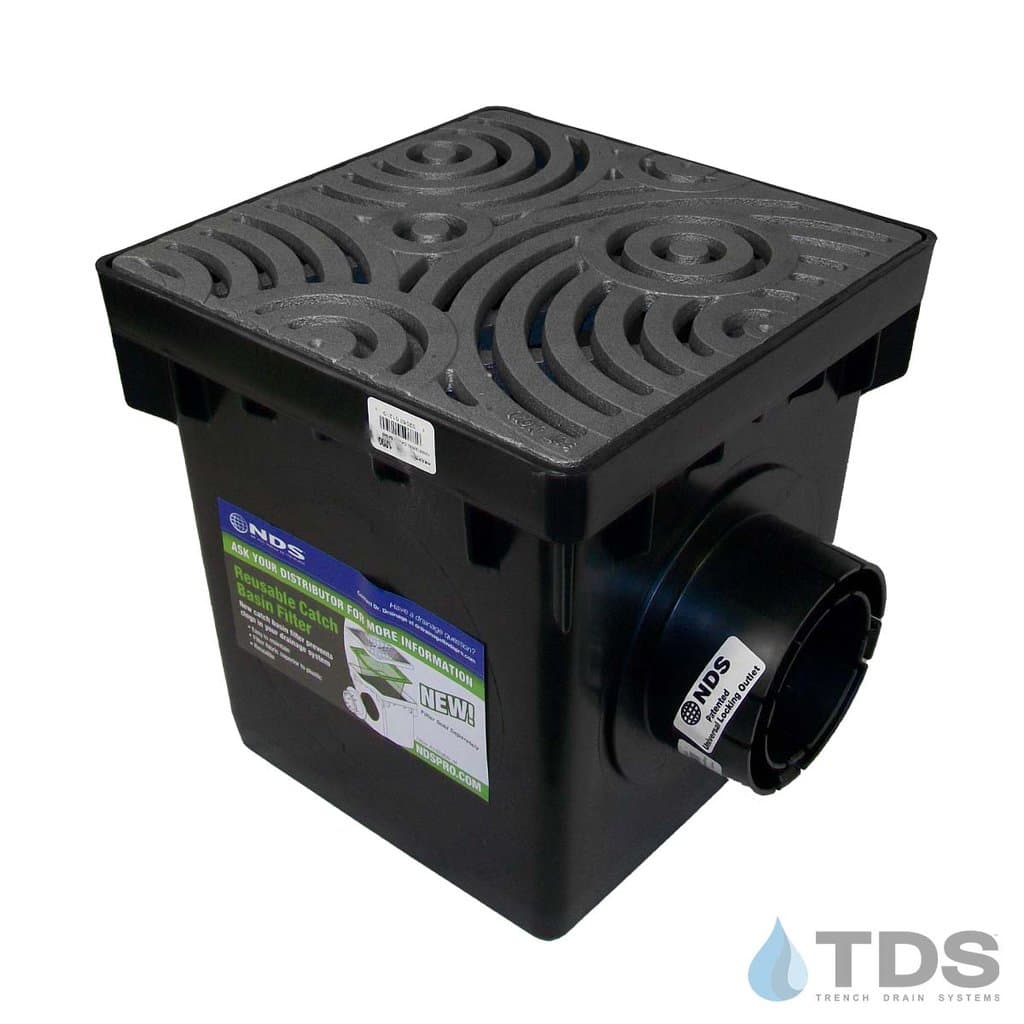

  • Ironage-12x12-Cast-Iron-Oblio-Grate-catch-basin-kit

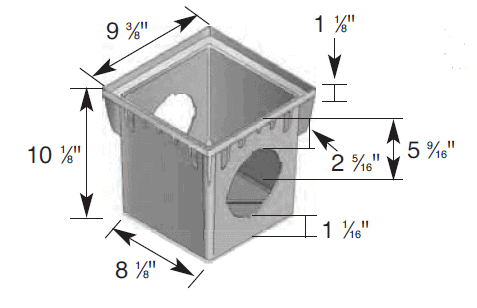

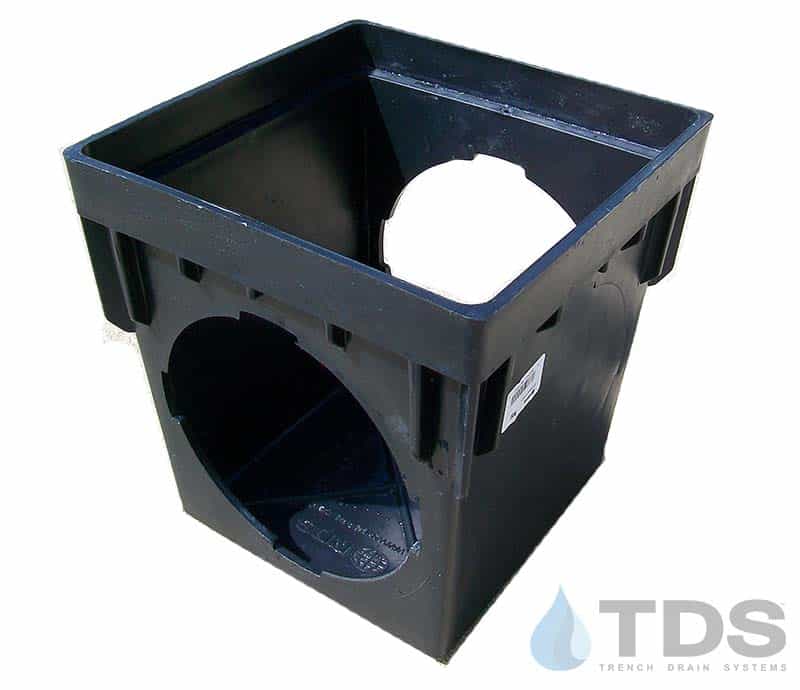

  • NDS900-catch-basin 9x9 NDS
  • NDS900 Catch Basin 9x9 NDS

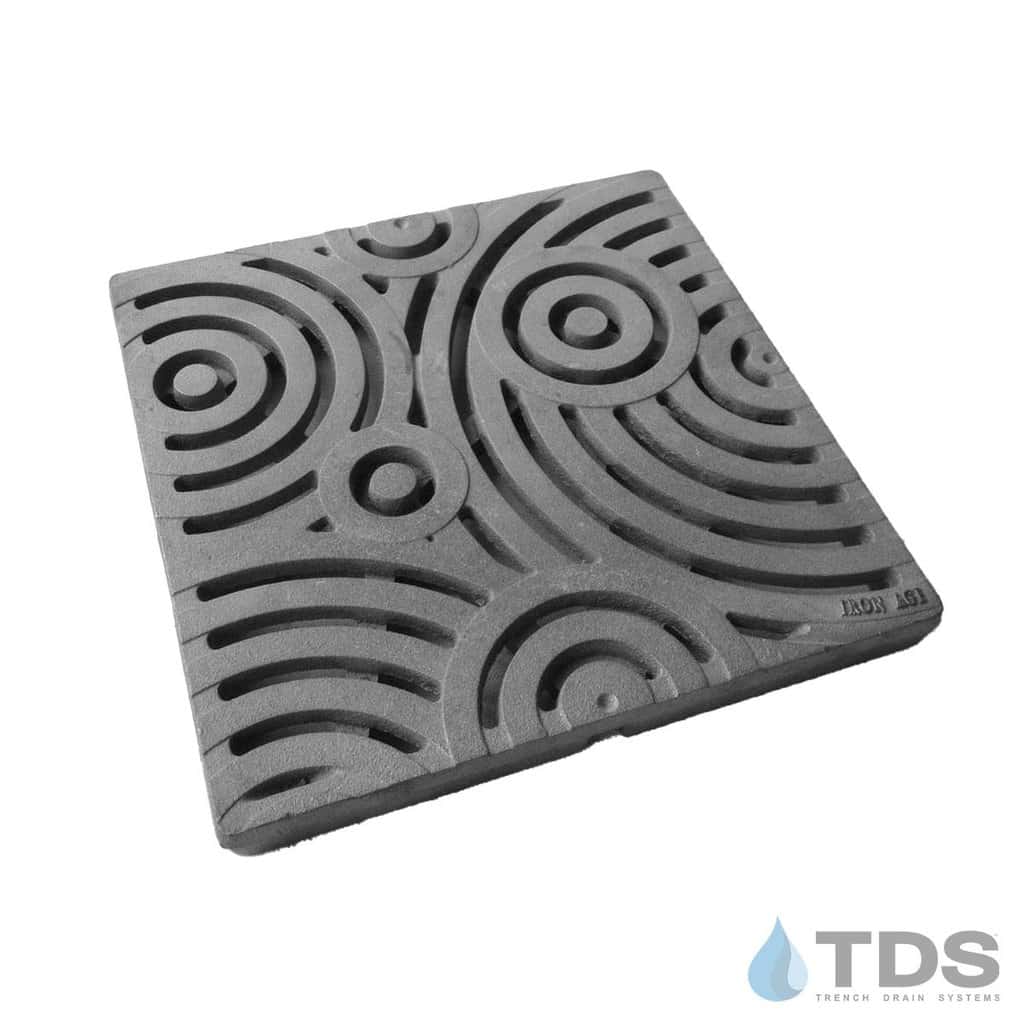

  • IA-OBLIO-CB12 Iron Age 12x12" Raw Cast Iron Oblio Grate
1 5

Drainage Kits

CBK1-12-IA-OBLIO-HP-34

Iron Age Grate ON12-12I12HP See description for complete kit options
$304.82 USD
$304.82 USD
Sale Sold out
Catch Basin Outlets
Outlet Size
View full details

PRODUCT DOCUMENTATION

  • ADDITIONAL INFORMATION

    Grate Width: 12.0" x 12.0" for NDS 1200 Series

    Grate Thickness: 1.125"

    Grate Material / Color / Finish: Ductile/Cast Iron - Raw

    Manufacturer: NDS and Iron Age Designs

    System: 1200 Series

    Grate Load Class: Class B

    Grate Pattern: OBLIO

    Grate Pattern Style: GEOMETRIC

    Channel Material: Plastic - (PP, HDPE, PE)

    Channel Frame / Edging: Frame - None and Edging - None

    Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

  • DESCRIPTION

    Iron Age Grate ON12-12I12HP

    See description for complete kit options

    NDS 12" x 12" Catch Basin Kit, a complete drainage assembly featuring a decorative cast iron grate in the heel proof circular Oblio pattern in a natural raw cast finish. Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown. The 12” catch basin kit stops leaves and silt from clogging your pipes by holding the debris in a reservoir. Available in 1, 2, 3 or 4 outlets and your choice of outlet size. You will need 2 outlets if the catch basin is added into an existing pipe run.

    Grate Specification Sheet

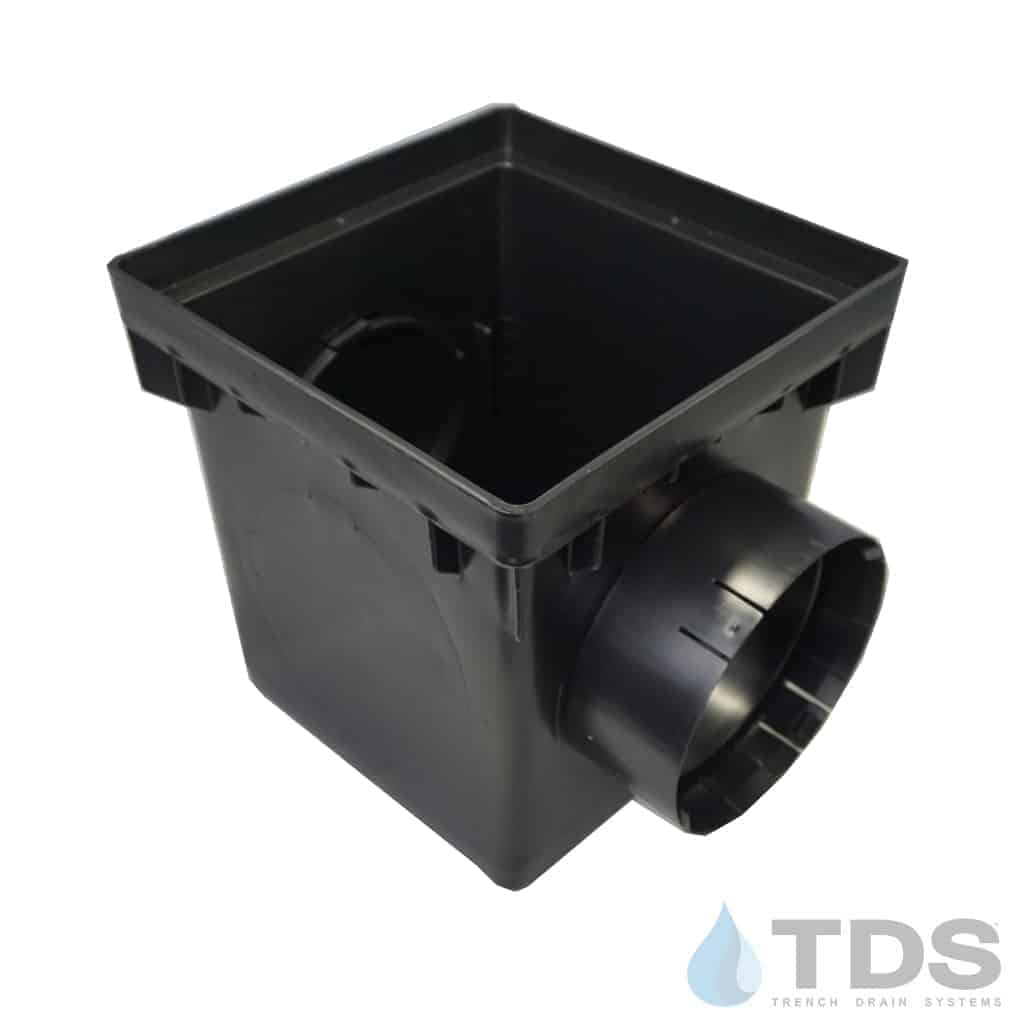

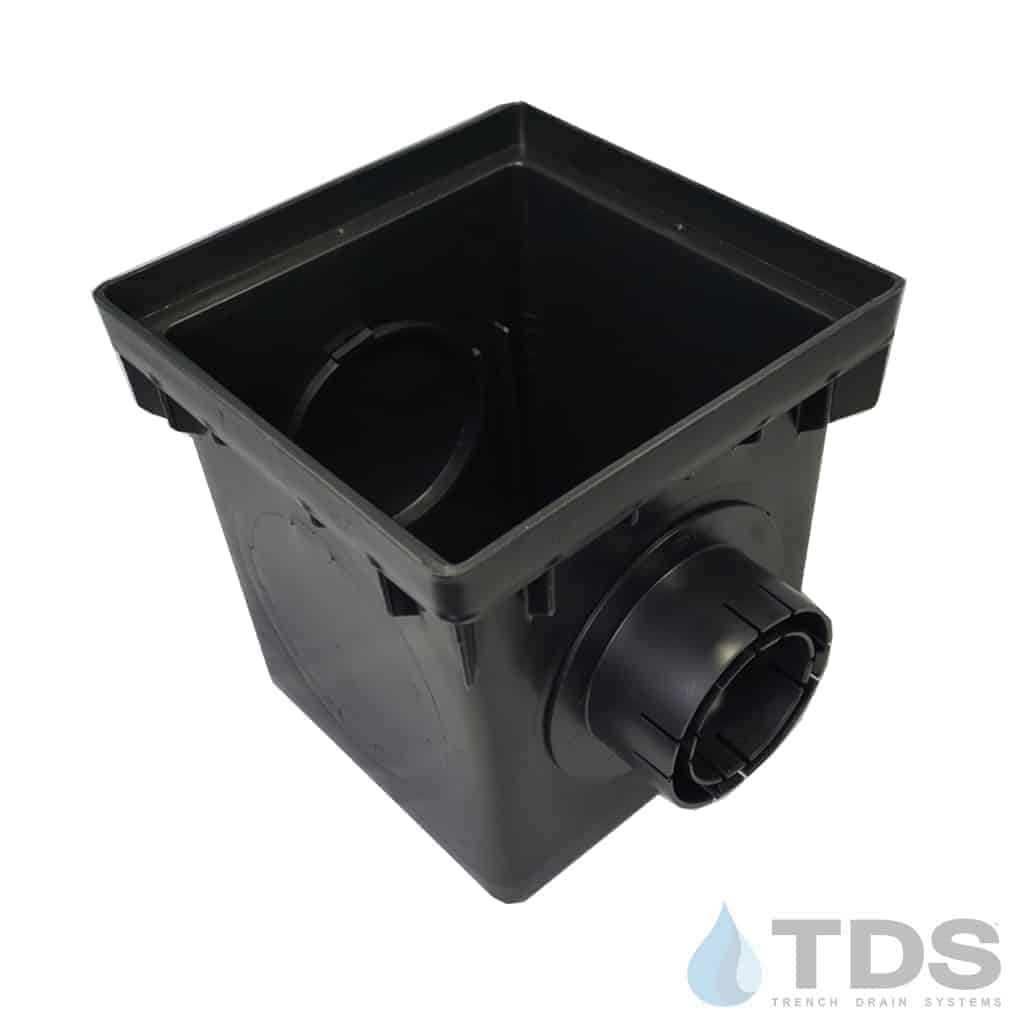

    Kits with 1 Outlet Include:

    (1) NDS 1200 Catch Basin
    (1) Grate IA-OBLIO-CB12
    (1) NDS 1206 Outlet Plug

    Choice of Pipe Adaptor size:
    (1) NDS 1243 for 3-4"  -or-
    (1) NDS 1266 for 6"

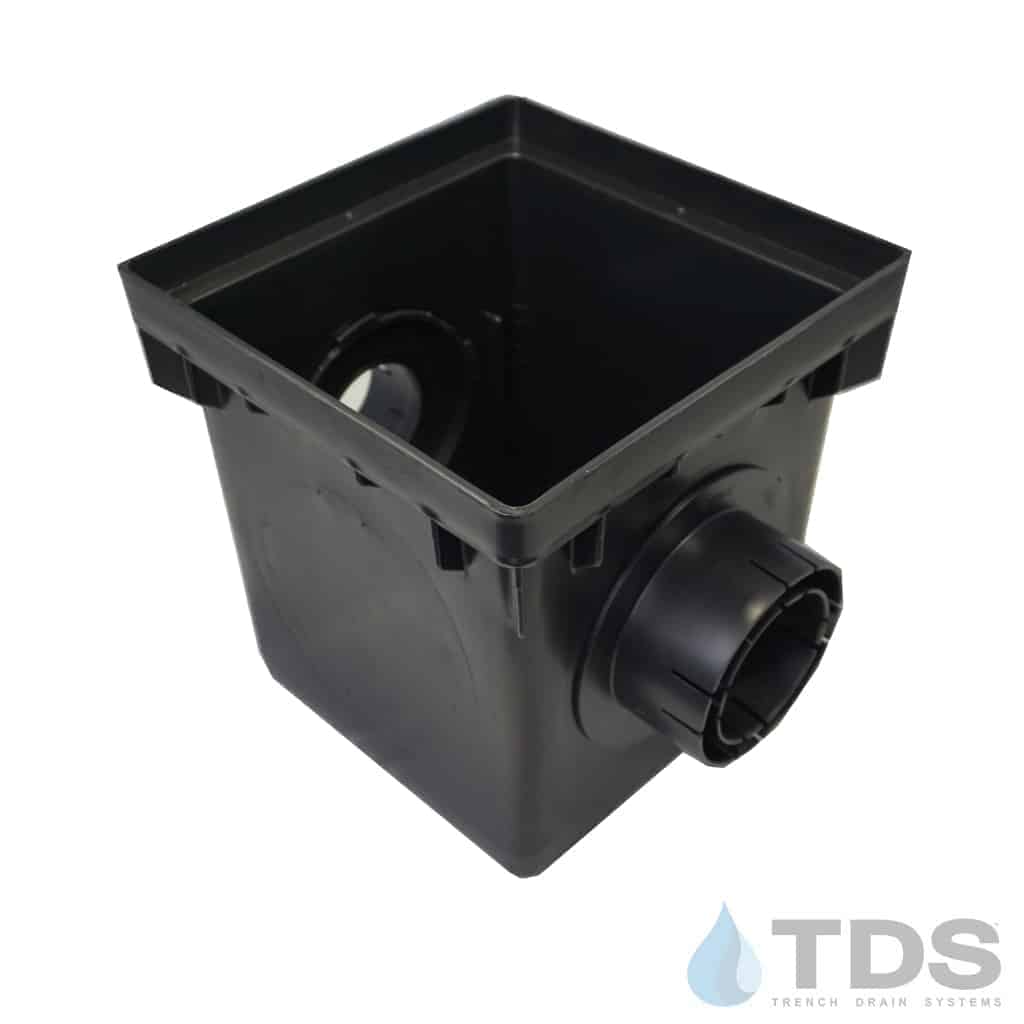

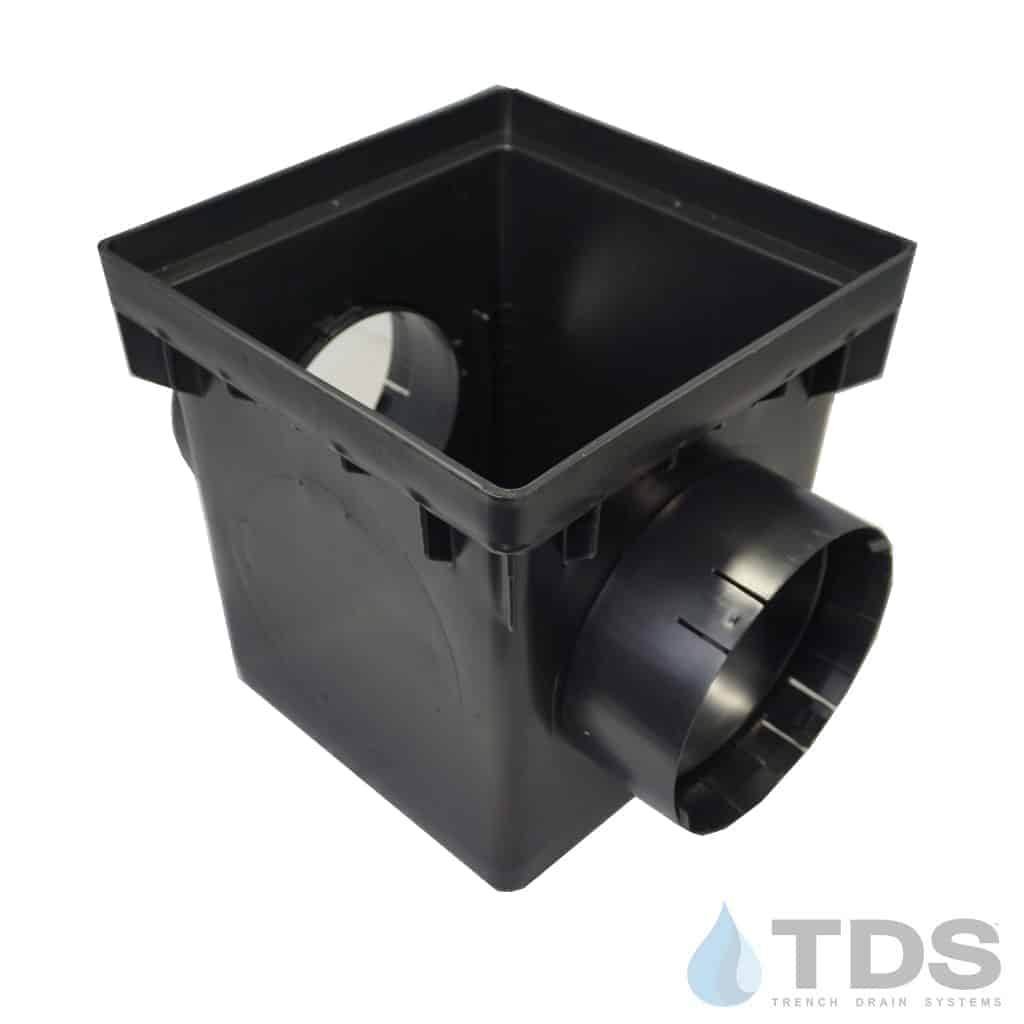

    		 Kits with 2 Outlets Include:

    (1) NDS 1200 Catch Basin
    (1) Grate IA-OBLIO-CB12

    Choice of Pipe Adaptor size:
    (2) NDS 1243 for 3-4"  -or-
    (2) NDS 1266 for 6"

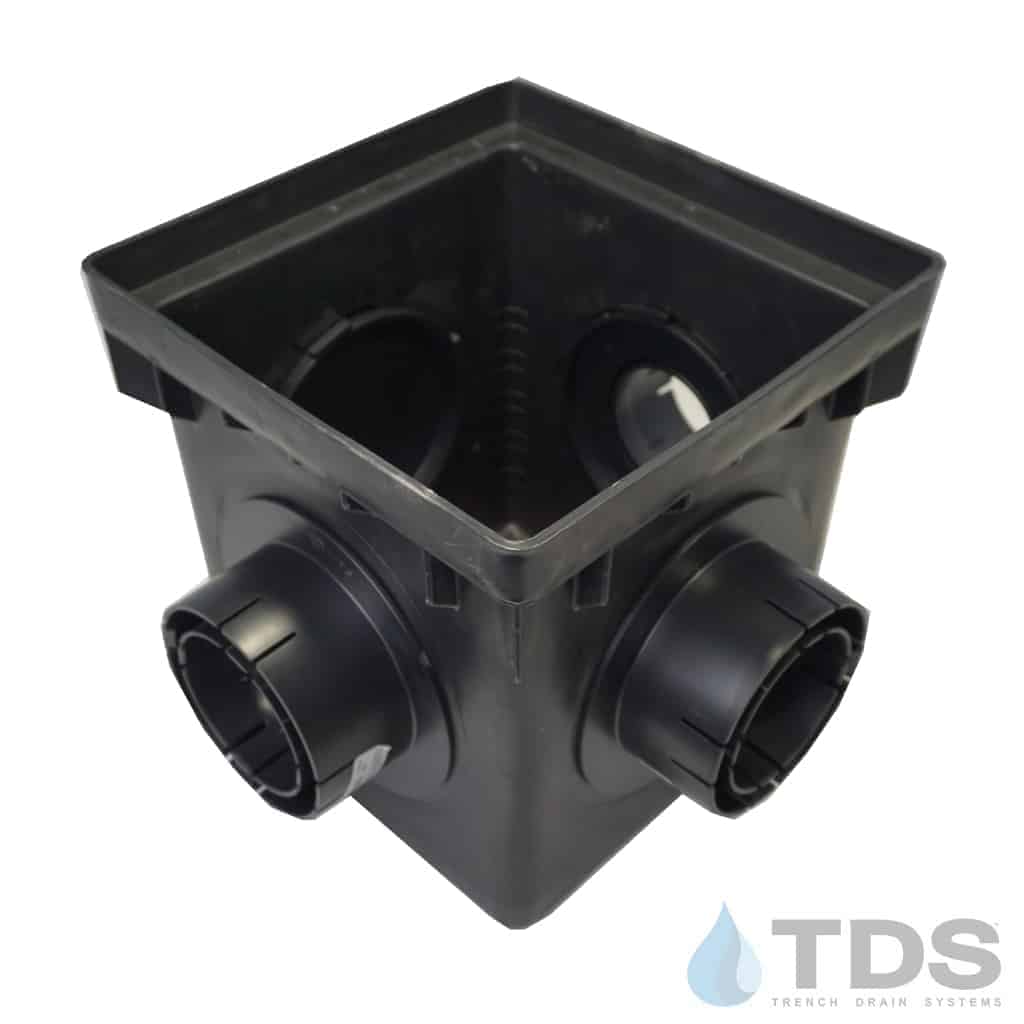

    Kits with 3 Outlets Include:

    (1) NDS 1230 Catch Basin
    (1) Grate IA-OBLIO-CB12
    (1) NDS 1206 Outlet Plug

    Choice of Pipe Adaptor size:
    (3) NDS 1243 for 3-4"  -or-
    (3) NDS 1266 for 6"

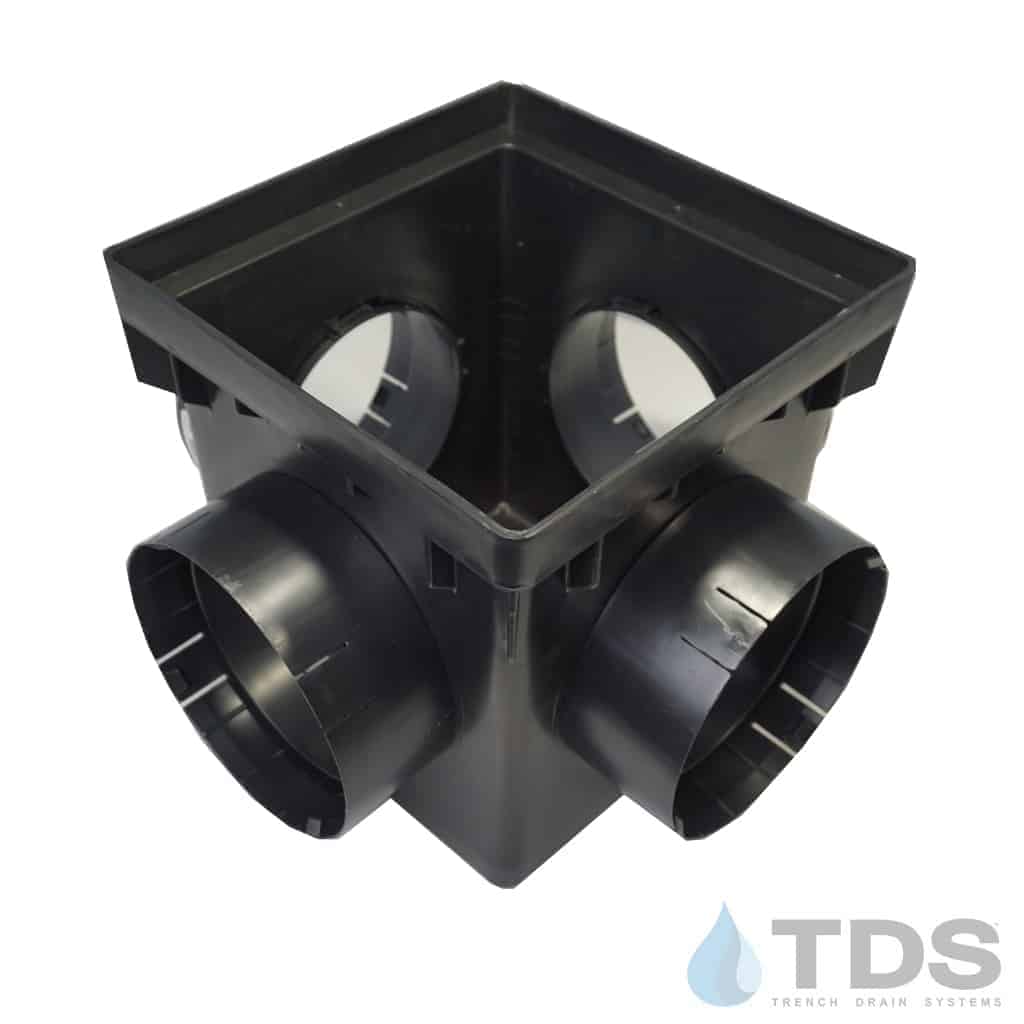

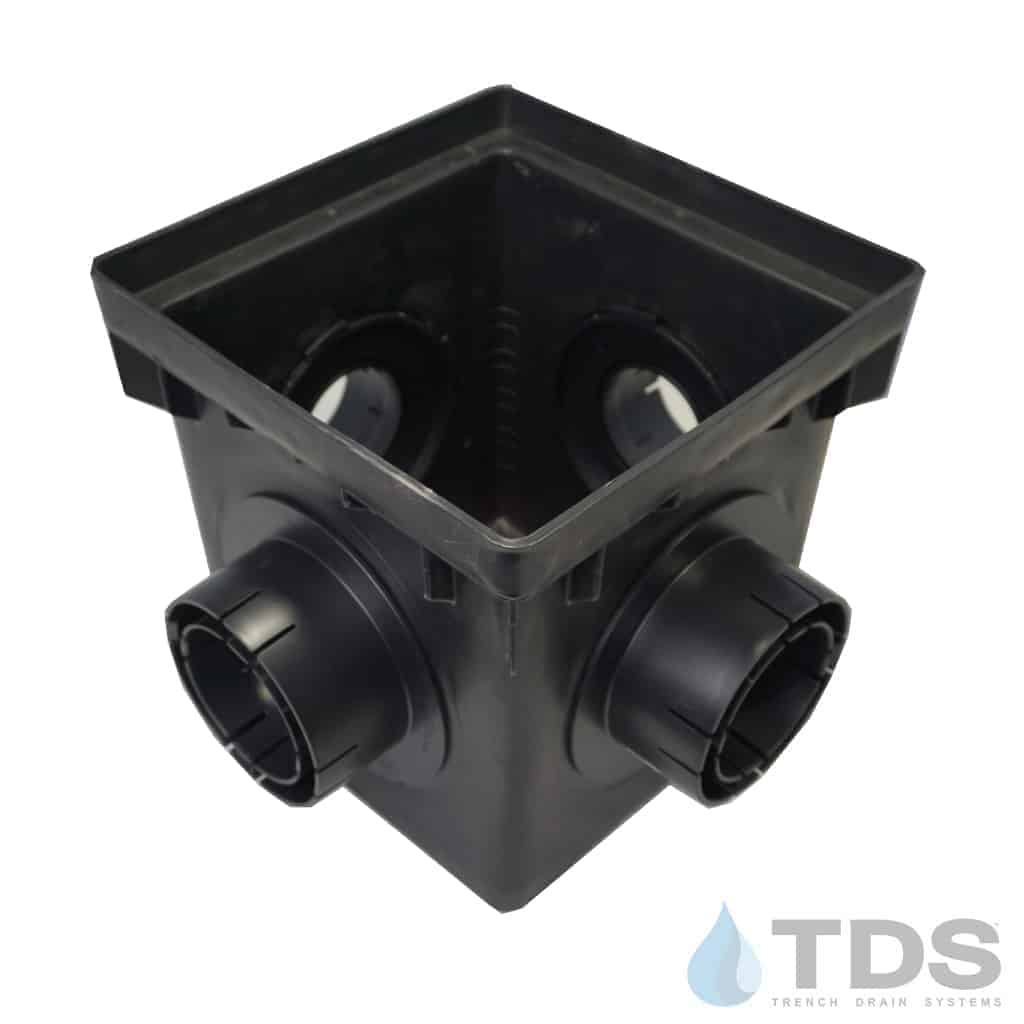

    		 Kits with 4 Outlets Include:

    (1) NDS 1230 Catch Basin
    (1) Grate IA-OBLIO-CB12

    Choice of Pipe Adaptor size:
    (4) NDS 1243 for 3-4"  -or-
    (4) NDS 1266 for 6"

    Want to learn more about this system?  Click Here for more information.
