NDS® Dura Slope In-Line Catch Basin with DS-603-BF Cast Iron Tile Grate BoOF

Grate Width: 6.00" for NDS DuraSlope

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: NDS

System: Dura Slope

Grate Load Class: Class D

Grate Pattern: TILE

Grate Pattern Style: ABSTRACT

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - Ductile Iron and Edging - None

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

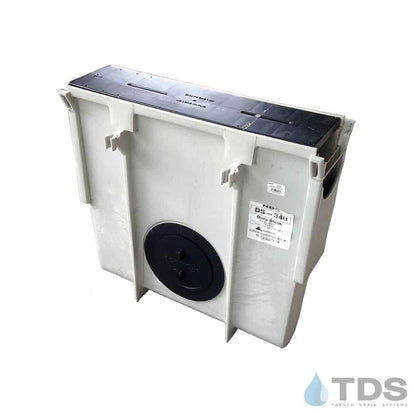

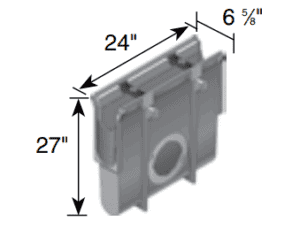

The NDS Dura Slope™ in-line catch basin kit with DS-603-BF cast iron tile grate with Baked-on Oil Finish is designed to fit all depth ranges of the Dura Slope™ trench drain. Catch basin inlets are designed to be sized as required to accept drainage sections. The Dura Slope™ catch basin is 2 feet long and 2 feet deep with an outlet on both sides of the basin.

One Universal Adapter Plug, one blank grate insert and two grate screws are included with each catch basin kit. The NDS universal basin outlets are used to adapt the catch basin to 3", 4", 6" and 8" pipe.

Each kit includes:

• Grates
• Basin
• Trash Basket
• End Cap/Outlet
• Hold Down Screws

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear orange before settling to brown. With the Baked-on Oil Finish, the grates will still minutely rust, but not to the same extreme as a raw cast iron grate.
