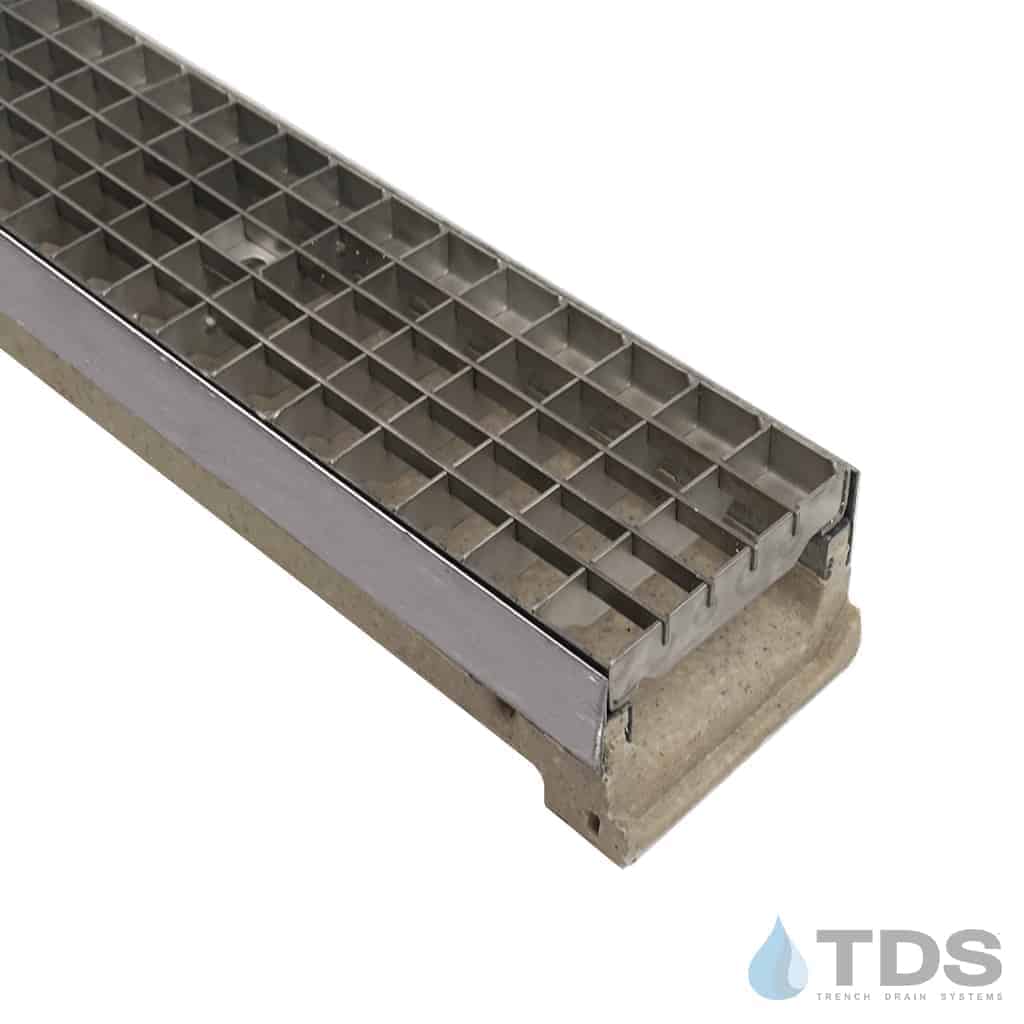

ULMA M100KX with a Stainless Steel Mesh Grate (1M)
This shallow polymer concrete trench drain kit uses the ULMA Type M100KX channel with integral stainless steel edging. Similar to the H100KS, it has an external width of 130mm (5.12"), an internal width of 100mm (3.94") and is supplied with an overall height of 80mm (3.15"). Channels are 1 meter in length and have a neutral slope. The locking system consists of locking bar CS100 and hex head screws. Installation hardware and solid end caps are included. Outlets are through the bottom of the channel. Each channel has one 4" diameter knock-out (Drill-out).
ULMA has a wide variety of drain gratings for its 100mm (3.94") wide channels. This kit includes a standard, Stainless Steel Mesh Grate. This grate is 124mm (4.89") wide and 498mm (19.6") in length. Two grates are required for each one-meter ULMA channel. This grating has a Load Class C rating.
Stainless Steel Mesh Grate (1M)
