ULMA M100KX Drain Channel kit w/Bronze Age™ CATHEDRAL Grate-RAW

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA and TDS (Trench Drain Systems)

System: M100KX

Grate Load Class: Class C

Grate Pattern: CATHEDRAL

Grate Pattern Style: PERFORATED

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Stainless

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

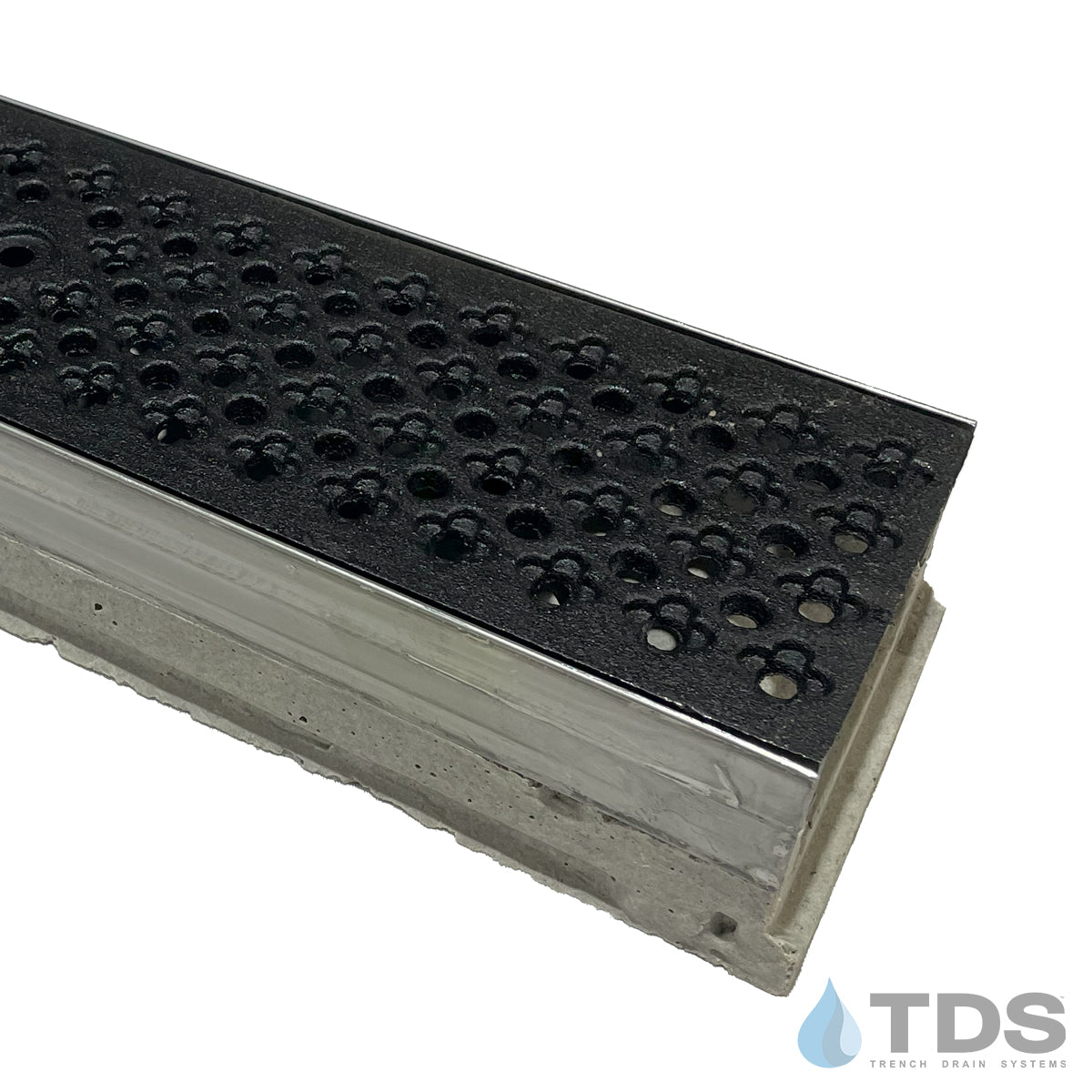

ULMA M100KX shallow polymer concrete channel w/ stainless steel edge and exclusive Bronze Age™ CATHEDRAL ductile iron grating.

Installation hardware and solid end caps are included.

This shallow channel drain uses the ULMA Type M100KX channel with integral galvanized steel edging. Neutral channels come in 1-meter lengths with an external width of 130mm (5.12"), an internal width of 100mm (3.94"), and an overall height of 80mm (3.15").

The locking system consists of locking bars and hold-down screws.  Installation hardware and solid end caps are included. A pre-formed 4" diameter knock-out (Drill-out) is located at the bottom of the channel for outlet pipe connection. End outlet is also an option by leaving off the solid end caps.

Specification Sheet For BA-CATH-0520

Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture. These grates come with a temporary primer coating and will slowly transition to a brown shade over time.

Grating is also available in a Baked-on Oil Finish. Request your quote today!
