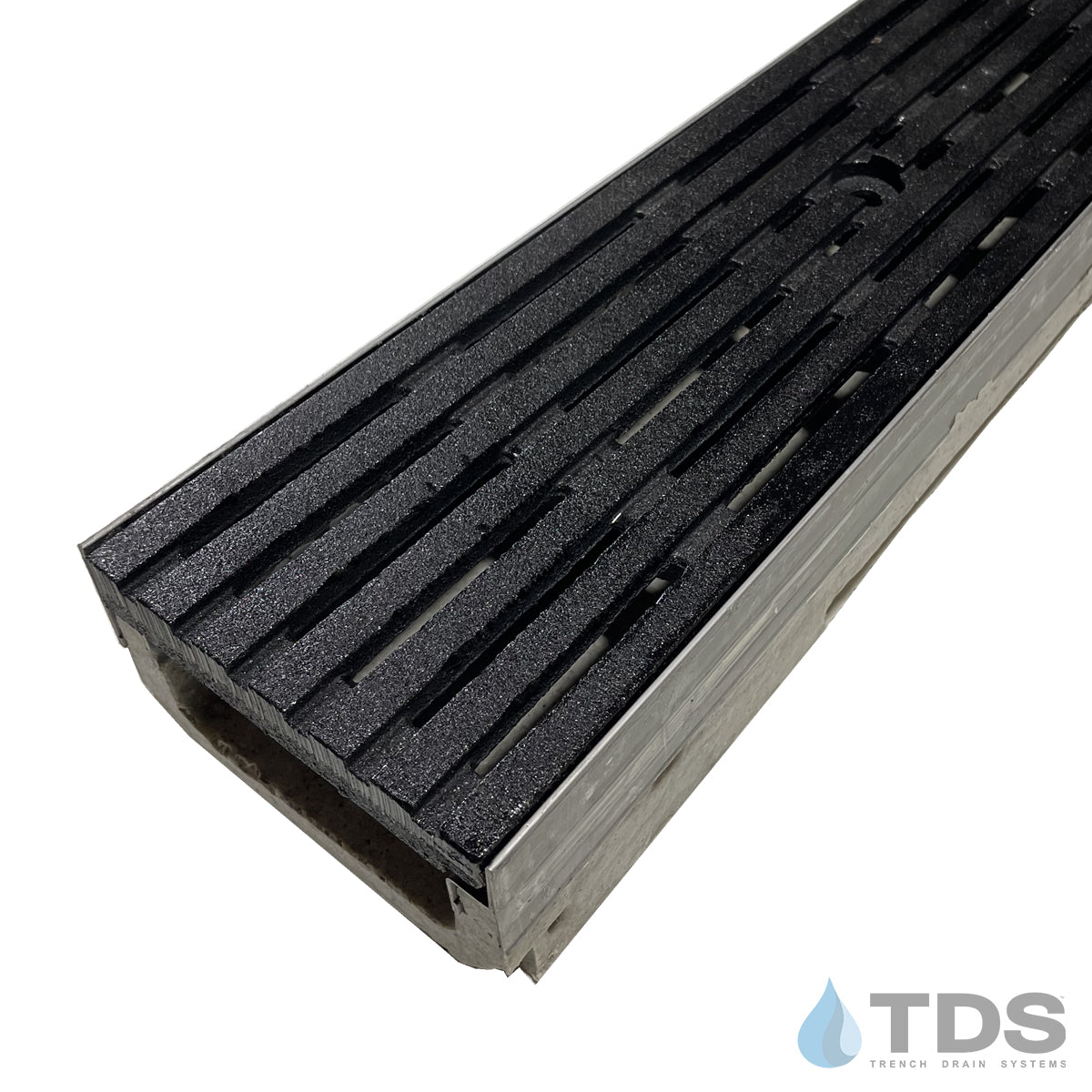

ULMA M100KX shallow polymer concrete channel w/ stainless steel edge and exclusive Bronze Age™ BARS ductile iron grating.
Installation hardware and solid end caps are included.
This shallow channel drain uses the ULMA Type M100KX channel with integral galvanized steel edging. Neutral channels come in 1-meter lengths with an external width of 130mm (5.12"), an internal width of 100mm (3.94"), and an overall height of 80mm (3.15").
The locking system consists of locking bars and hold-down screws. Installation hardware and solid end caps are included. A pre-formed 4" diameter knock-out (Drill-out) is located at the bottom of the channel for outlet pipe connection. End outlet is also an option by leaving off the solid end caps.

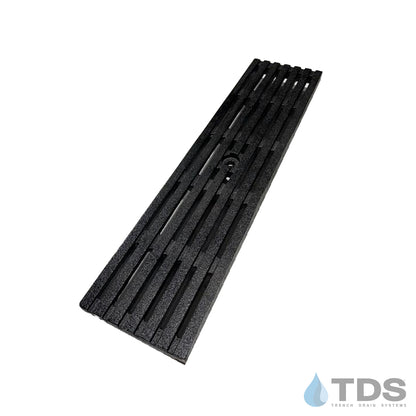

Specification Sheet for BA-BARS-0520
Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
Grating is also available in a Baked-on Oil Finish. Request your quote today!
