M100KX Kit w/Iron Age River Rock Grate | BoOF

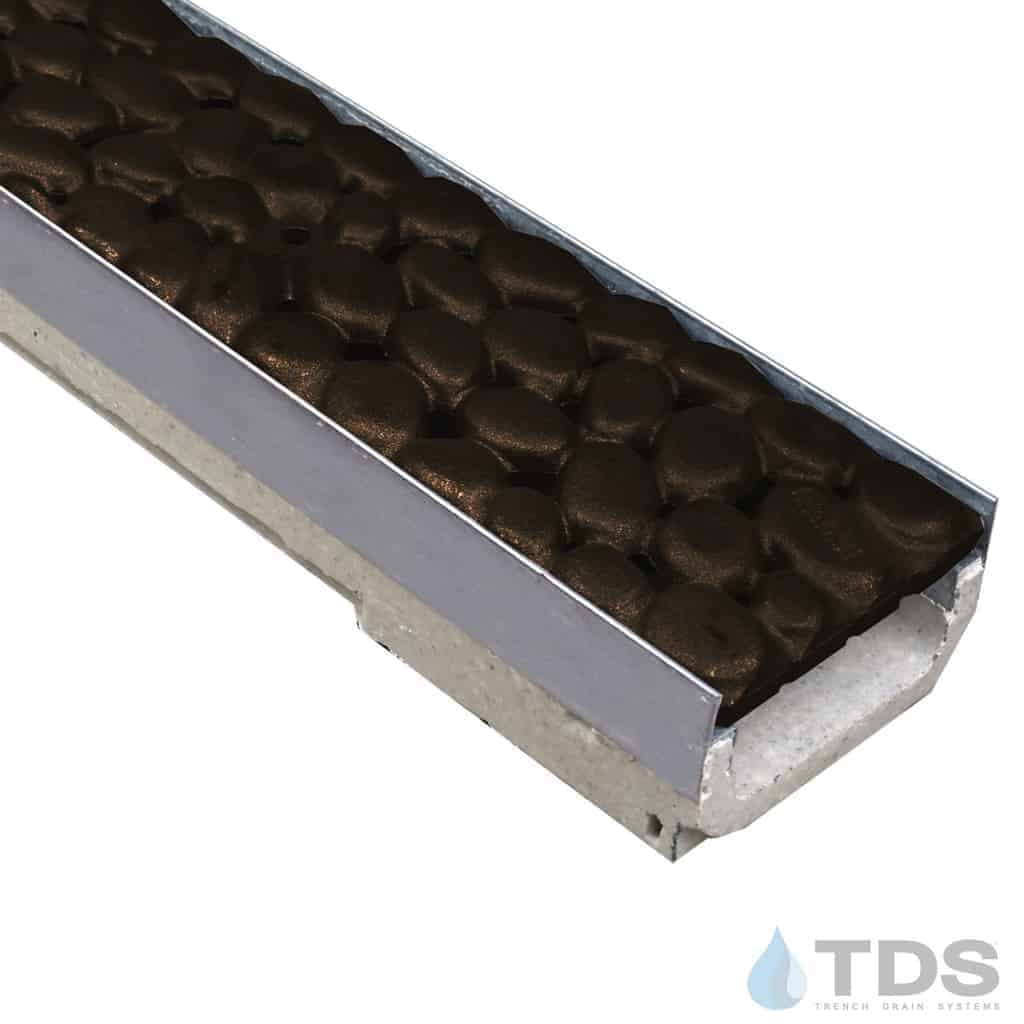

ULMA channel with Stainless Steel edging and River Rock grates by Iron Age Designs.

Each Kit Includes :

• Channel(s)
• Grate(s)
• Installation chair(s)
• Locking device(s)
• End Cap (not included with half channel)
• End Outlet (not included with half channel)

This shallow polymer concrete trench drain kit uses the ULMA Type M100KX channel with integral stainless steel edging. It has an external width of 130mm (5.12"), an internal width of 100mm (3.94") and an overall height of 80 mm (3.15").

Channels are 1 meter in length and have a neutral slope. The locking system consists of a locking bar CS100 and hex head screws.  Installation hardware and solid end caps are included.  Outlets are through the bottom of the channel.  Each channel has one 4" diameter knock-out (Drill-out).

This kit includes decorative cast iron trench grates designed to fit the ULMA system and others.  ADA compliant Iron Age River Rock grates are 122mm (4.8") wide and 498mm (19.6") long.  They are available in either the raw casting or Baked on Oil Finish (BooF).

Each Kit Includes :

• Channel(s)
• Grate(s)
• Installation chair(s)
• Locking device(s)
• End Cap (not included with half channel)
• End Outlet (not included with half channel)

Please allow an additional 2 weeks for delivery of BoOF products.
