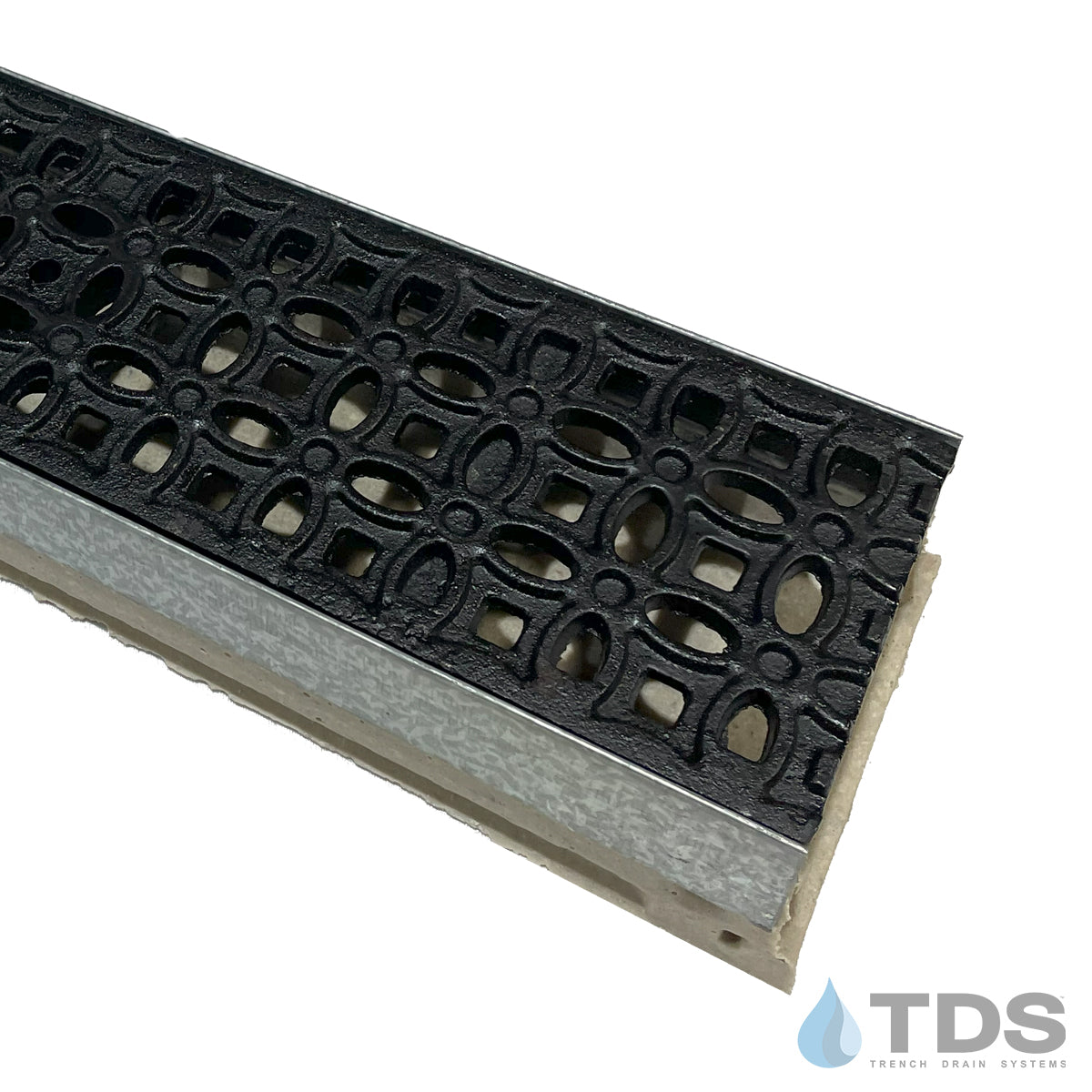

ULMA M100K w/Bronze Age™ Luna Ductile Iron Heel-Proof Grate - RAW

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: ULMA and TDS (Trench Drain Systems)

System: M100K

Grate Load Class: Class C

Grate Pattern: LUNARIA

Grate Pattern Style: TRADITIONAL

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging: Edging - Galvanized

Application: General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

The ULMA M100K is a 5" wide shallow neutral linear trench drain channel with a galvanized steel edge. The ULMA M100K channel has an external width of 130mm (5.12"), an internal width of 100mm (3.94"), and is supplied with an overall height of 80mm (3.15"). Each channel is 1 meter in length. Each channel has one 4" diameter knock-out (Drill-out) for bottom outlet capability.

Bronze Age™ decorative ductile iron grate with the Luna pattern is a TDS exclusive and is available in a natural raw finish and is designed to fit the ULMA D100 linear trench drain system.

Grating:

• BA-LUNA-0520 – Ductile Iron Slotted Grate – (Load Class C)

Drainage Kit Includes:

• Grate
• Locking Device
• Channels - Neutral sections
• Installation Chairs
• End Caps

Specification Sheet for BA-LUNA-0520

Large project? Request a Quote

Please note that all raw cast iron grates begin to naturally rust with exposure to any form of moisture. These grates come with a temporary primer coating and will slowly transition to a brown shade over time.

Grating is also available in a Baked-on Oil Finish. Request your quote today!
