LD100X-5CB Locking Device for ULMA Grates

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Fiberglass - I-Bar

Manufacturer: ULMA

System: D100, U100K, and U100KX

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging:

Application:

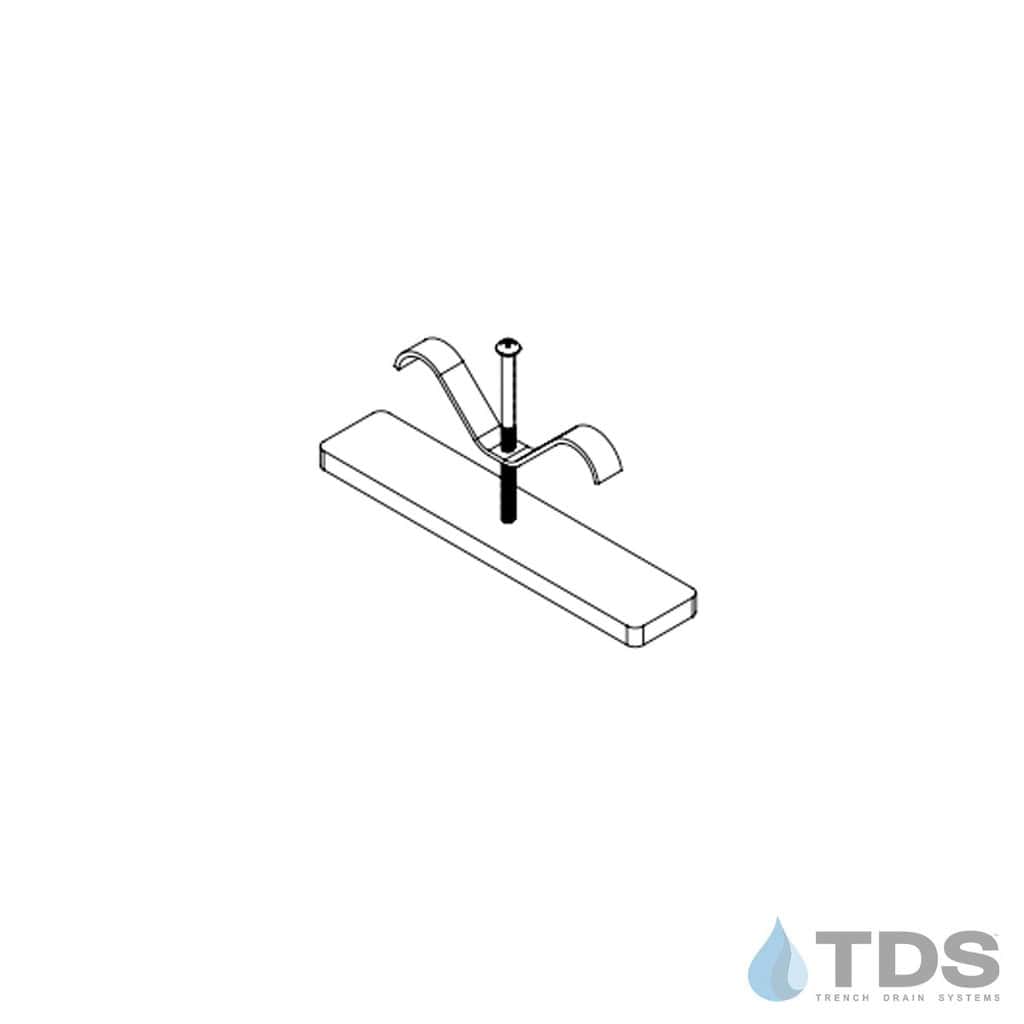

Stainless Steel Locking Device for ULMA AD100 and AK100 Catch Basins with specific grates

The ULMA LD100X-5CB Stainless Steel locking device is to be used with all grating systems where wheel traffic occurs to provide drainage system integrity.

Used on ULMA AD100 and AK100 Catch Basins with specific grates..

See Specification sheet for list of grates: LD100X-5CB Specification Sheet
