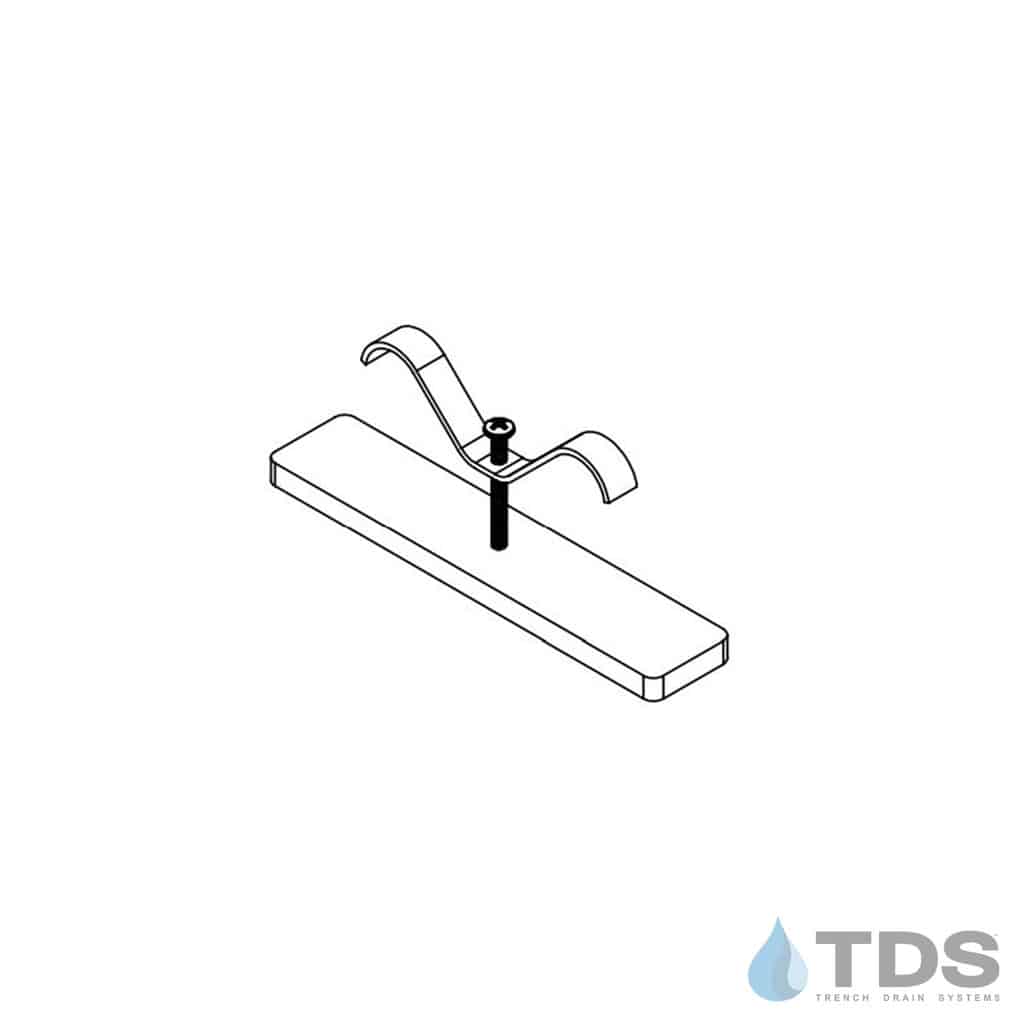

LD100X-5 Locking Device for ULMA Grates

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Fiberglass - I-Bar

Manufacturer: ULMA

System: D100, U100K, and U100KX

Grate Load Class:

Grate Pattern:

Grate Pattern Style:

Channel Material: Polymer Concrete - Polyester

Channel Frame / Edging:

Application:

Stainless steel Locking Device for ULMA U100, D100 & HYDROPLUS with specific grates

The ULMA LD100X-5 Stainless steel locking device is to be used with all grating systems where wheel traffic occurs to provide drainage system integrity. Please note: 2 locking devices are needed for each 1 Meter grate.

Used on ULMA U100, D100 and HYDROPLUS trench drain systems.

See Specification sheet for list of grates: LD100X-5 Specification Sheet
