J-4222-01 Heavy Duty Cast Iron 12" x 24" x 1.5" Grate | D&L Foundry

Grate Width: 12.00"

Grate Thickness: 1.50"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: D & L Foundry and TDS (Trench Drain Systems)

System: Foundry

Grate Load Class: H-20

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Form Your Own OR Site Built

Channel Frame / Edging: Edging - Ductile Iron, Frame - Fibergrate - EZ, Frame - Fibergrate - WYE, Frame - Stainless, and Frame - Galvanized

Application:

Heavy Duty Gray Iron Grate

Large project? Request a Quote

NOTE: Due to the weight of this product, expect higher than normal shipping costs.

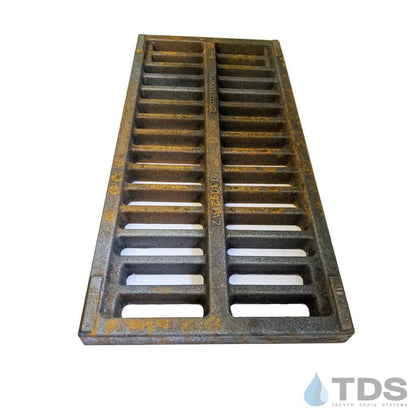

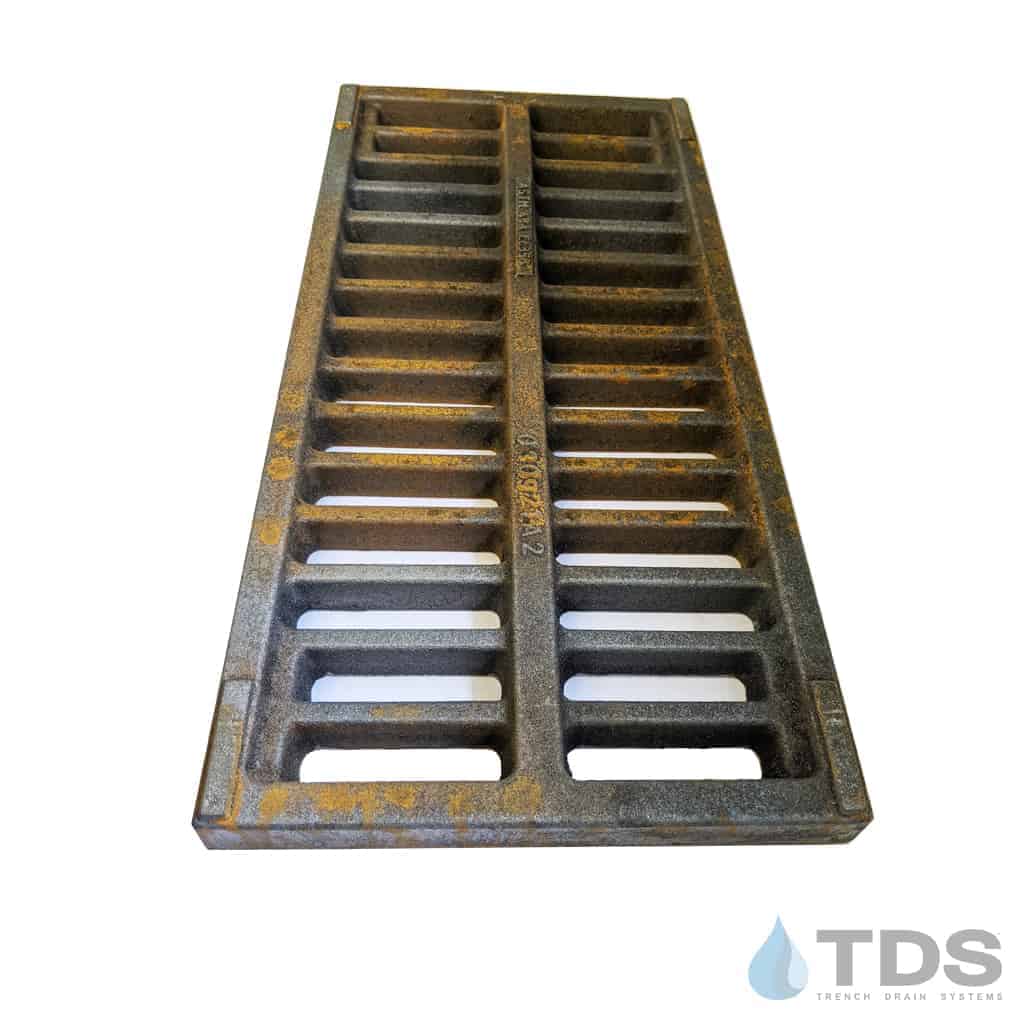

D&L Foundry grate is suitable for a variety of heavy-duty applications. Each individual grate weighs 58 lbs and confirms to ASTM A48 CL35B, H-20. Grate has (4) leveling pads that can be ground to level the grate and have 33% (96 sq in) of open area.

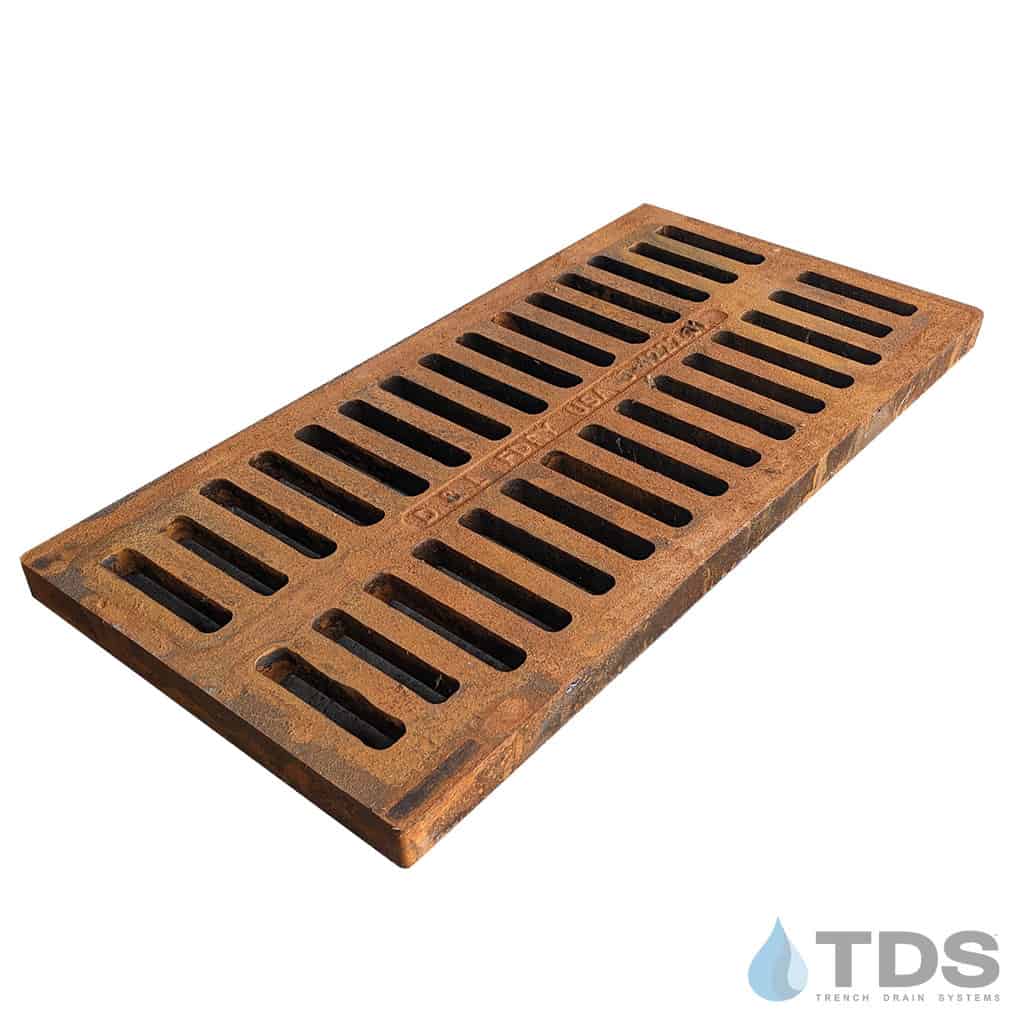

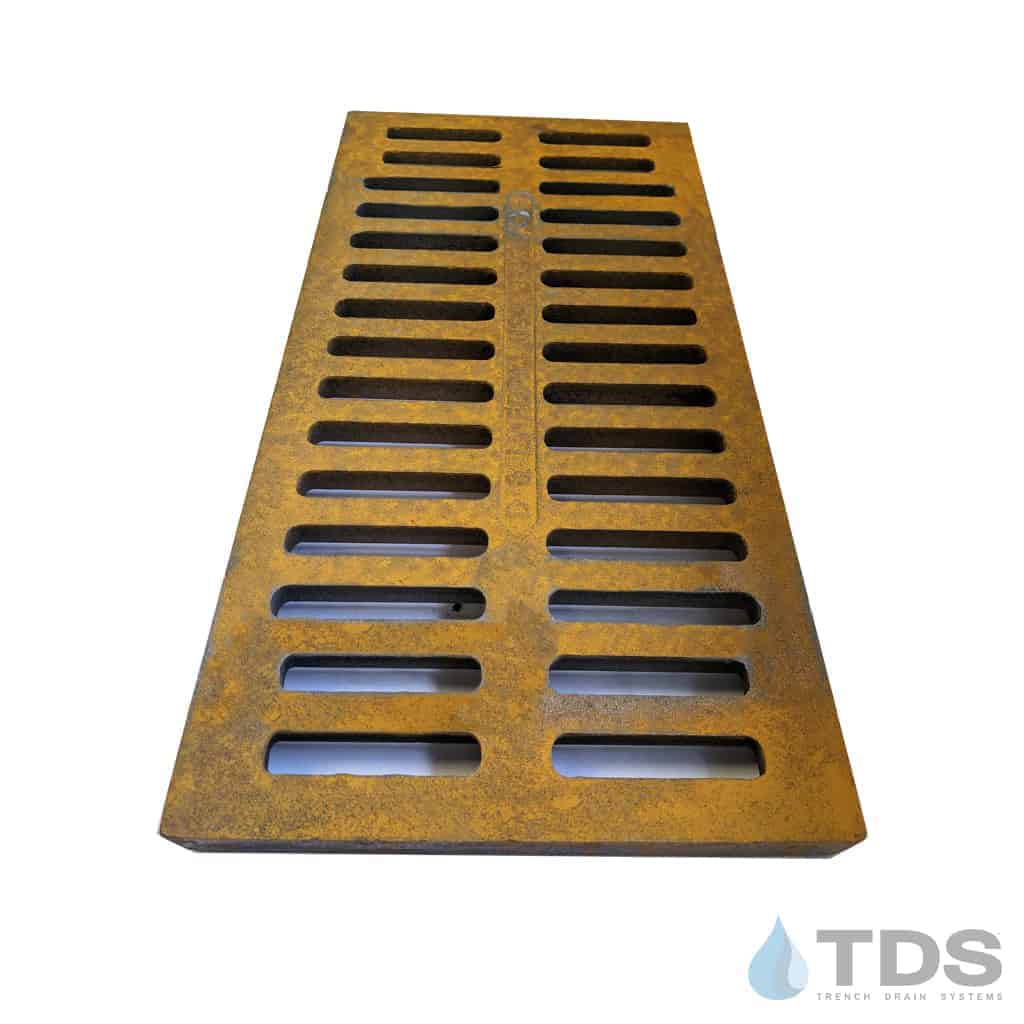

Gray Iron heavy duty grate that measures 12" x 24" x 1.5". (Actual dimensions: 11.88" x 23.75" x 1.5"). Grate openings/flow areas measure 4" x .75".

Specification Sheet for J4222-01

Looking to create a trench drain system with these grates? We have a variety of rails/frames to make the build easier.

CLICK HERE FOR COMPARABLE OPTION

All raw cast iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
