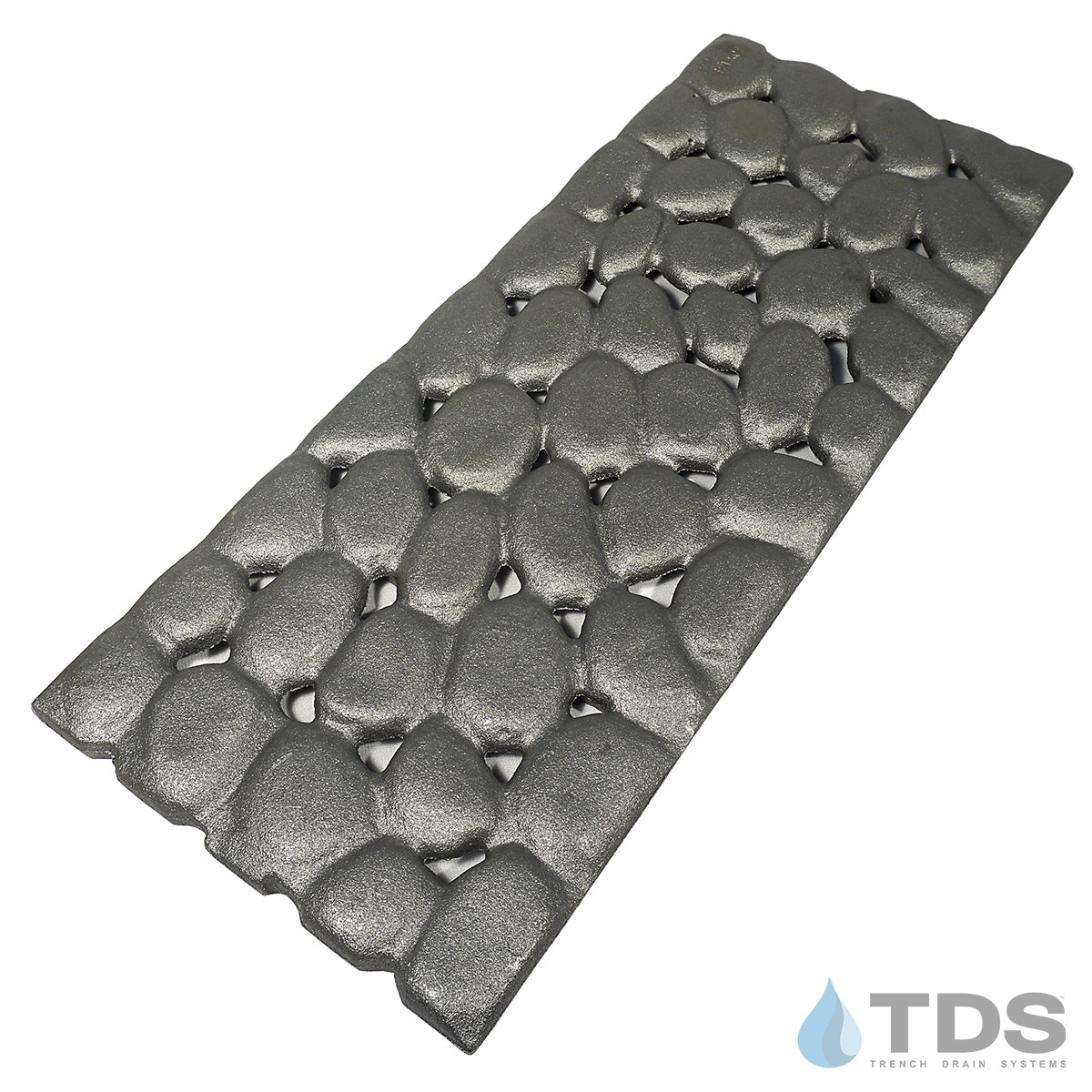

Iron Age IA-RIV-0820 Class B River Rock Cast Iron Grate – RAW 8" x 20"

Grate Width: 7.88" for Pro Series 8

Grate Thickness: 0.81"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Iron Age Designs

System: Pro Series 8

Grate Load Class: Class B

Grate Pattern: RIVER ROCK

Grate Pattern Style: NATURE

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Actual Dimensions: 8″ [203mm] x 19.87″ [505mm] x .75″ [19.05mm]

Large project? Request a Quote

Decorative cast iron trench grate designed to fit the NDS Pro Series 8 system. River Rock pattern grate is ideal for high pedestrian traffic areas and driveways. Choose the raw casting or with our Baked on Oil Finish.

Actual Dimensions: 8" [203mm] x 19.87" [505mm] x .75" [19.05mm]

ADA Compliant - no openings greater than 1/2"

Specification Sheet IA-RIV-0820

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

What is Baked On Oil Finish (BooF)? Click Here to learn more.
