Iron Age IA-QUE-0312-HP Class B Transverse Slotted Cast Iron 3" x 12" Grate - RAW

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Iron Age Designs

System: Mini Channel

Grate Load Class: Class A and Class B

Grate Pattern: ACANTHUS

Grate Pattern Style: NATURE

Channel Material: Plastic - (PP, HDPE, PE) - Sand and Plastic - (PP, HDPE, PE) - Gray

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

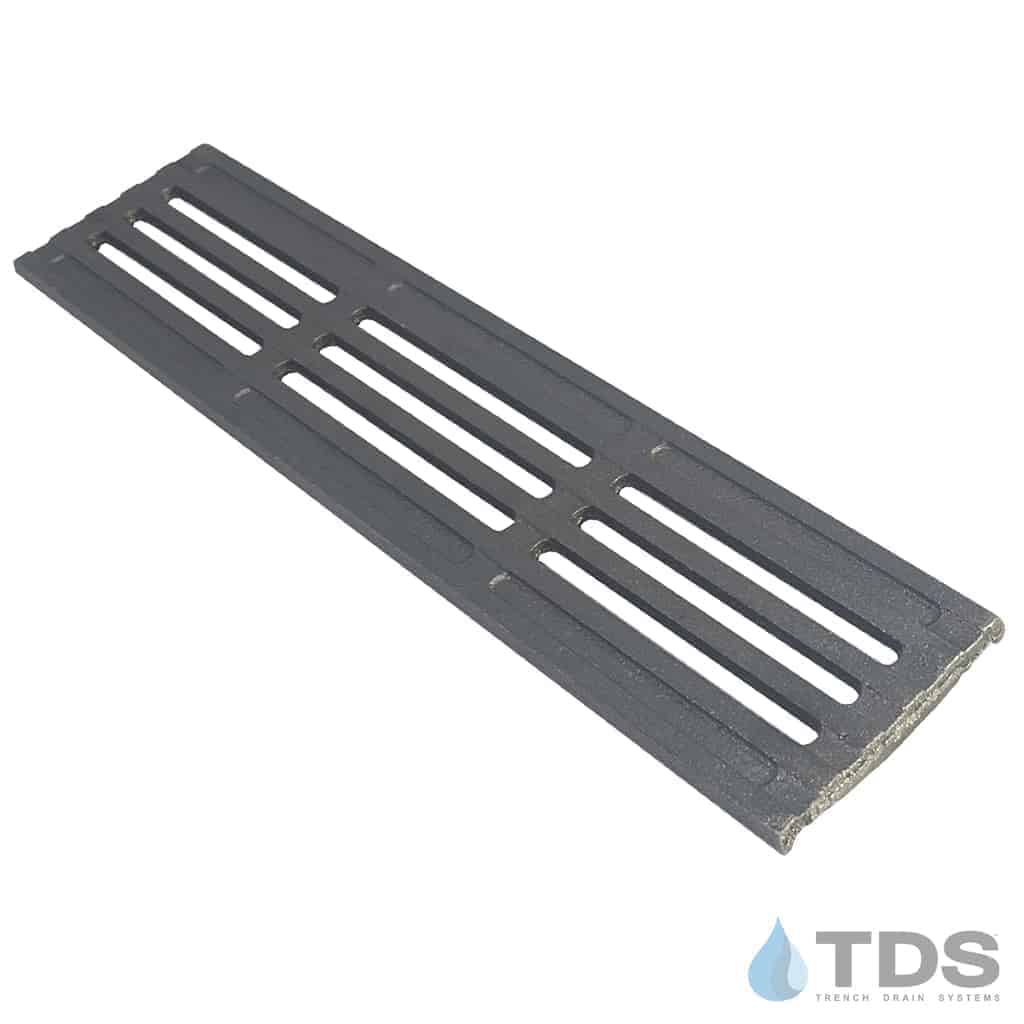

Decorative Iron Age grate with the Que pattern and is available in natural raw casting or a Baked-on Oil Finish. The product photo above shows the updated slot design.

Actual Dimensions: 2.74" [70 mm] x 11.94" [304 mm] x .38" [10 mm]

Specification Sheet for IA-QUE-0312-HP

Designed to fit: NDS Mini Channel

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

What is Baked-On Oil Finish? Click Here to learn more.
