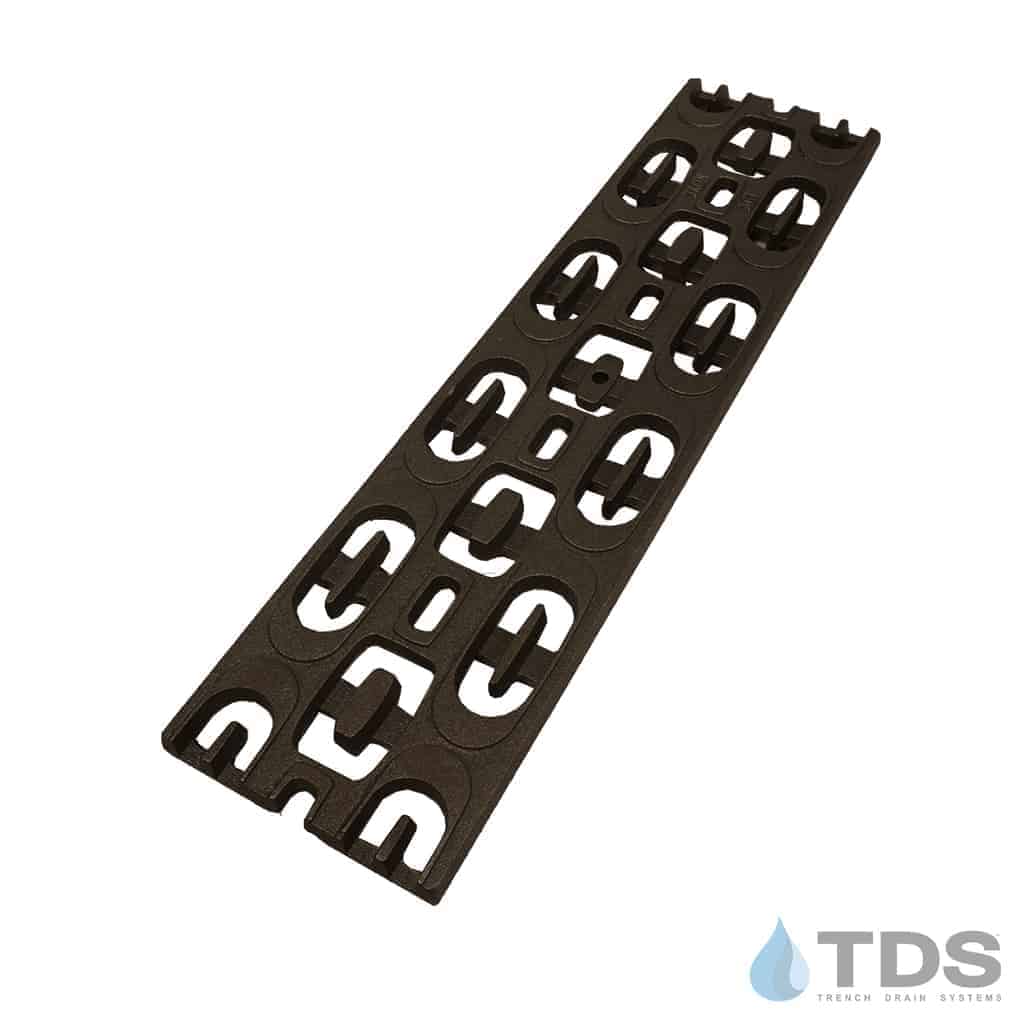

Iron Age IA-PAR-0520-BF / PA5-20I21 Class B Paradise Cast Iron 122mm x 494mm Grate - BoOF

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: Iron Age Designs

System: D100, U100K, U100KX, M100V, M100K, M100KX, HYDROPLUS, and HYDROPLUS MINI

Grate Load Class: Class B

Grate Pattern: PARADISE

Grate Pattern Style: NATURE

Channel Material: Polymer Concrete - Polyester and Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None, Edging - None, Frame - Galvanized, and Frame - Stainless

Application: Decorative

Iron Age grate PA5-20I21

Actual Dimensions: 4.81″ [122 mm] x 19.43″ [494 mm] x .81″ [20.5 mm]

Large project? Request a Quote

The decorative Iron Age grate with the Paradise pattern and is available in either the raw casting or Baked on Oil Finish.

Actual Dimensions: 4.81" [122 mm] x 19.43" [494 mm] x .81" [20.5 mm]

IA-PAR-0520-BF Specification Sheet

Designed to fit:

• ULMA - HYDROPLUS
• ULMA - U100 and M100
• MEA-Josam - MEArin 100
• MEA-Josam - MEA J1000
• MultiDrain - Alfa Channel
• J.R. Smith - Enviro-Flo
• Polydrain by ABT
• Other metric drain systems

Locking device sold separately.

• The LD100X-3 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-3 locking device is compatible with the ULMA M Series channel system.
• The LD100X-3CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
• The 141460 locking device is compatible with the MEArin 100 channel.
• The 2811B locking device is compatible with the ABT Polydrain channel.

Please allow an additional 2 weeks for delivery of BoOF products. (if not in stock)

What is Baked On Oil Finish? Click Here to learn more.
