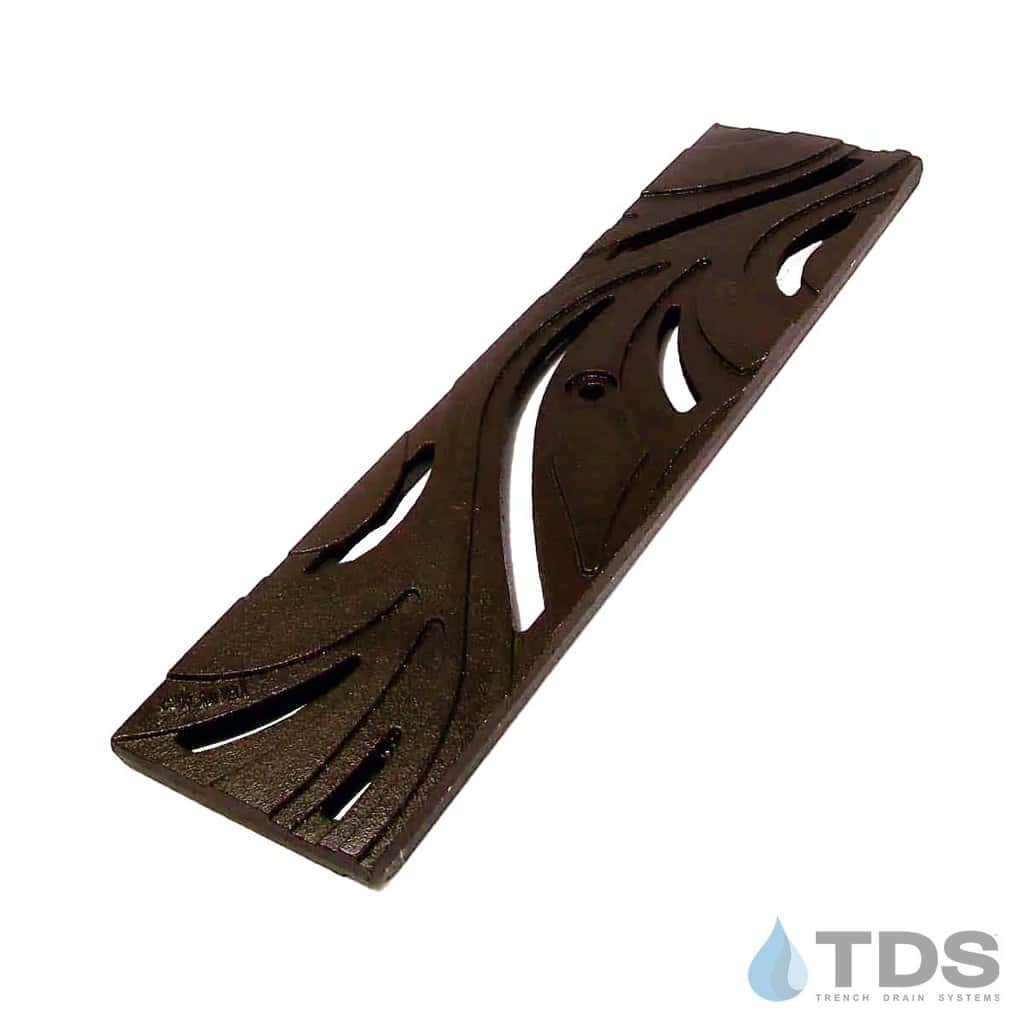

Iron Age IA-MIN-0520-BF Class B Minnione Cast Iron 122mm x 500mm Grate - BoOF

Iron Age grate MA5-20B21

Actual Dimensions: 4.81″ [122 mm] x 19.44″ [494 mm] x .75″ [19.05 mm]

Large project? Request a Quote

Decorative cast iron trench grate designed to fit the MEArin 100 Channel drain system and others.  The Minnione pattern is available in either the raw casting or Baked on Oil Finish (BoOF).

Actual Dimensions: 4.81" [122 mm] x 19.44" [494 mm] x .81" [20.5 mm]

Specification Sheet for IA-MIN-0520

Designed to fit:

• • ULMA - HYDROPLUS
  • ULMA - U100 and M100
  • MEA-Josam - MEArin 100
  • MEA-Josam - MEA J1000
  • MultiDrain - Alfa Channel
  • J.R. Smith - Enviro-Flo
  • ABT - Polydrain
  • Other metric drain systems

Locking device sold separately.

• The LD100X-3 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-3 locking device is compatible with the ULMA M Series channel system.
• The LD100X-3CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
• The 141460 locking device is compatible with the MEArin 100 channel.
• The 2811B locking device is compatible with the ABT Polydrain

Please allow an additional 2 weeks for delivery of BoOF products.

What is Baked On Oil Finish (BooF)? Click Here to learn more.
