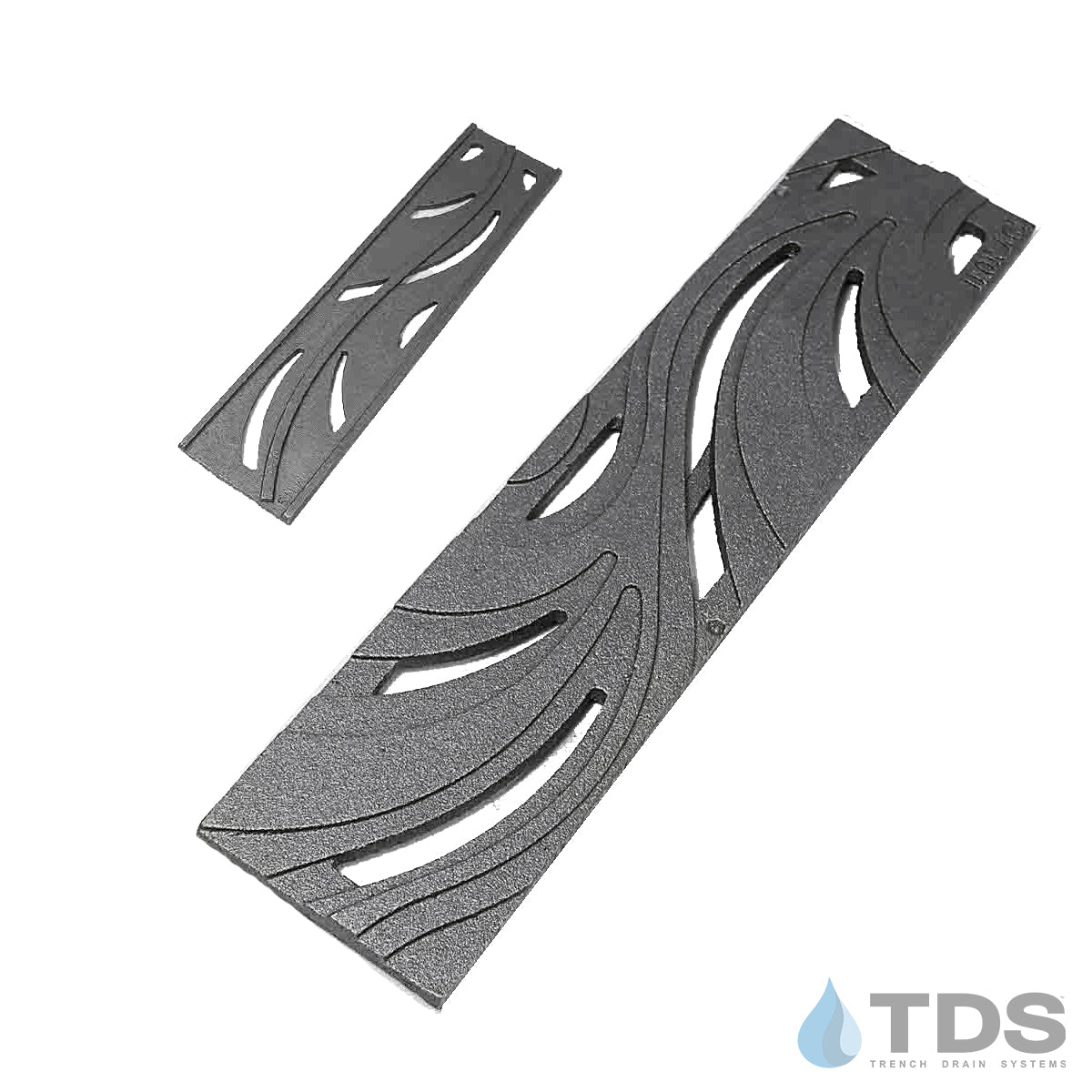

Iron Age IA-MIN-0312 Class B Minnione Cast Iron 3" x 12" Grate - RAW

Grate Width: 2.75" for NDS Mini Channel

Grate Thickness: 0.38"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Iron Age Designs

System: Mini Channel

Grate Load Class: Class A and Class B

Grate Pattern: ACANTHUS

Grate Pattern Style: NATURE

Channel Material: Plastic - (PP, HDPE, PE) - Sand and Plastic - (PP, HDPE, PE) - Gray

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

Decorative Iron Age grate with the Minnione pattern and is available in either the raw casting or Baked-on Oil Finish

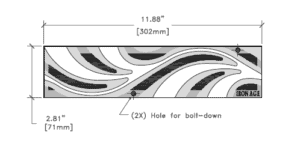

Actual Dimensions: 2.81" [72 mm] x 11.88" [302 mm] x .25" [7 mm]

Specification Sheet for IA-MIN-0312

Designed to fit: NDS Mini Channel

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

What is Baked-On Oil Finish? Click Here to learn more.
