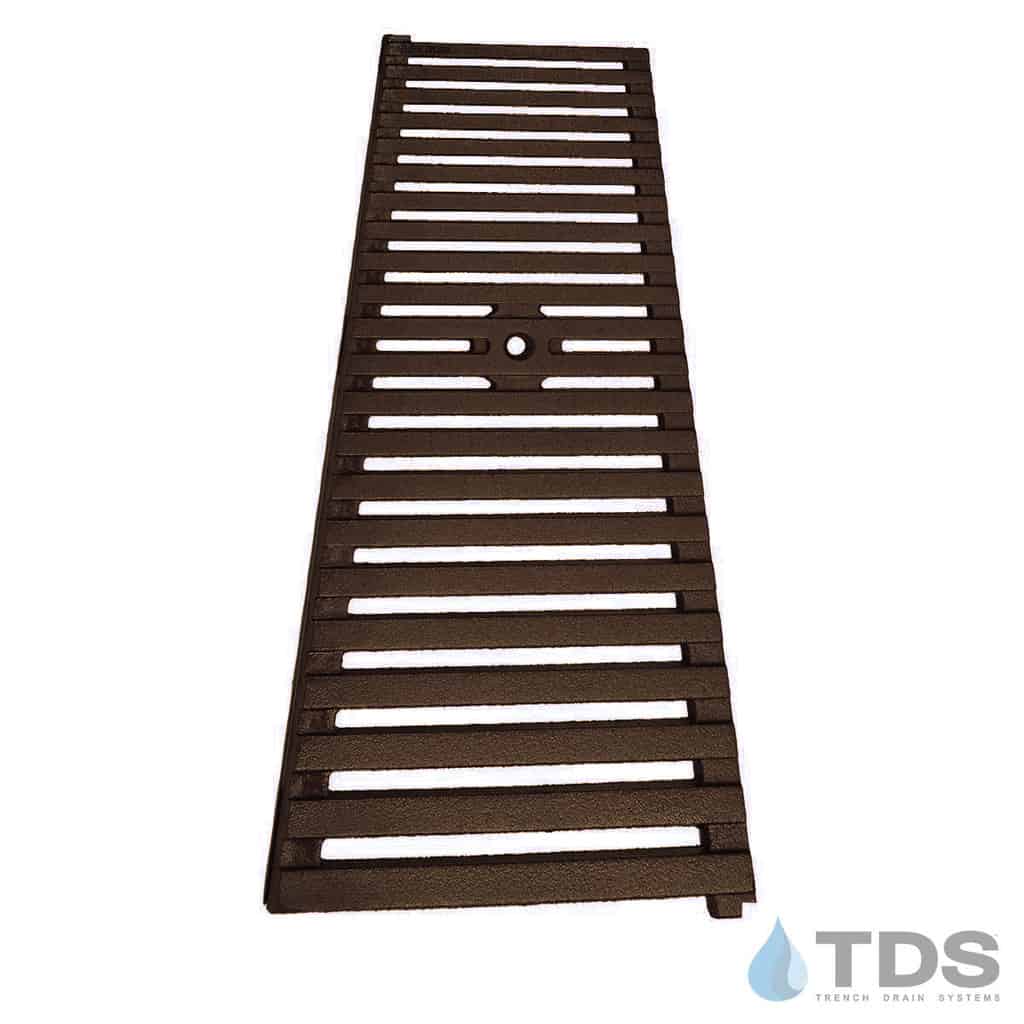

Iron Age IA-JOE-0820 REGULAR JOE Cast Iron Grate – BoOF 8" x 20" | RJN8-20I04

Grate Width: 7.88" for Pro Series 8

Grate Thickness: 0.81"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: Iron Age Designs

System: Pro Series 8

Grate Load Class: Class B

Grate Pattern: REGULAR JOE

Grate Pattern Style: SLOTTED

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

8″ x 20″ Deco Cast Iron Grate – Regular Joe
Large project? Request a Quote

Decorative cast iron trench grate designed to fit the NDS Pro Series 8 system. The Regular Joe patterned grate is ideal for high pedestrian traffic areas and driveways.

It has a Baked on Oil Finish - (BoOF) finish and measures 7.875" wide x 20.16" Long x 3/4" thick. ADA Compliant - There are no openings greater than 1/2". All dimensions are nominal.

Load Class B

Designed to fit: NDS - Pro Series 8 Channel

Specification Sheet for IA-JOE-0820

Please allow an additional 2 weeks for the delivery on BoOF products.
