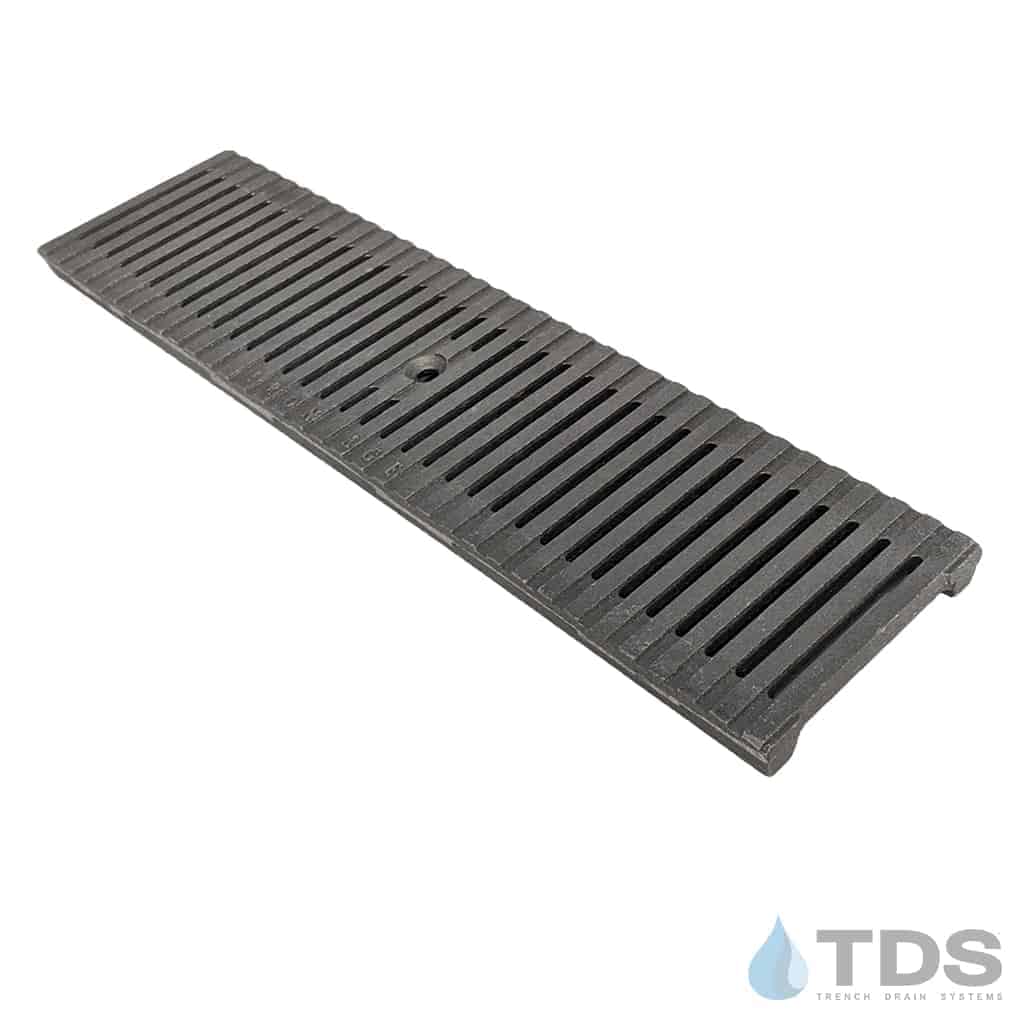

Iron Age IA-JOE-0520-HP Class B Heel-Proof Regular Joe Cast Iron 122mm x 500mm Grate - RAW

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Iron Age Designs

System: D100, U100K, U100KX, M100V, M100K, M100KX, HYDROPLUS, and HYDROPLUS MINI

Grate Load Class: Class B

Grate Pattern: REGULAR JOE

Grate Pattern Style: SLOTTED

Channel Material: Polymer Concrete - Polyester and Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None, Edging - None, Frame - Galvanized, and Frame - Stainless

Application: Decorative

Iron Age grate RJA5-20I21HP

Actual Dimensions: 4.81″ [122mm] x 19.6″ [498mm] x .81″ [20.57mm]

Large project? Request a Quote

Decorative Heel Proof cast iron trench grate designed to fit the ULMA U100 and MEArin 100 Channel drain system and others. The Regular Joe Heel Proof pattern is available in either the raw casting or Baked on Oil Finish (BoOF).

Actual Dimensions: 4.81″ [122mm] x 19.6″ [498mm] x .81″ [20.57mm]

Specification Sheet for IA-JOE-0520-HP

Designed to fit:

• • ULMA - HYDROPLUS
  • ULMA - U100 and M100
  • MEA-Josam - MEArin 100
  • MEA-Josam - MEA J1000
  • MultiDrain - Alfa Channel
  • J.R. Smith - Enviro-Flo
  • ABT - Polydrain
  • Other metric drain systems

Locking device sold separately.

• The LD100X-3 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-3 locking device is compatible with the ULMA M Series channel system.
• The LD100X-3CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
• The 141460 locking device is compatible with the MEArin 100 channel.
• The 2811B locking device is compatible with the ABT Polydrain

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
