Iron Age IA-JANIS-0520-BF Class B Janis Cast Iron 122mm x 500mm Grate - BoOF

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: Iron Age Designs

System: D100, U100K, U100KX, M100V, M100K, M100KX, HYDROPLUS, and HYDROPLUS MINI

Grate Load Class: Class B

Grate Pattern: JANIS

Grate Pattern Style: ABSTRACT

Channel Material: Polymer Concrete - Polyester and Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None, Edging - None, Frame - Galvanized, and Frame - Stainless

Application: Decorative

Iron Age grate JA5-20I21

Actual Dimensions: 4.81″ [122 mm] x 19.63″ [499 mm] x .81″ [20.5 mm]

Large project? Request a Quote

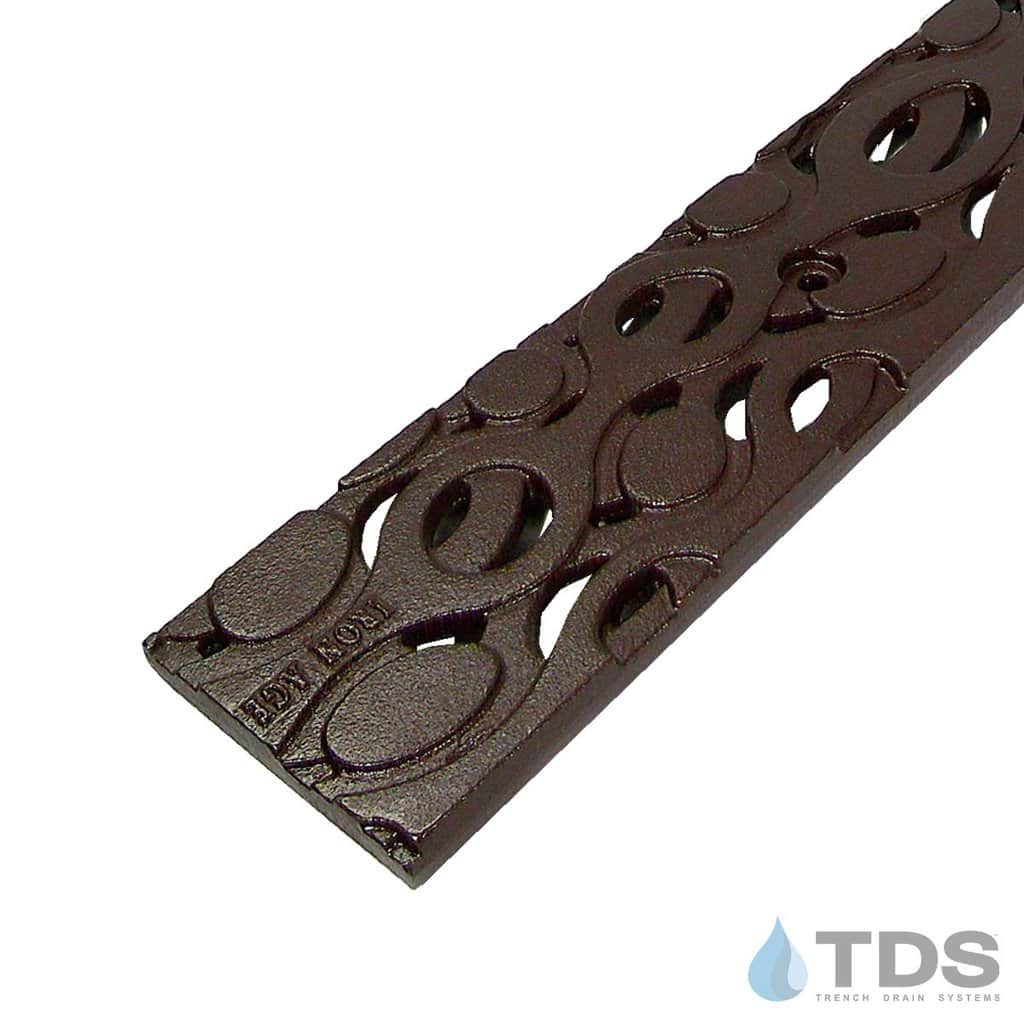

Decorative cast iron trench grate designed to fit the MEArin 100 Channel drain system and others. Janis is available in either the raw casting or Baked on Oil Finish (BoOF).

Actual Dimensions: 4.81" [122 mm] x 19.63" [499 mm] x .81" [20.5 mm]

Designed to fit:

• MEArin 100 by MEA-Josam
• MEA J1000 by MEA-Josam
• Enviro-Flo by J.R. Smith
• Alfa Channel by MultiDrain
• ABT - Polydrain
• Other metric drain systems

Locking device sold separately.

• The LD100X-3 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-3 locking device is compatible with the ULMA M Series channel system.
• The LD100X-3CB locking device is compatible with the ULMA AD100 & AK100 catch basins.
• The 141460 locking device is compatible with the MEArin 100 channel.
• The 2811B locking device is compatible with the ABT Polydrain channel.

Please allow an additional 2 weeks for delivery of BoOF products.

What is Baked On Oil Finish (BooF)? Click Here to learn more.
