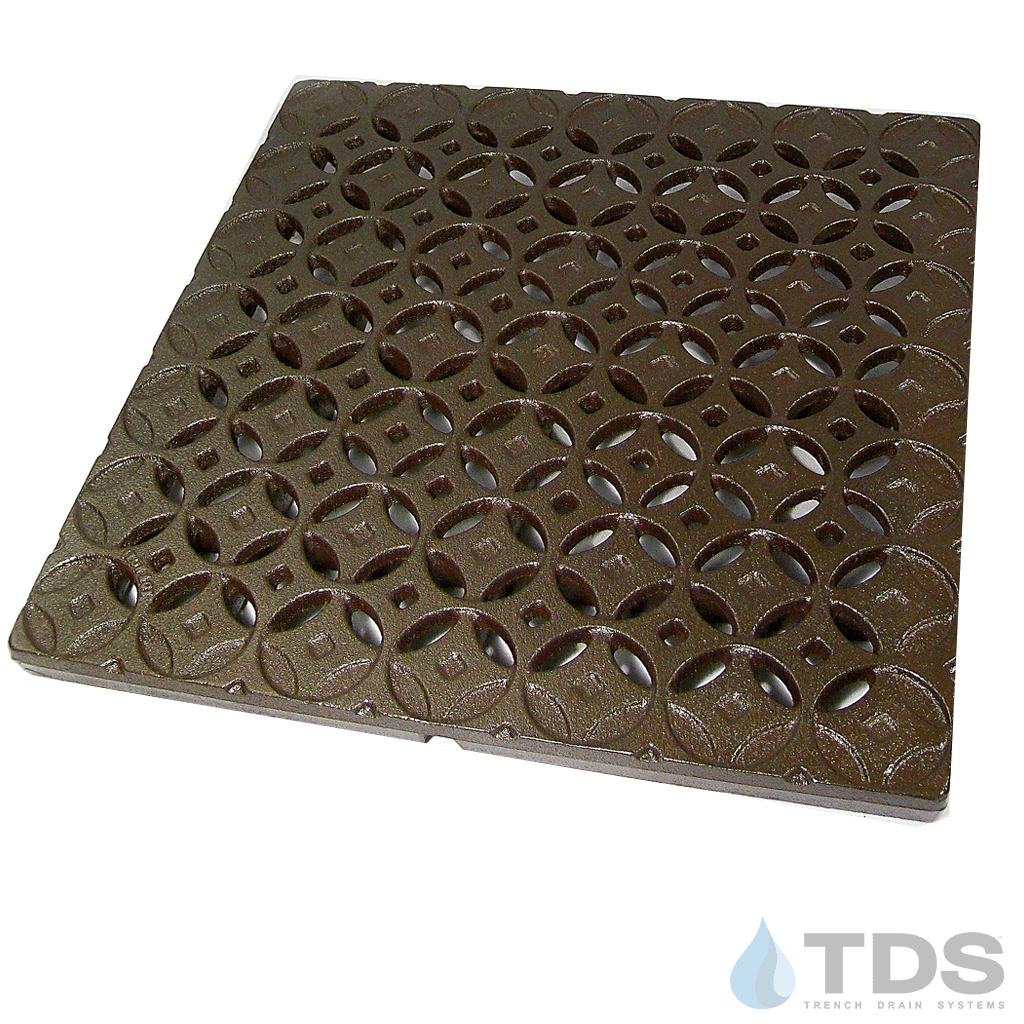

Iron Age IA-INTER-CB18-BF Class B Interlaken Cast Iron 18" x 18" Grate - BoOF

Grate Width: 18.0" x 18.0" for NDS 1800 Series

Grate Thickness: 1.00"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: Iron Age Designs

System: 1800 Series

Grate Load Class: Class B

Grate Pattern: INTERLAKEN

Grate Pattern Style: GEOMETRIC

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational, and Transportation

Use as catch basin grate or classic stepping stone.

Actual Dimensions: 16.78″ [426 mm] x 16.78″ [426 mm] x 1″ [25.4 mm]

Large project? Request a Quote

The Interlaken pattern for the NDS® 18x18 catch basin is available in either the raw casting or Baked on Oil Finish (BooF).

(There may be slight dimension variances on cast iron products)

Actual Dimensions: 16.78" [426 mm] x 16.78" [426 mm] x 1" [25.4 mm]

Specification Sheet for IA-INTER-CB18

Designed to fit: NDS 1800 Series Catch Basins

What is Baked On Oil Finish? Click Here to learn more.
