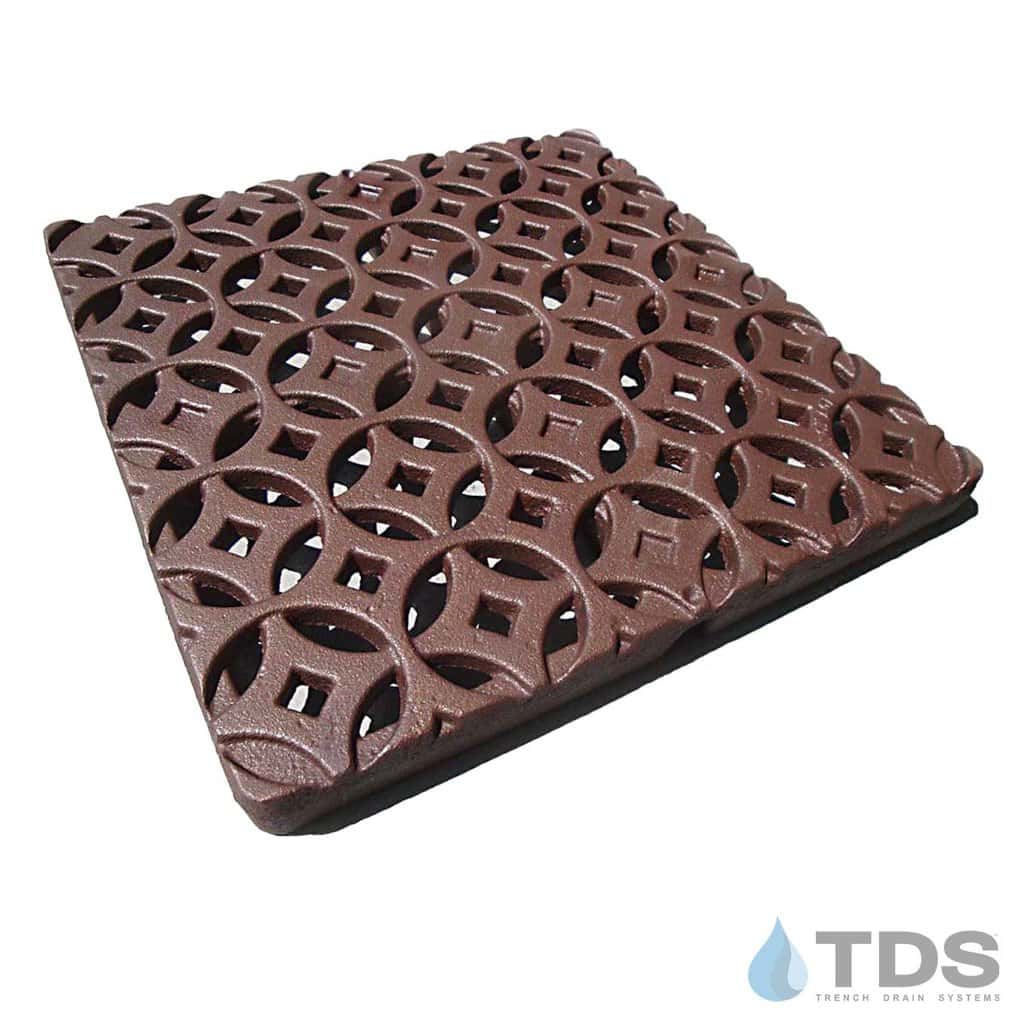

Iron Age IA-INTER-CB12-BF Class B Interlaken Cast Iron 12" x 12" Grate - BoOF

Grate Width: 12.0" x 12.0" for NDS 1200 Series

Grate Thickness: 1.125"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: Iron Age Designs

System: 1200 Series

Grate Load Class: Class B

Grate Pattern: INTERLAKEN

Grate Pattern Style: GEOMETRIC

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, and Sports Complex - Recreational

From Iron Age – Made in USA.

Actual Dimensions: 11.67″ [297 mm] x 11.678″ [297 mm] x 1.13″ [29 mm]

Large project? Request a Quote

The Interlaken pattern for the NDS® 12x12 catch basin is available in either the raw casting or Baked on Oil Finish (BooF).

(There may be slight dimension variances on cast iron products)

Actual Dimensions: 11.67" [297 mm] x 11.678" [297 mm] x 1.13" [29 mm]

Specification Sheet for IA-INTER-CB12

Designed to fit: NDS 1200 Series Catch Basins

Please allow an additional 2 weeks for delivery of BoOF products.

What is Baked On Oil Finish? Click Here to learn more.
