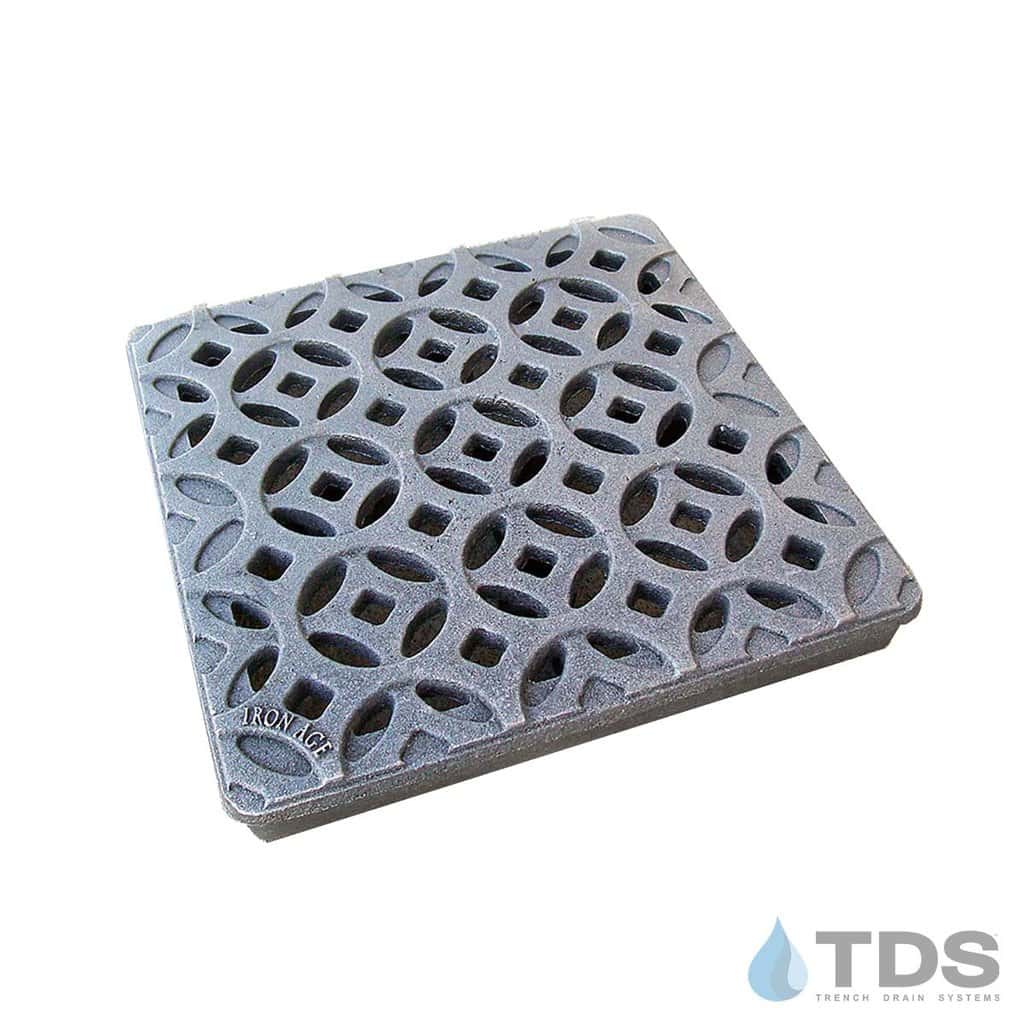

Iron Age IA-INTER-CB09 Class B Interlaken Cast Iron 9" x 9" Grate - RAW

Grate Width: 9.0" x 9.0" for NDS 900 Series

Grate Thickness: 1.125"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Iron Age Designs

System: 900 Series

Grate Load Class: Class B

Grate Pattern: INTERLAKEN

Grate Pattern Style: GEOMETRIC

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Decorative, Residential, and Sports Complex - Recreational

From Iron Age – Made in USA.

Actual Dimensions: 8.8″ [224 mm] x 8.8″ [224 mm] x 1.13″ [29 mm]

Large project? Request a Quote

The Interlaken pattern for the NDS® 9x9 catch basin is available in either the raw casting or Baked on Oil Finish (BooF).

(There may be slight dimension variances on cast iron products)

Actual Dimensions: 8.8" [224 mm] x 8.8" [224 mm] x 1.13" [29 mm]

Specification Sheet for IA-INTER-CB09

Designed to fit: NDS 9x9 Catch Basin

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

What is Baked On Oil Finish? Click Here to learn more.
