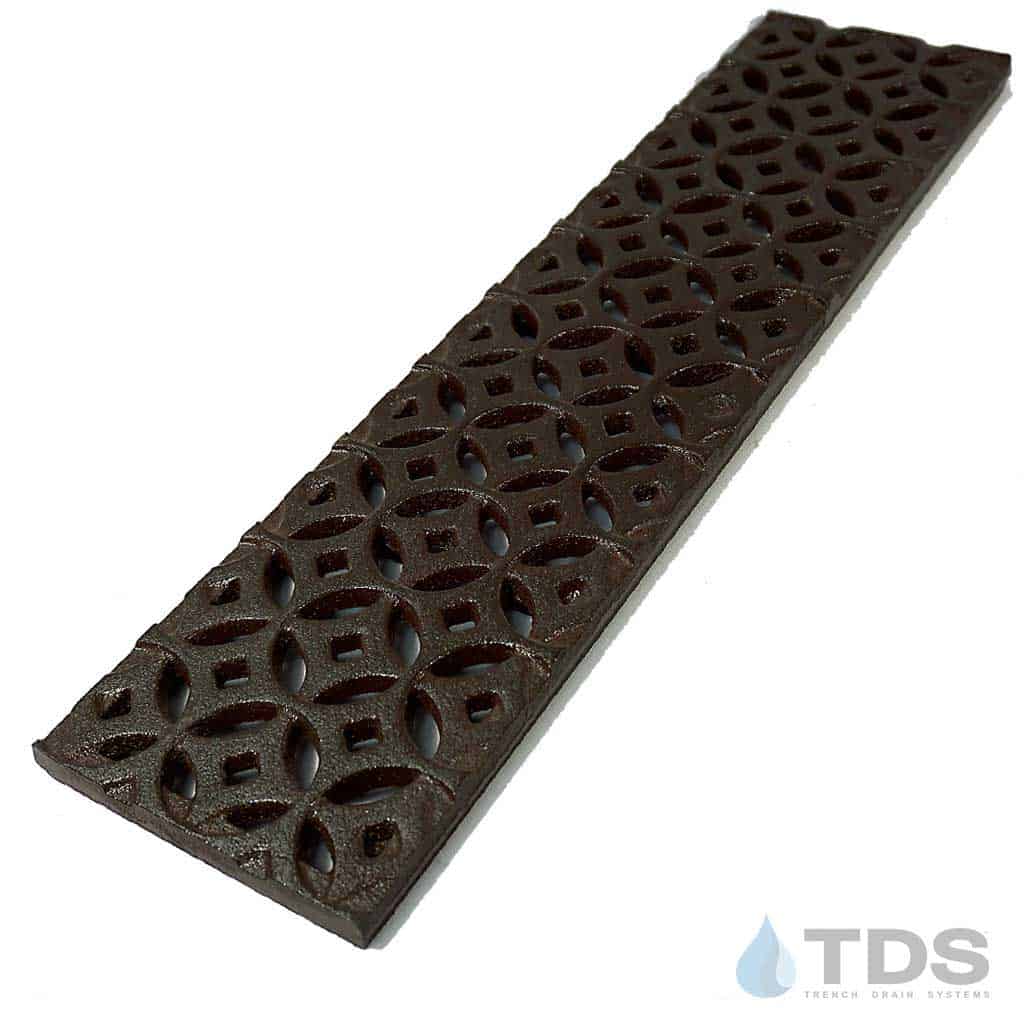

Iron Age IA-INTER-0624-BF Class B Interlaken Cast Iron 6″ x 24″ Grate - BoOF

Grate Width: 6.00" for NDS DuraSlope

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: Iron Age Designs

System: Dura Slope

Grate Load Class: Class B

Grate Pattern: INTERLAKEN

Grate Pattern Style: GEOMETRIC

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application:

Decorative cast iron Interlaken pattern 6"x24" grate for the NDS® Dura Slope is available in a raw cast iron or Baked on Oil Finish (BooF). Grates are suitable for

(There may be slight dimension variances on cast iron products)

Actual Dimensions: 5.88" [149 mm] x 24" [610 mm] x .75" [19 mm]

Specification Sheet for IA-INTER-0624

Designed to fit: NDS Dura Slope

Locking Devices (2 per grate) sold separately: NDS-629 (Screws) & DS-122 (Lock Bar)
