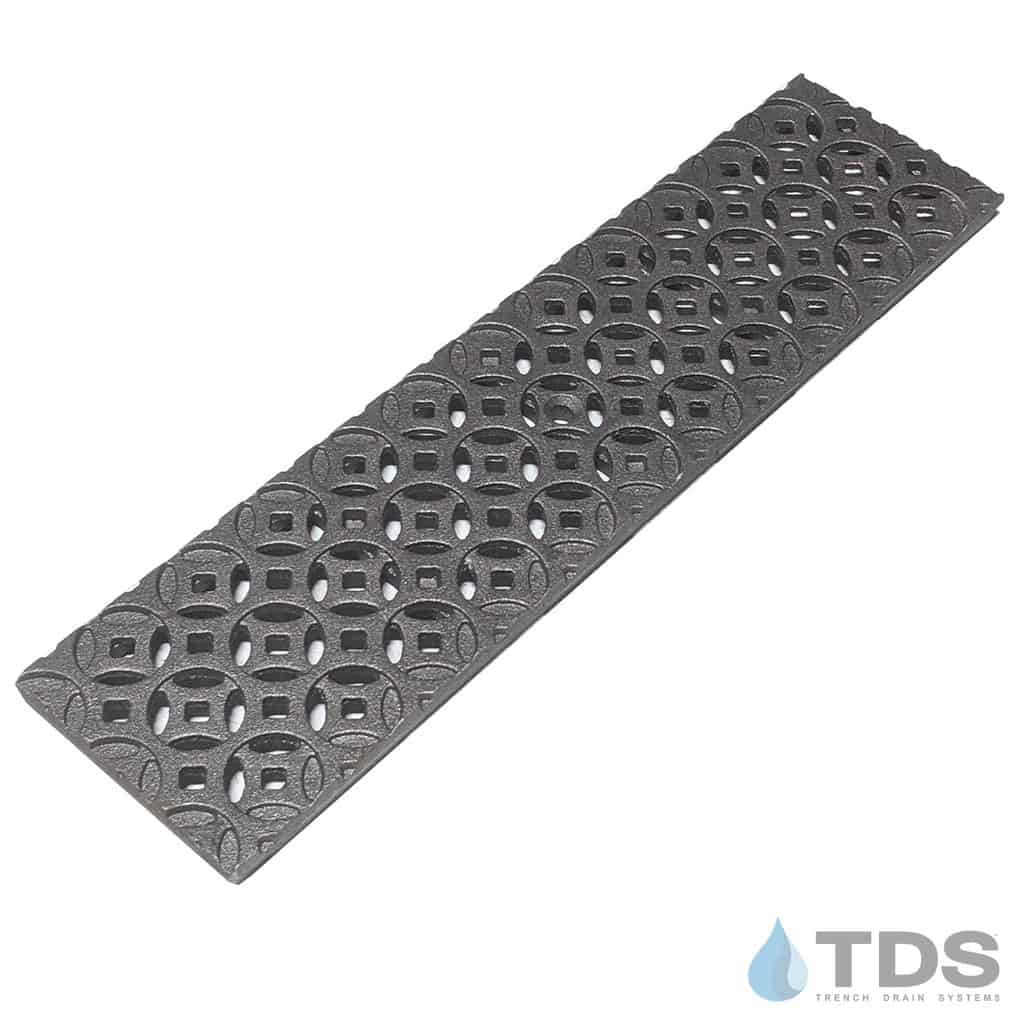

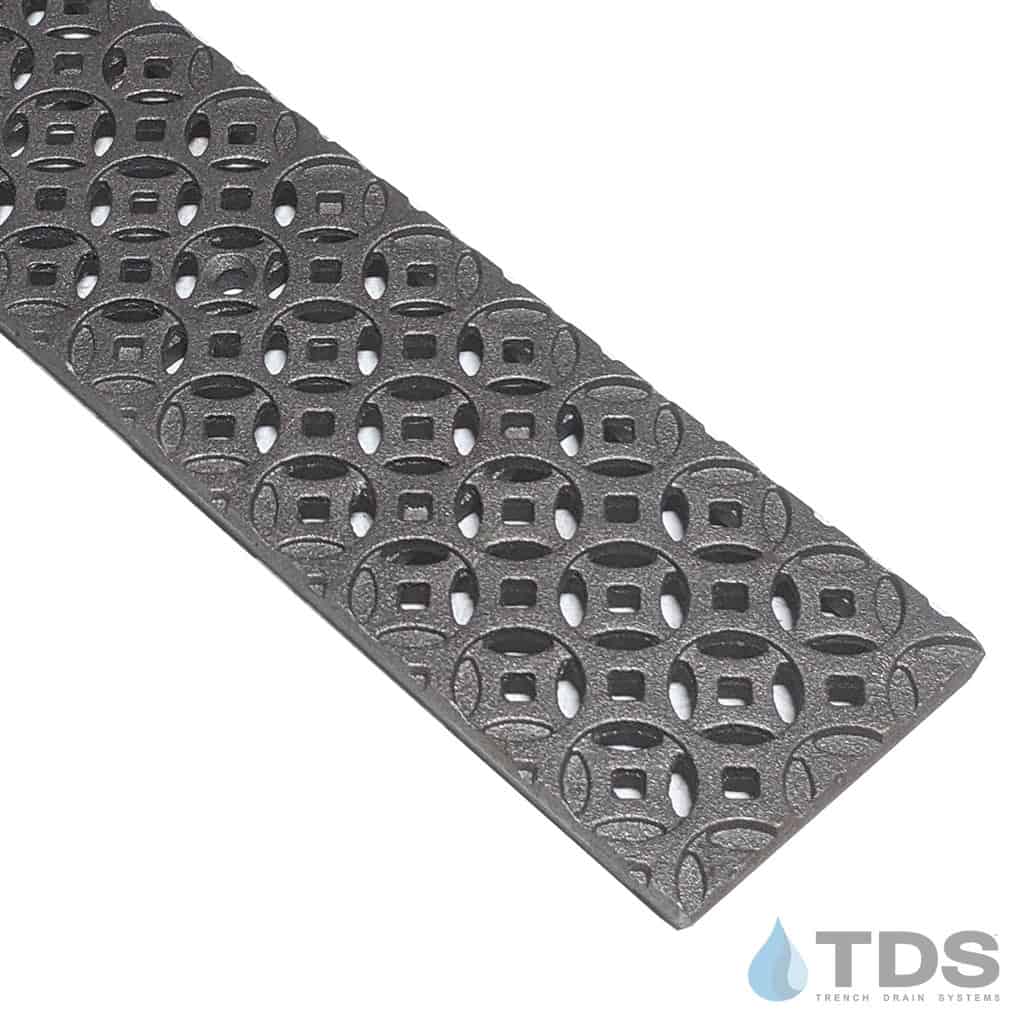

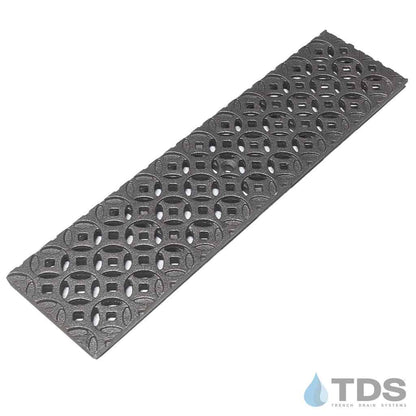

Iron Age IA-INTER-0520-HP 5" HP Interlaken Cast Iron Grates Class B - Raw

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Iron Age Designs

System: D100, U100K, U100KX, M100V, M100K, M100KX, HYDROPLUS, and HYDROPLUS MINI

Grate Load Class: Class B

Grate Pattern: INTERLAKEN

Grate Pattern Style: GEOMETRIC

Channel Material: Polymer Concrete - Polyester and Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None, Edging - None, Edging - Galvanized, and Edging - Stainless

Application: Decorative

Actual Dimensions: 4.813″ x 19.625″ x 13/16″
Large project? Request a Quote

Decorative cast iron trench grate designed to fit the ULMA U100, MEArin 100 Channel drain system, and others. Interlaken Heel Proof pattern is the perfect accent for patios, courtyards, driveways and sidewalks.

Actual Dimensions: 4.813" x 19.625" x 13/16"

Also available as Baked on Oil Finish

Specification Sheet for IA-INTER-0520-HP

Made in the USA

Designed to fit:

• ULMA
• MEArin 100 by MEA-Josam
• MEA J1000 by MEA-Josam
• Enviro-Flo by J.R. Smith
• Alfa Channel by MultiDrain
• Polydrain by ABT
• Other metric drain systems

Locking device sold separately.

• The LD100X-2 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-2 locking device is compatible with the ULMA M Series channel systems.
• The LD100X-2CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
• The 152531 locking device is compatible with the MEArin 100 system.

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
