Iron Age IA-INTER-0418 Class B Interlaken Cast Iron 4" x 18" Grate - RAW

Grate Width: 4.13" for NDS Spee-D

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: Iron Age Designs

System: Spee-D

Grate Load Class: Class B

Grate Pattern: INTERLAKEN

Grate Pattern Style: GEOMETRIC

Channel Material:

Channel Frame / Edging:

Application: Decorative, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

Iron Age cast iron grates – Made in USA.

Actual Dimensions: 4.09″ [104 mm] x 17.88″ [454 mm] x .75″ [19 mm]

Large project? Request a Quote

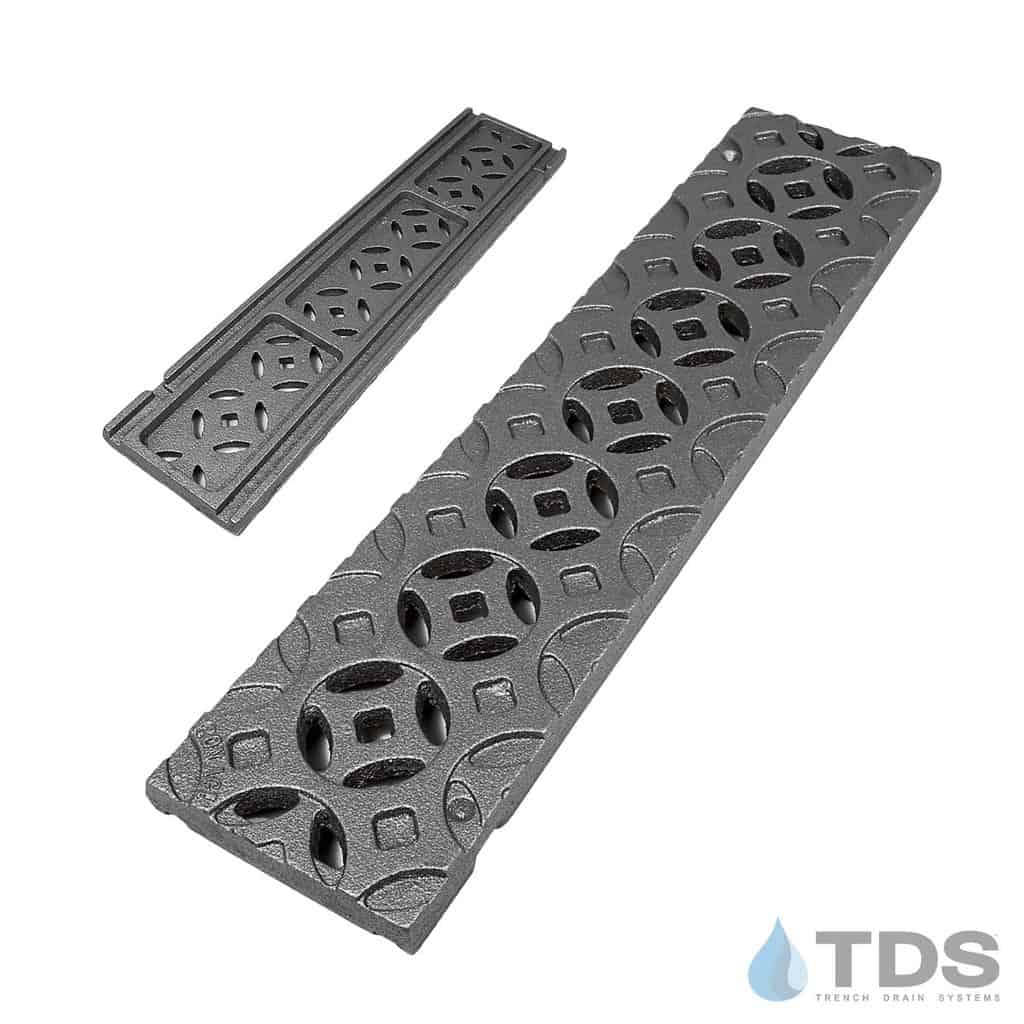

The Interlaken pattern for the NDS® Spee-D is available in either the raw casting or Baked on Oil Finish (BooF).

(There may be slight dimension variances on cast iron products)

Actual Dimensions: 4.09" [104 mm] x 17.88" [454 mm] x .75" [19 mm]

Specification Sheet for IA-INTER-0418

Designed to fit: NDS Spee-D Channel

Please note that all raw cast-iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.

What is Baked On Oil Finish? Click Here to learn more.
