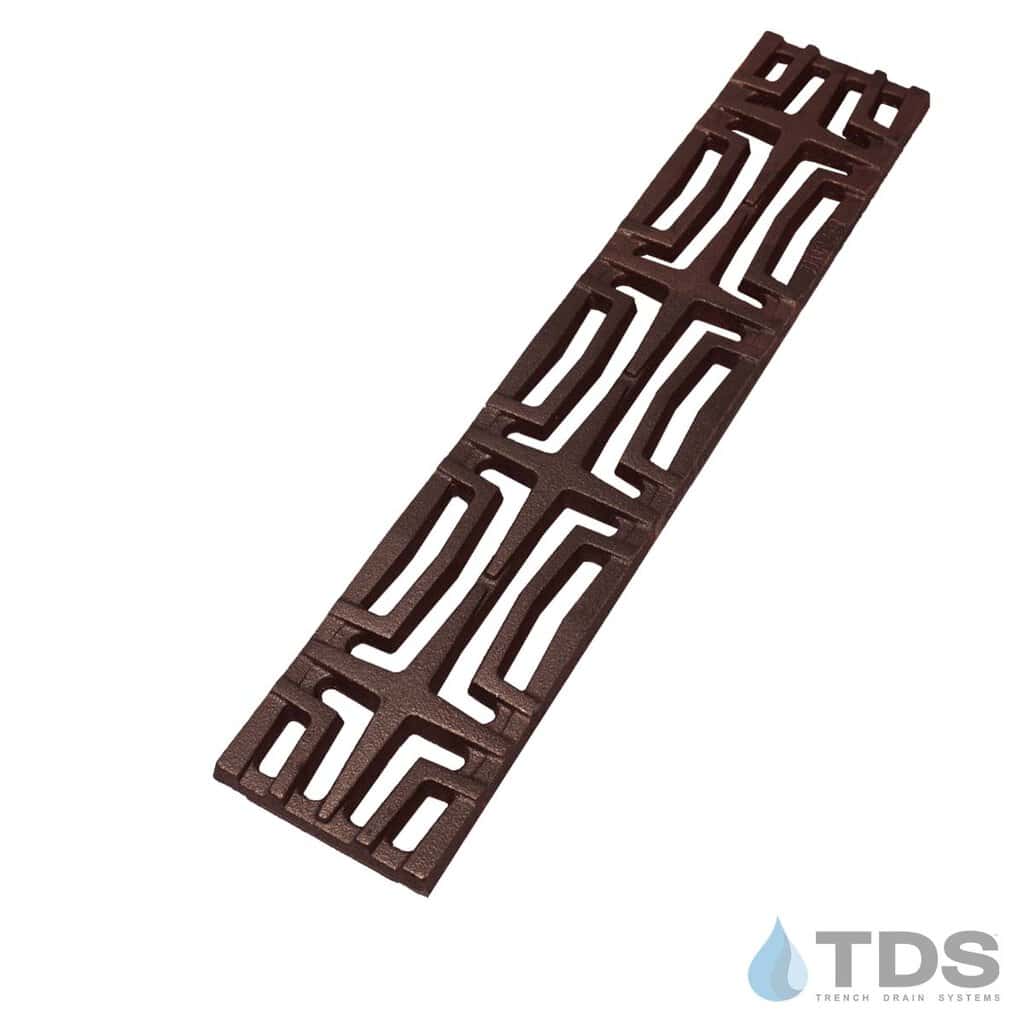

Iron Age IA-CARB-0520-BF Class B Carbochon Cast Iron 122mm x 500mm Grates - BoOF

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: Iron Age Designs

System: D100, U100K, U100KX, M100V, M100K, M100KX, HYDROPLUS, and HYDROPLUS MINI

Grate Load Class: Class B

Grate Pattern: CARBOCHON

Grate Pattern Style: GEOMETRIC

Channel Material: Polymer Concrete - Polyester and Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None, Edging - None, Frame - Galvanized, and Frame - Stainless

Application: Decorative

Iron Age grate CAA5-20I21

Actual Dimensions: 4.81″ [122 mm] x 19.63″ [499 mm] x .81″ [20.5 mm]

Large project? Request a Quote

Decorative cast iron trench grate designed to fit the MEArin 100 Channel drain system and others.

Made in the USA. The Carbochon pattern is available in either the raw casting or Baked on Oil Finish (BooF).

Specification Sheet for IA-CARB-0520-BF

Actual Dimensions: 4.81" [122mm] x 19.63" [498mm] x .81" [20.57mm]

Designed to fit:

• MEArin 100 by MEA-Josam
• MEA J1000 by MEA-Josam
• Enviro-Flo by J.R. Smith
• Alfa Channel by MultiDrain
• ABT - Polydrain
• Other metric drain systems

Locking device sold separately.

• The LD100X-3 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-3 locking device is compatible with the ULMA M Series channel system.
• The LD100X-3CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
• The 141460 locking device is compatible with the MEArin 100 channel.
• The 2811B locking device is compatible with the ABT Polydrain

Please allow an additional 2 weeks for delivery of BoOF products.

What is Baked On Oil Finish (BooF)? Click Here to learn more.
