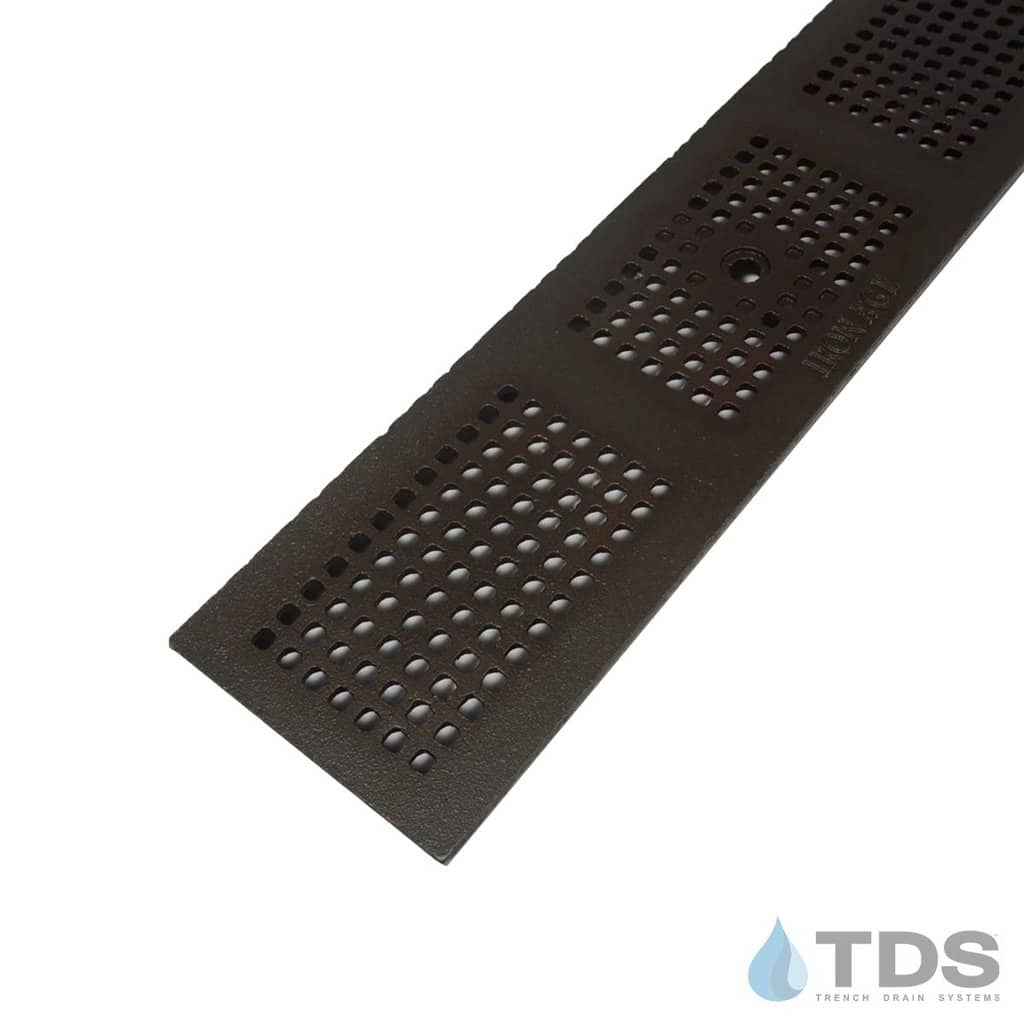

Iron Age IA-BAY-0520-HP-BF Class B HP Mission Bay Cast Iron 5x20 (Nominal) Grate - BoOF

Grate Width: 4.81" for ULMA

Grate Thickness: 0.75"

Grate Material / Color / Finish: Ductile/Cast Iron - Baked on Oil Finish

Manufacturer: Iron Age Designs

System: D100, U100K, U100KX, M100V, M100K, M100KX, HYDROPLUS, and HYDROPLUS MINI

Grate Load Class: Class B

Grate Pattern: MISSION BAY

Grate Pattern Style: PERFORATED

Channel Material: Polymer Concrete - Polyester and Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None, Edging - None, Frame - Galvanized, and Frame - Stainless

Application: Decorative

Iron Age grate MBA5-20I21HP

Actual Dimensions: 4.81″ [122mm] x 19.56″ [498mm] x .81″ [20.57mm]

Large project? Request a Quote

Decorative Iron Age grate with the Mission Bay Heel-Proof pattern and is available in either the raw casting or Baked on Oil Finish.

Actual Dimensions: 4-13/16" x 19-9/16" x 13/16"

Specification Sheet IA-BAY-0520-HP

Designed to fit:

• • ULMA - HYDROPLUS
  • ULMA - U100 and M100
  • MEA-Josam - MEArin 100
  • MEA-Josam - MEA J1000
  • MultiDrain - Alfa Channel
  • J.R. Smith - Enviro-Flo
  • ABT - Polydrain
  • Other metric drain systems

Locking device sold separately.

• The LD100X-3 locking device is compatible with the ULMA U100, D100 and HYDROPLUS channel systems.
• The LD100MX-3 locking device is compatible with the ULMA M Series channel system.
• The LD100X-3CB locking device is compatible with the ULMA AD100 & AK100 Catch Basins.
• The 141460 locking device is compatible with the MEArin 100 channel.
• The 2811B locking device is compatible with the ABT Polydrain channel.

What is Baked On Oil Finish? Click Here to learn more.
