Heavy Duty Gray Iron USF 6516 Frame Rail 1.5" x 48"

Heavy Duty Gray Iron USF 6516 Frame Rail 1.5" x 48"

Skip to product information
1 of 2

Drainage Kits

SKU:USF 6516

Grate rail sold as a single 48" piece
Regular price $105.60 USD
Regular price $0.00 USD Sale price $105.60 USD
Sale Sold out
View full details

Additional Information

  • Grate Width:
  • Grate Thickness: 1.50"
  • Product Type: Grate
  • Grate Material / Color / Finish: Ductile/Cast Iron - Raw
  • Manufacturer: USF
  • System: Foundry
  • Grate Load Class:
  • Grate Pattern: Slotted
  • Grate Pattern Style: Slotted
  • Channel Material: Form Your Own OR Site Built
  • Frame/Edging: Ductile Iron
  • Application:

Description

Grate rail sold as a single 48″ piece

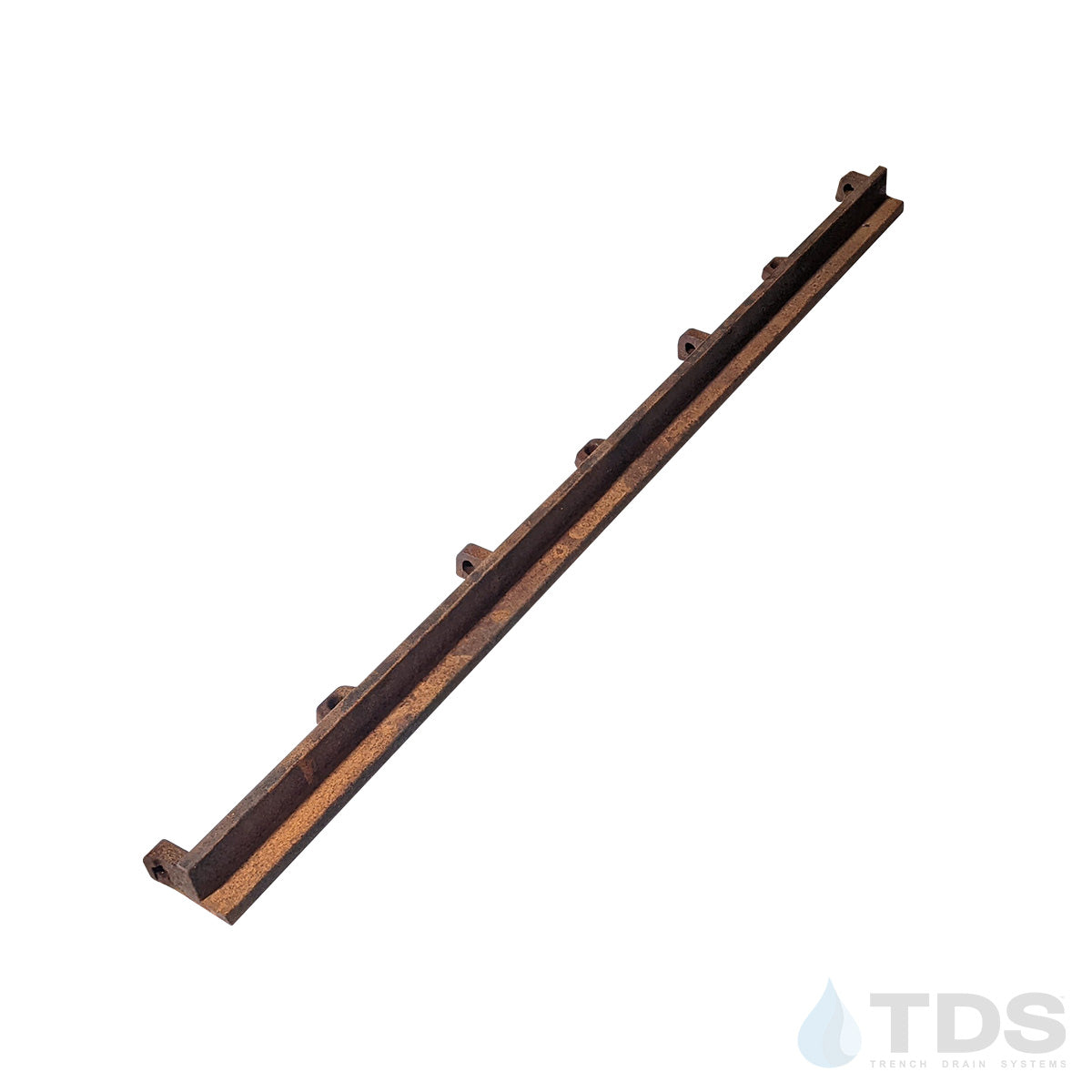

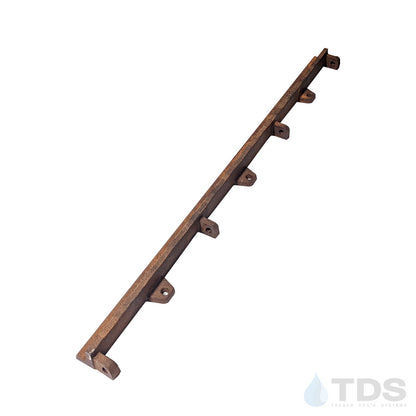

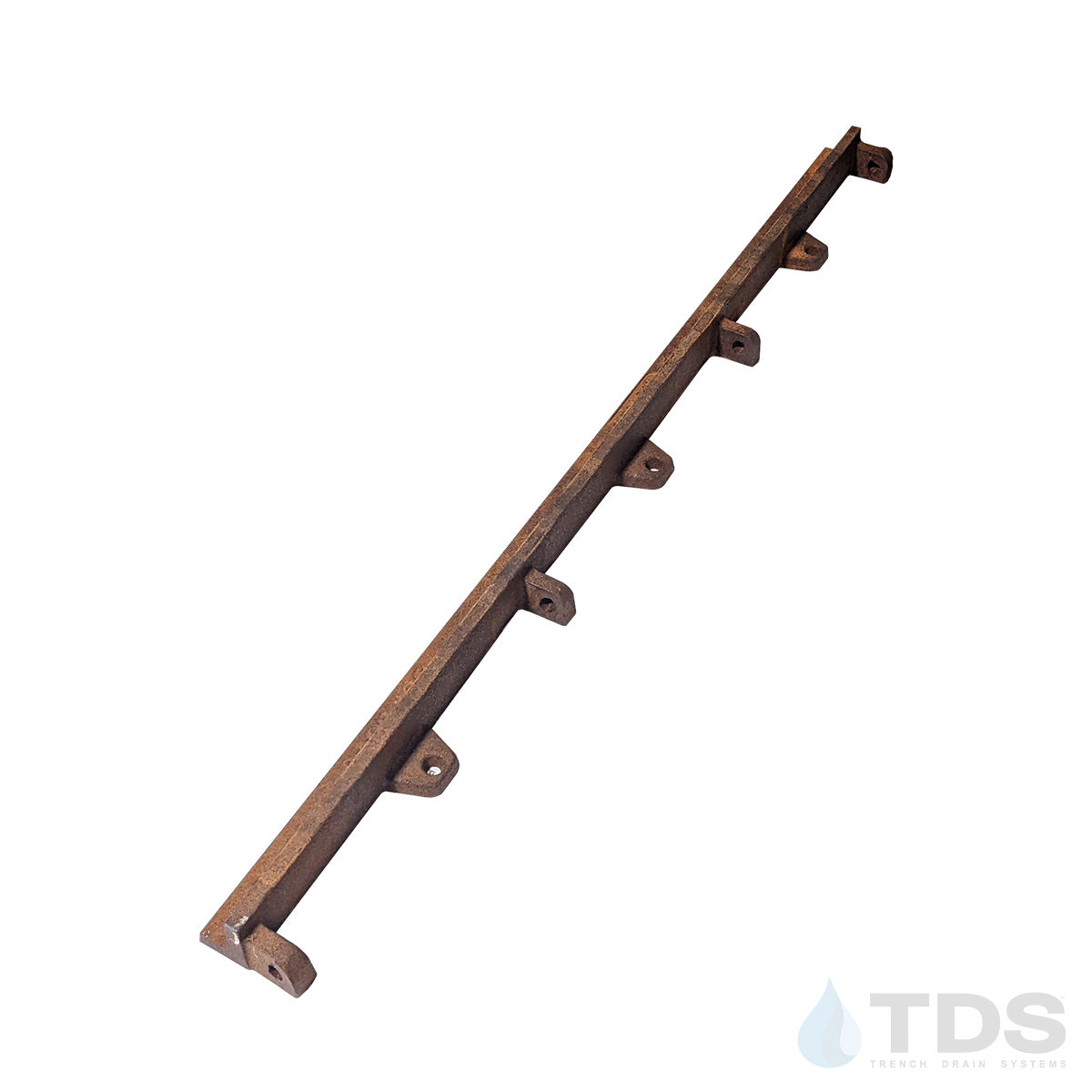

Cast iron frames provide an ideal design option for poured trench drain systems by providing a preformed ledge for grates to sit on. The 1.5"H x 48"L frame holds a 1.5" thick grate (grates not included). The USF 6516 frame has low-profile anchors built in to help lock it securely into concrete during frame installation.

NOTE: Due to the weight of this product, expect higher than normal shipping costs. Contact Customer service to explore possible alternatives (ground vs. freight).

Purchase grates separately.

Price shown is for 1 frame bar. Frame bar sold as a 4ft section. Can be cut in half to add a 2 foot to a run.

Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as load class C. The same is true should the channel be rated as load class C and the grates are rated as load class A; the system as a whole would be rated as load class A.
