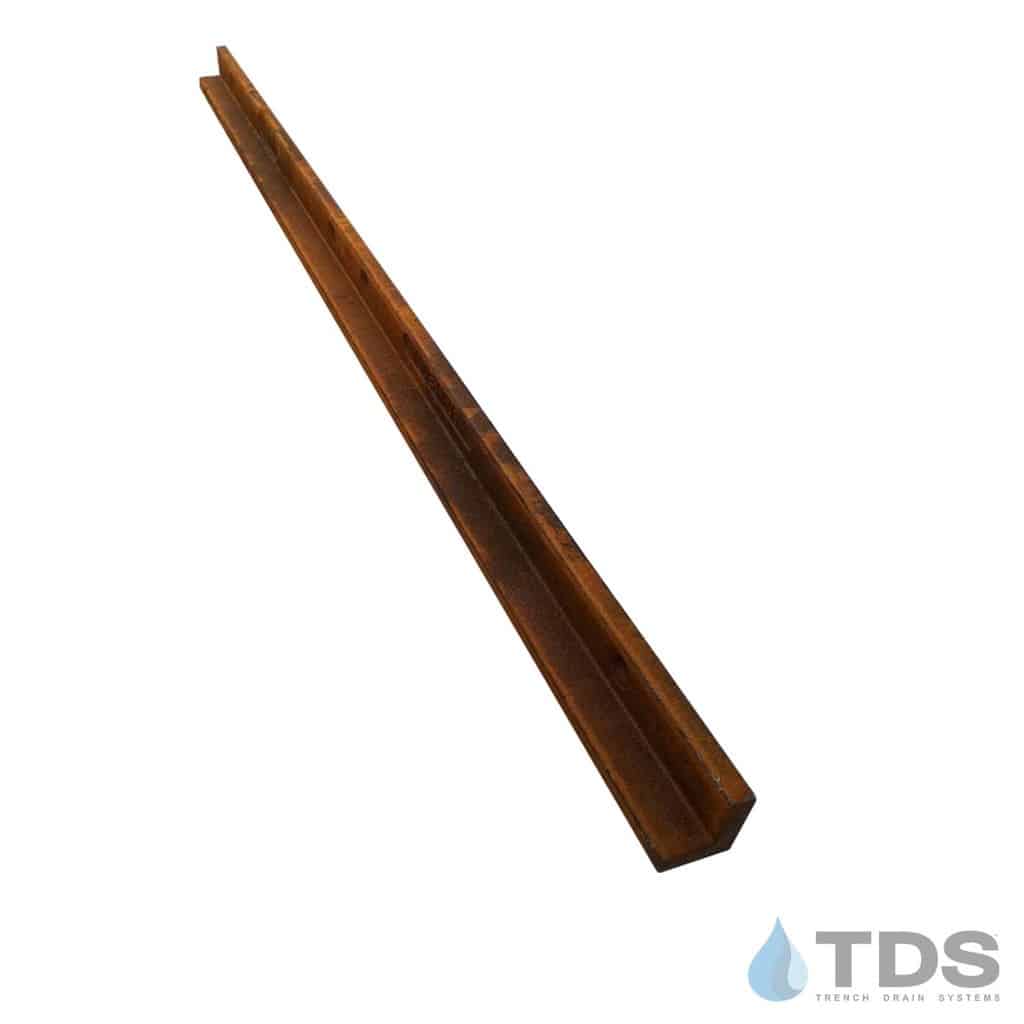

Heavy Duty Cast Iron EJ 6950 Frame Rail 1.5" x 48"

Grate Width:

Grate Thickness: 1.50"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: EJCO (East Jordan)

System: Foundry

Grate Load Class:

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Form Your Own OR Site Built

Channel Frame / Edging: Frame - Ductile Iron

Application:

Grate rail sold as a single 48″ piece

Can be cut in half for 24″ sections

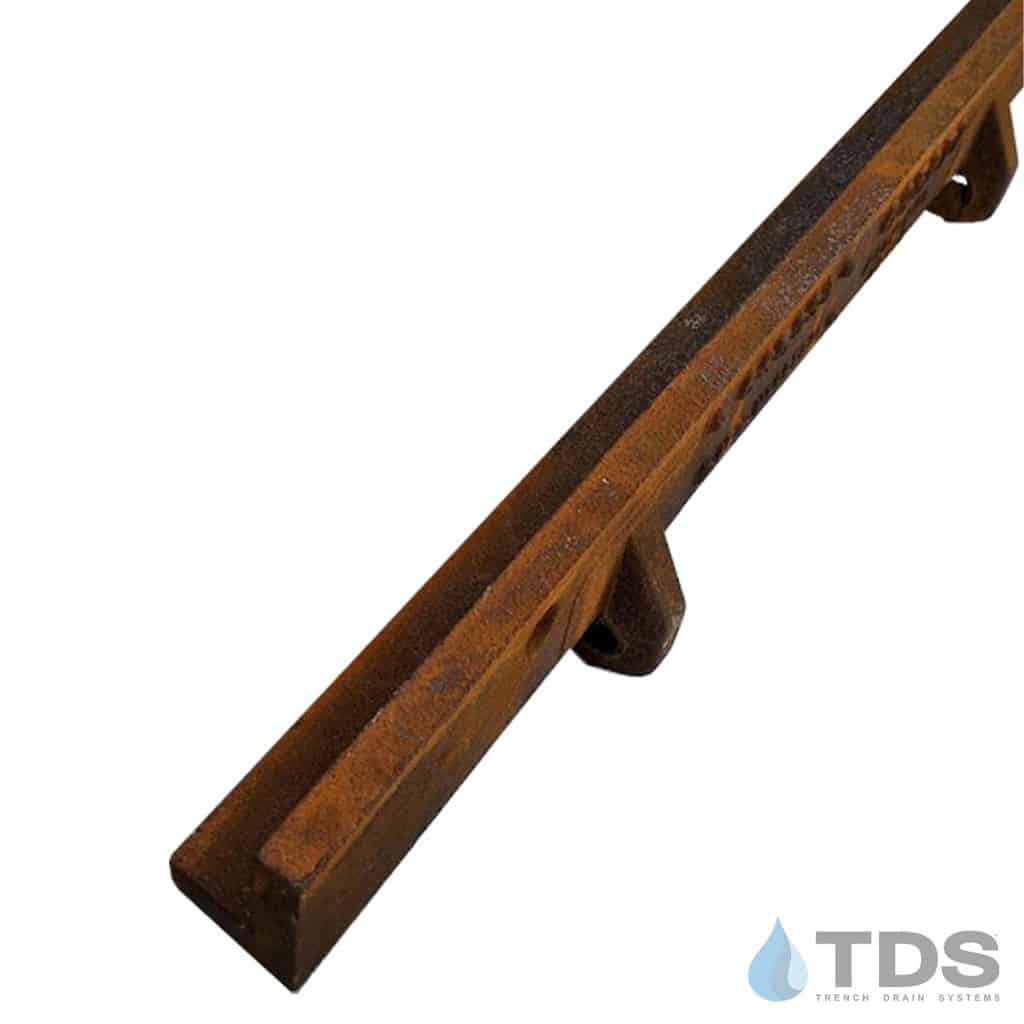

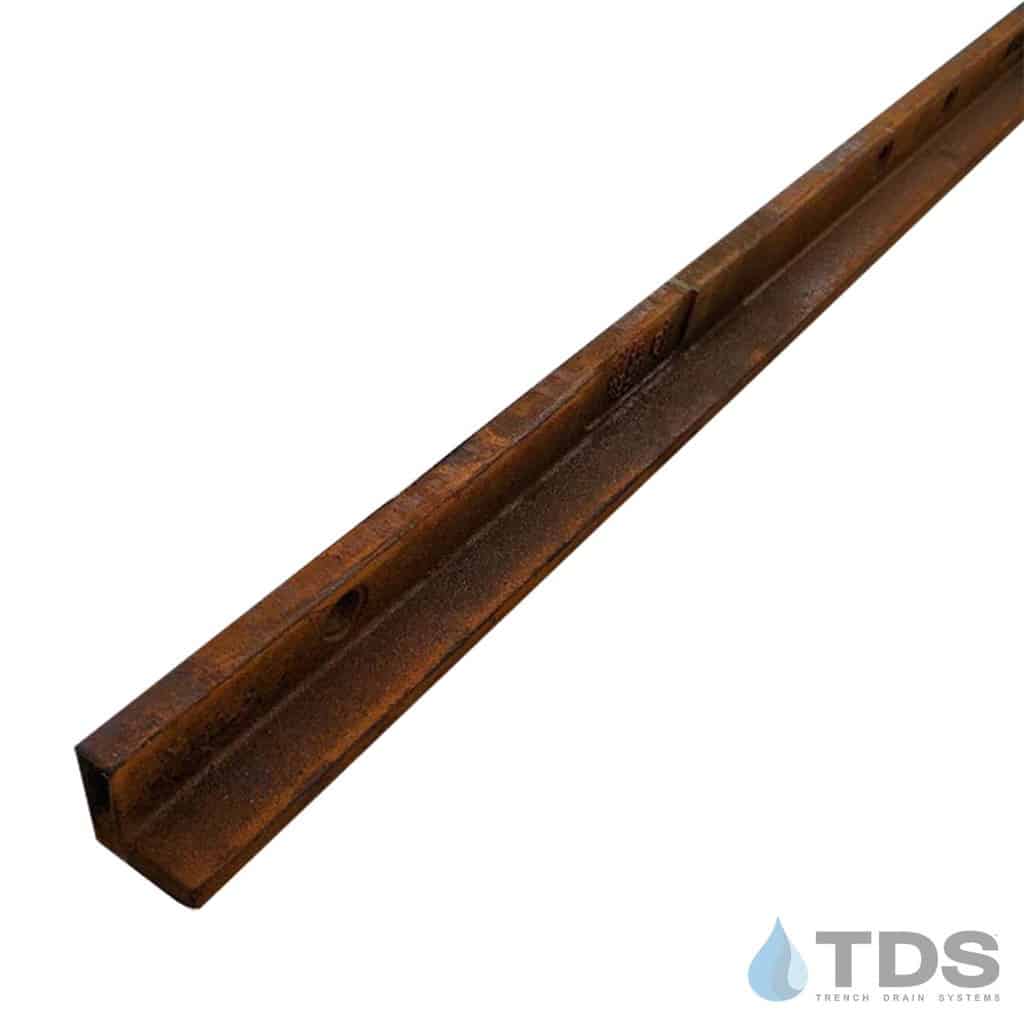

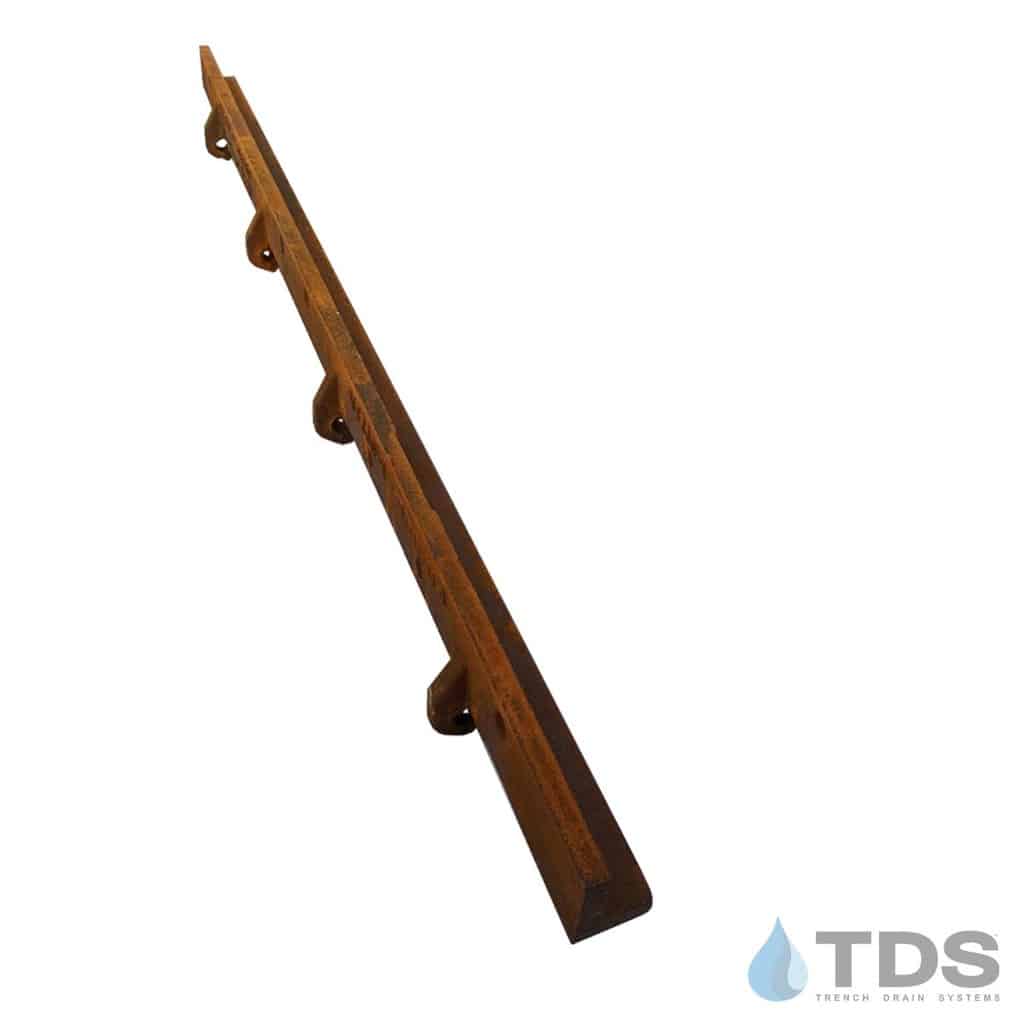

Cast iron frames provide an ideal design option for poured trench drain systems by providing a preformed ledge for grates to sit on. The 1.5"H x 48"L frame holds a 1.5" thick grate (grates not included). The EJ6950 frame has low-profile anchors built in to help lock it securely into concrete during frame installation.

NOTE: Due to the weight of this product, expect higher than normal shipping costs. Contact Customer service to explore possible alternatives (ground vs. freight).

Purchase grates separately.

Price shown is for 1 frame bar. Frame bar sold as a 4ft section. Can be cut in half to add two feet to a run.

EJ6950 Frame Rail Specification Sheet

Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as load class C. The same is true should the channel be rated as load class C and the grates are rated as load class A; the system as a whole would be rated as load class A.
