GF 22024 Heavy-Duty Gray Iron Slotted 20" x 24" x 2" Grate | General Foundry

Grate Width: 14.00"

Grate Thickness: 2.00"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: General Foundry

System: Foundry

Grate Load Class: H-20

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Form Your Own OR Site Built

Channel Frame / Edging: Edging - Ductile Iron, Frame - Fibergrate - EZ, Frame - Fibergrate - WYE, Frame - Stainless, and Frame - Galvanized

Application: General Purpose Drainage - External, Transportation, and Residential

GF 22024 General Foundry grate is suitable for a variety of heavy-duty applications and is bike-safe. This grate conforms to ASTM A48/A48M-03 specifications, Class 30B. Heavy Duty - Suitable for AASHTO H-20-44 and HS-20-44 highway loading.

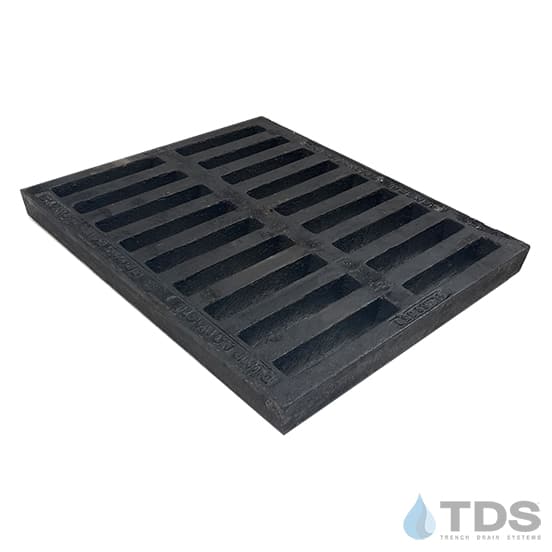

Gray Iron heavy-duty grate that measures 20" x 24" x 2". (Actual dimensions: 20" x 23.87" x 2").

Heavy Duty Gray Iron Grate

Large project? Request a Quote

NOTE: Due to the weight of this product, expect higher-than-normal shipping costs.

All raw gray iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
