GF 21429 ADA Heavy-Duty Gray Iron Slotted 14" x 24" x 2" Grate | General Foundry

Grate Width: 14.00"

Grate Thickness: 2.00"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: General Foundry and TDS (Trench Drain Systems)

System: Foundry

Grate Load Class: H-20

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Form Your Own OR Site Built

Channel Frame / Edging: Edging - Ductile Iron, Frame - Fibergrate - EZ, Frame - Fibergrate - WYE, Frame - Stainless, and Frame - Galvanized

Application: Transportation, Residential, and General Purpose Drainage - External

GF 21429 General Foundry grate is ADA-compliant, bike-safe, and suitable for a variety of heavy-duty applications. This grate conforms to ASTM A48/A48M-03 specifications, Class 30B. Heavy Duty - Suitable for AASHTO H-20-44 and HS-20-44 highway loading.

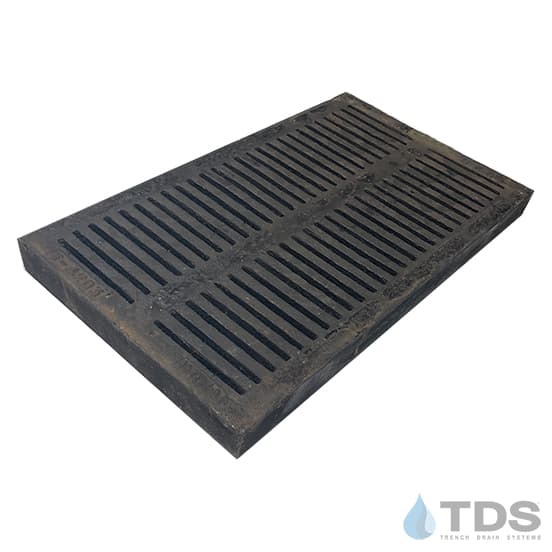

Gray Iron heavy-duty grate that measures 14" x 24" x 2". (Actual dimensions: 14" x 23.87" x 2").

ADA-Compliant Heavy Duty Gray Iron Grate

Large project? Request a Quote

NOTE: Due to the weight of this product, expect higher-than-normal shipping costs.

All raw gray iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
