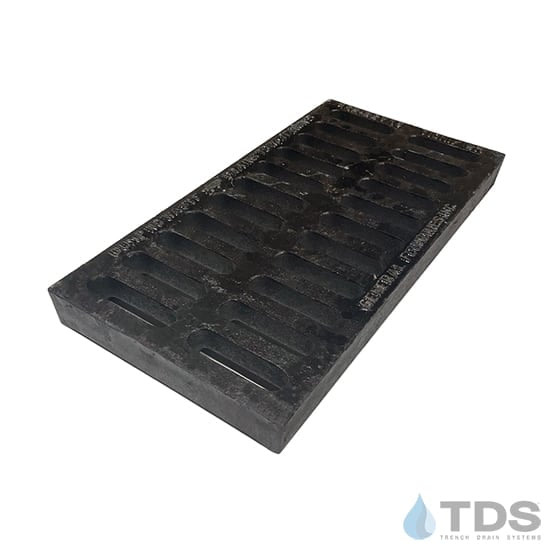

GF 21224 Heavy-Duty Gray Iron Slotted 12" x 24" x 2" Grate | General Foundry

Grate Width: 12.00"

Grate Thickness: 2.00"

Grate Material / Color / Finish: Ductile/Cast Iron - Raw

Manufacturer: General Foundry

System: Foundry

Grate Load Class: H-20

Grate Pattern: SLOTTED

Grate Pattern Style: SLOTTED

Channel Material: Form Your Own OR Site Built

Channel Frame / Edging: Edging - Ductile Iron, Frame - Fibergrate - EZ, Frame - Fibergrate - WYE, Frame - Stainless, and Frame - Galvanized

Application: Residential, General Purpose Drainage - External, and Transportation

GF 21224 General Foundry grate is suitable for a variety of heavy-duty applications and is bike-safe. This grate conforms to ASTM A48/A48M-03 specifications, Class 30B. Heavy Duty - Suitable for AASHTO H-20-44 and HS-20-44 highway loading.

Gray Iron heavy-duty grate that measures 12" x 24" x 2". (Actual dimensions: 12" x 23.87" x 2").

Heavy Duty Gray Iron Grate

Large project? Request a Quote

NOTE: Due to the weight of this product, expect higher than normal shipping costs.

All raw gray iron grates begin to naturally rust with exposure to any form of moisture and will appear bright orange before settling to brown.
