FG-MICRO-CB12 Class A ADA Compliant 12" x 12" Grate - Dark Gray

Grate Width: 12.0" x 12.0" for NDS 1200 Series

Grate Thickness: 1.50"

Grate Material / Color / Finish: Fiberglass - 0.75" Sq Micro-Mesh

Manufacturer: Fibergrate and TDS (Trench Drain Systems)

System: 1200 Series

Grate Load Class: Class A

Grate Pattern: MICRO-MESH

Grate Pattern Style: INDUSTRIAL

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

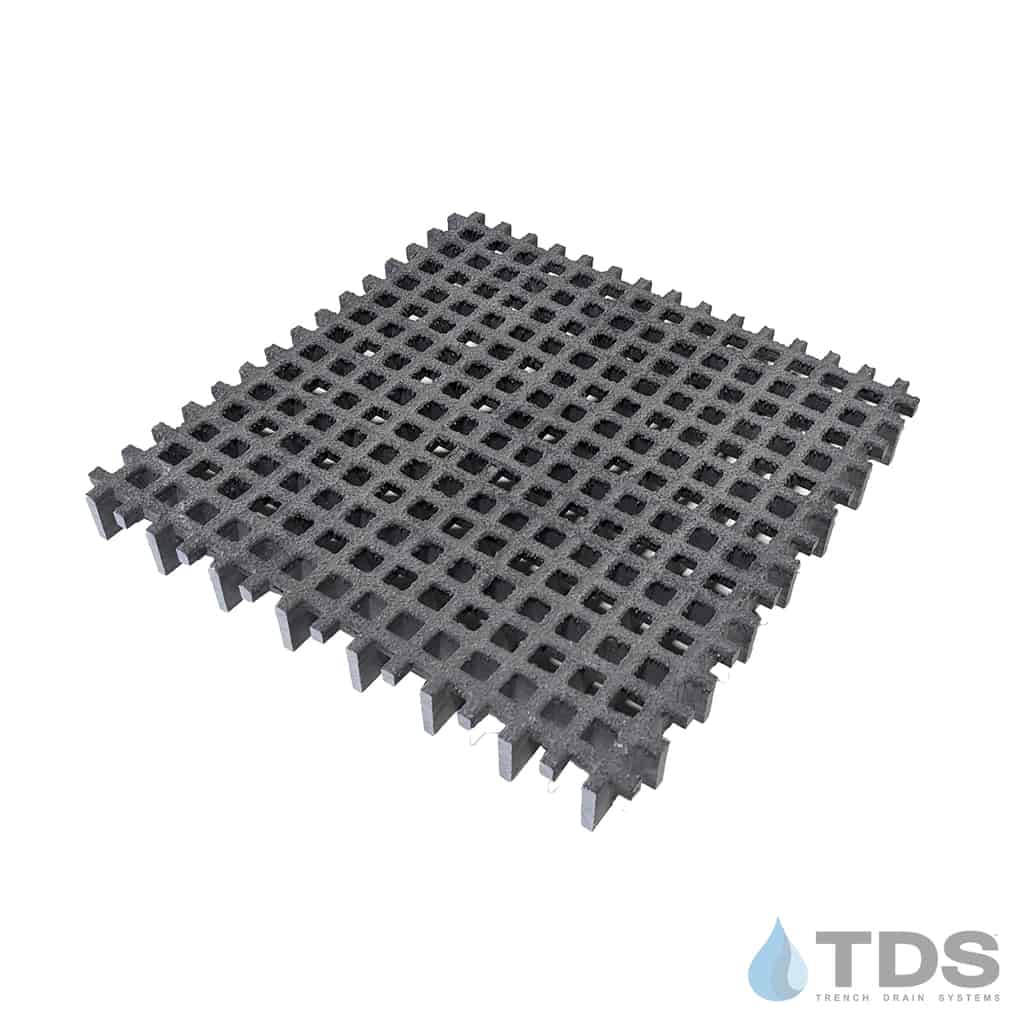

Fiberglass 12″ Micro Mesh Catch Basin rate with 3/4" x 3/4" openings for flow area. Available in dark gray. Designed to fit NDS® 1200 Series catch basins. Grates are chemically resistant, rustproof, and require minimal maintenance. Excellent for greenhouses, patios, pools, and driveways. Rated as load class A.

Actual dimensions: 11.5" x 11.5" x 1"

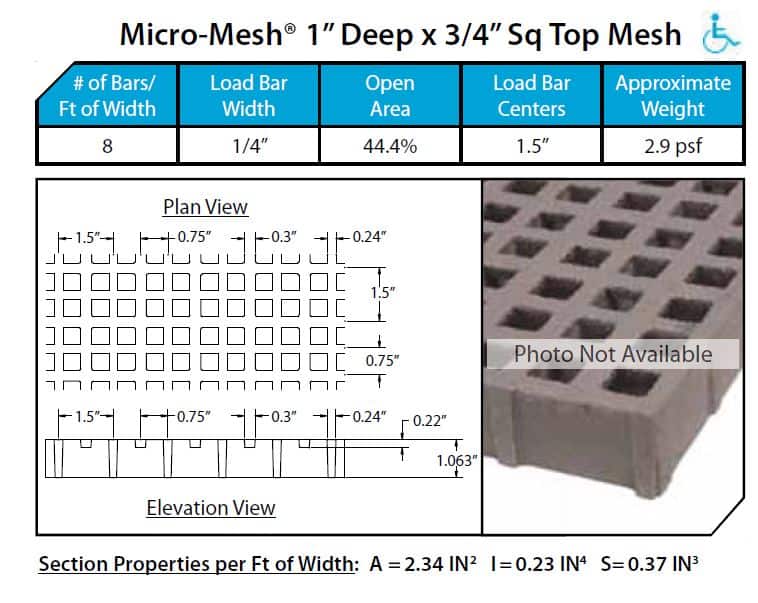

Specification Sheet for FG-MICRO-CB

Need a custom-size fiberglass grate? Request a quote today!

Want to learn more about Catch Basins? Click Here.
