FG-MICRO-CB09 Class A ADA Compliant 9" x 9" Grate - Dark Gray

FG-MICRO-CB09 Class A ADA Compliant 9" x 9" Grate - Dark Gray

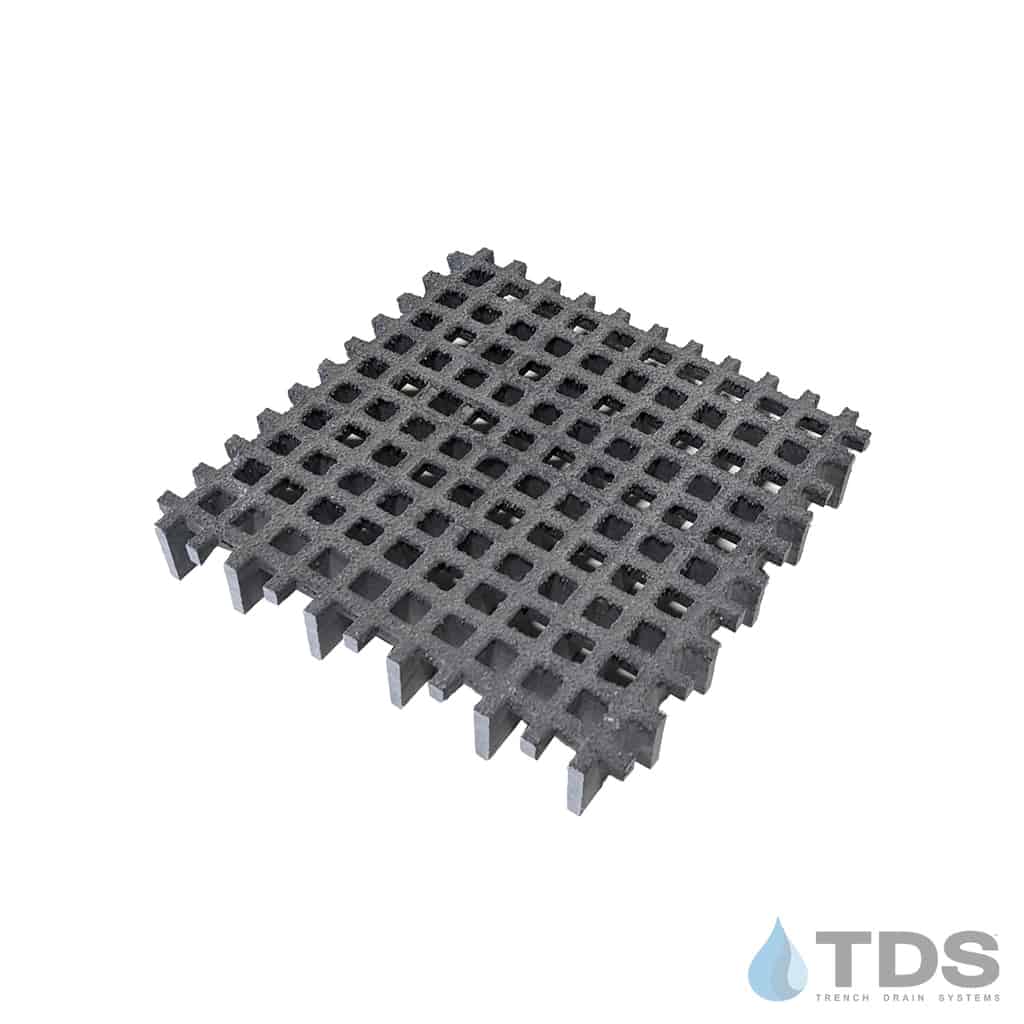

  • FG-MICRO-CB09 fiberglass catch basin 9 inch fiberglass grate
1 2

Drainage Kits

FG-MICRO-CB09

9" Micro Mesh Fiberglass Catch Basin Grate Designed to fit NDS® 900 Series catch basins
$52.78 USD
$52.78 USD
Sale Sold out
View full details

Additional Information

  • Grate Width: 8.75"
  • Grate Thickness: 1.50"
  • Product Type: Catch Basin Grate, Grate
  • Grate Material / Color / Finish: Fiberglass - 1" Micro-Mesh
  • Manufacturer: Fibergrate, TDS
  • System: 900 Series
  • Grate Load Class: A
  • Grate Pattern: MICRO-MESH
  • Grate Pattern Style: INDUSTRIAL
  • Channel Material: Plastic (PP, HDPE, PE)
  • Channel Frame / Edging: No Frame, No Edging
  • Application: Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential

Description

Fiberglass 9″ Micro Mesh grate with 3/4" x 3/4" openings for flow area. Available in dark gray. Designed to fit NDS® 900 Series catch basins. Grates are chemically resistant, rustproof, and require minimal maintenance. Excellent for greenhouses, patios, pools, and driveways. Rated as load class A.

Actual dimensions: 8.75" x 8.75" x 1"

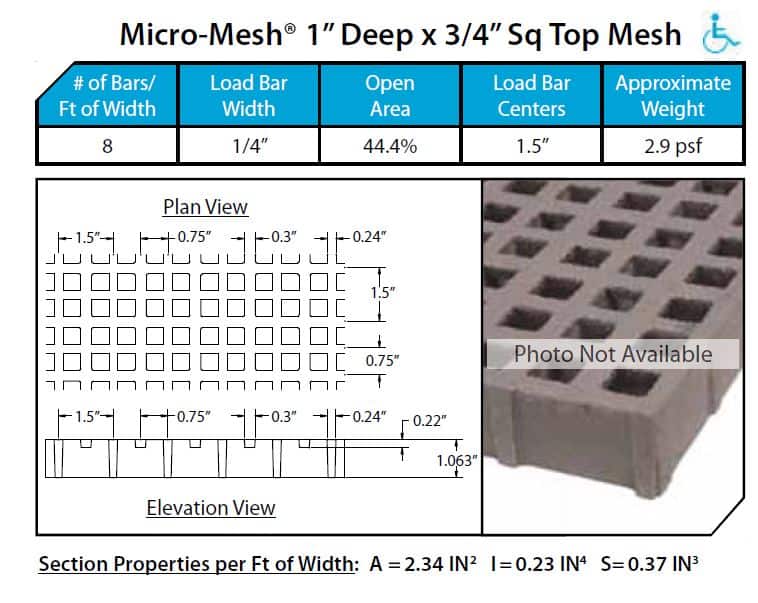

Specification Sheet for FG-MICRO-CB

Need a custom-size fiberglass grate? Request a quote today!

Want to learn more about Catch Basins? Click Here.
