FG-MICRO-1248 Micro Mesh Fiberglass ADA Compliant 12"X48"x1.5" Grate

FG-MICRO-1248 Micro Mesh Fiberglass ADA Compliant 12"X48"x1.5" Grate

Skip to product information
1 of 2

Drainage Kits

SKU:FG-MICRO-1248

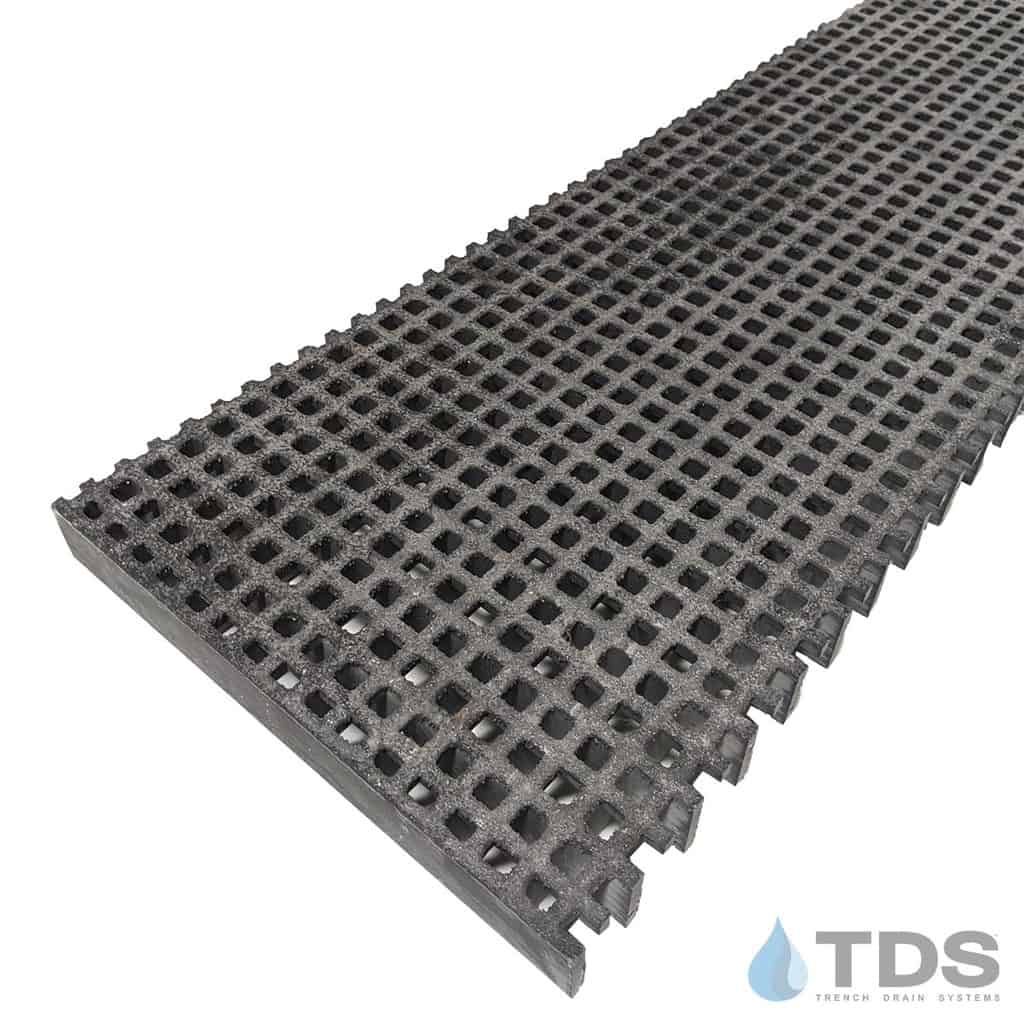

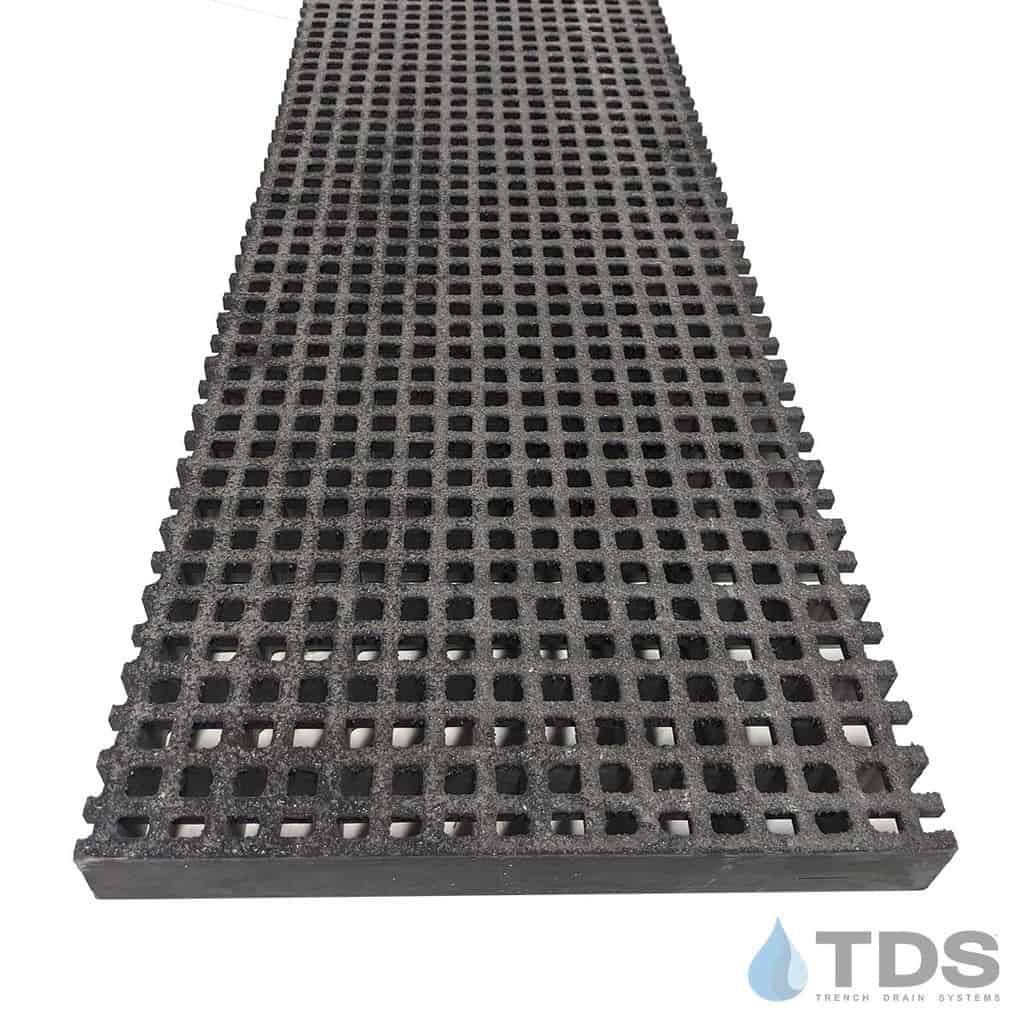

Fiberglass micro mesh grate
ADA compliant
Actual grate dimensions: 12.25" x 48" x 1.5"
Load Class C
Regular price $369.45 USD
Regular price $0.00 USD Sale price $369.45 USD
Sale Sold out
View full details

Additional Information

  • Grate Width: 12.25"
  • Grate Thickness: 1.50"
  • Product Type: Frame-Grate Grate, Grate
  • Grate Material / Color / Finish: Fiberglass - 1.0" Micro-Mesh
  • Manufacturer: Fibergrate, TDS
  • System: Fibergrate Kit
  • Grate Load Class: A
  • Grate Pattern: Micro-Mesh
  • Grate Pattern Style: Industrial
  • Channel Material: Form Your Own OR Site Built
  • Frame/Edging: Fiberglass WYE - Rail, Fiberglass EZ - Rail
  • Application: Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - Exterior, Residential

Description

Fiberglass micro mesh grate
ADA compliant
Actual grate dimensions: 12.25″ x 48″ x 1.5″
Load Class C

These ADA compliant grates are manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. Actual grate width is 12.25 inches and 1.5" thick. This grate, when properly installed, has a Load Class C traffic rating. Fiberglass replacement grates deter scrap metal thieves and can be trimmed to fit custom drainage channels.

FG-MICRO-1248 Specification Sheet

FG-734300 Locking devices (4 per grate) are sold separately. – Accepts 1/4-20 hardware (not included)

Benefits of Fiberglass Micro-Mesh Grate:

  • Corrosion resistance
  • Impact resistance
  • Non-slip grit traction layer
  • Lightweight
  • Nonconductive
  • Nonmagnetic
  • Load Class C rating*
  • ADA compliant
  • Grate open area of 44.4%
  • Grate openings 0.50"
  • Grate depth 1.5"

* Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as Load Class C. The same is true should the channel be rated as Load Class C and the grates are rated as load class A; the system as a whole would be rated as Load Class A.
