Grate Material / Color / Finish: Fiberglass - 0.75" Sq Micro-Mesh
Manufacturer: Fibergrate and TDS (Trench Drain Systems)
System: Fibergrate Kit
Grate Load Class: Class A
Grate Pattern: MICRO-MESH
Grate Pattern Style: INDUSTRIAL
Channel Material: Form Your Own OR Site Built
Channel Frame / Edging: Frame - Fibergrate - WYE and Frame - Fibergrate - EZ
Application: Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential
DESCRIPTION

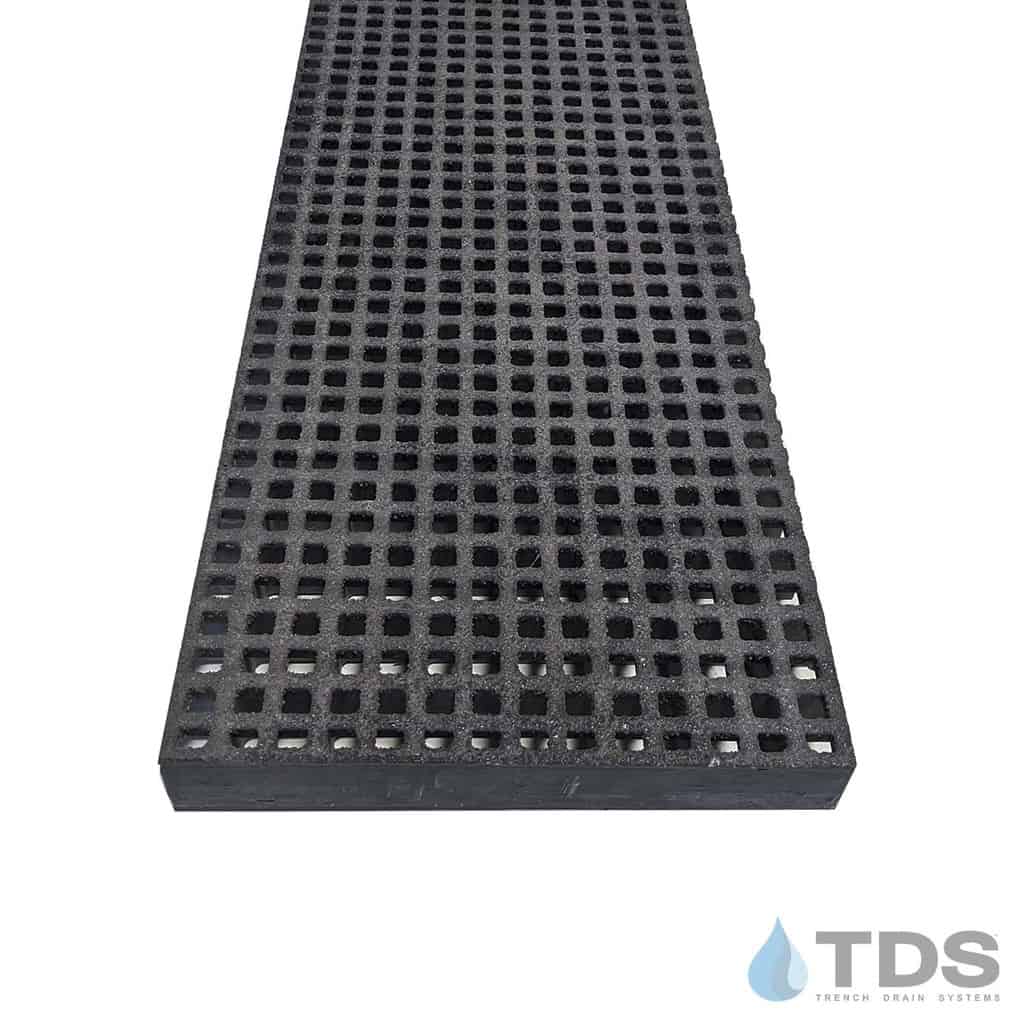

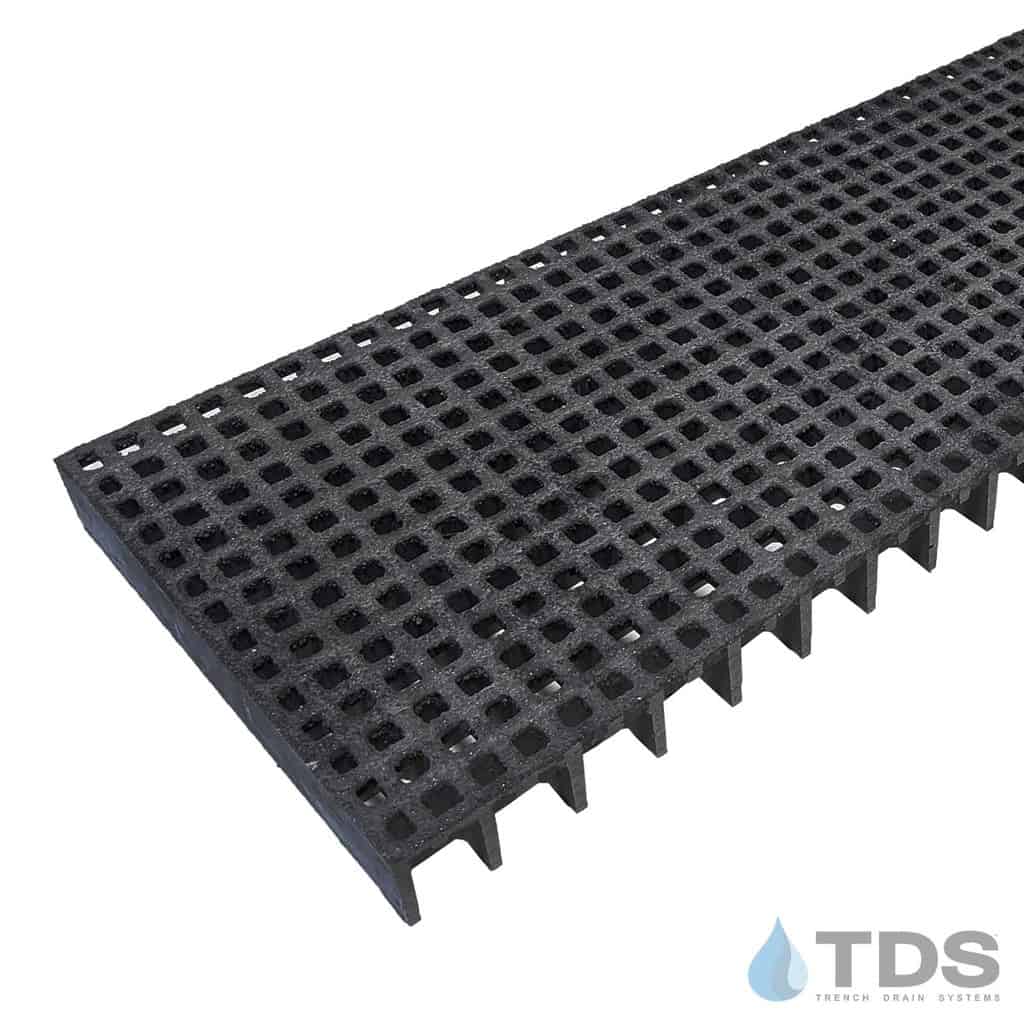

These ADA-compliant grates are manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. Actual grate width is 10.25 inches and 1.5" thick. This grate, when properly installed, has a Load Class A traffic rating. Fiberglass replacement grates deter scrap metal thieves and can be trimmed to fit custom drainage channels.
FG-734300 Locking devices (4 per grate) are sold separately. – Accepts 1/4-20 hardware (not included)
Benefits of Fiberglass Micro-Mesh Grate:
Corrosion resistance
Impact resistance
Non-slip grit traction layer
Lightweight
Nonconductive
Nonmagnetic
Load Class C rating*
ADA compliant
Grate open area of 44.4%
Grate openings 0.50"
Grate depth 1.5"
* Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as Load Class C. The same is true should the channel be rated as Load Class C and the grates are rated as load class A; the system as a whole would be rated as Load Class A.
