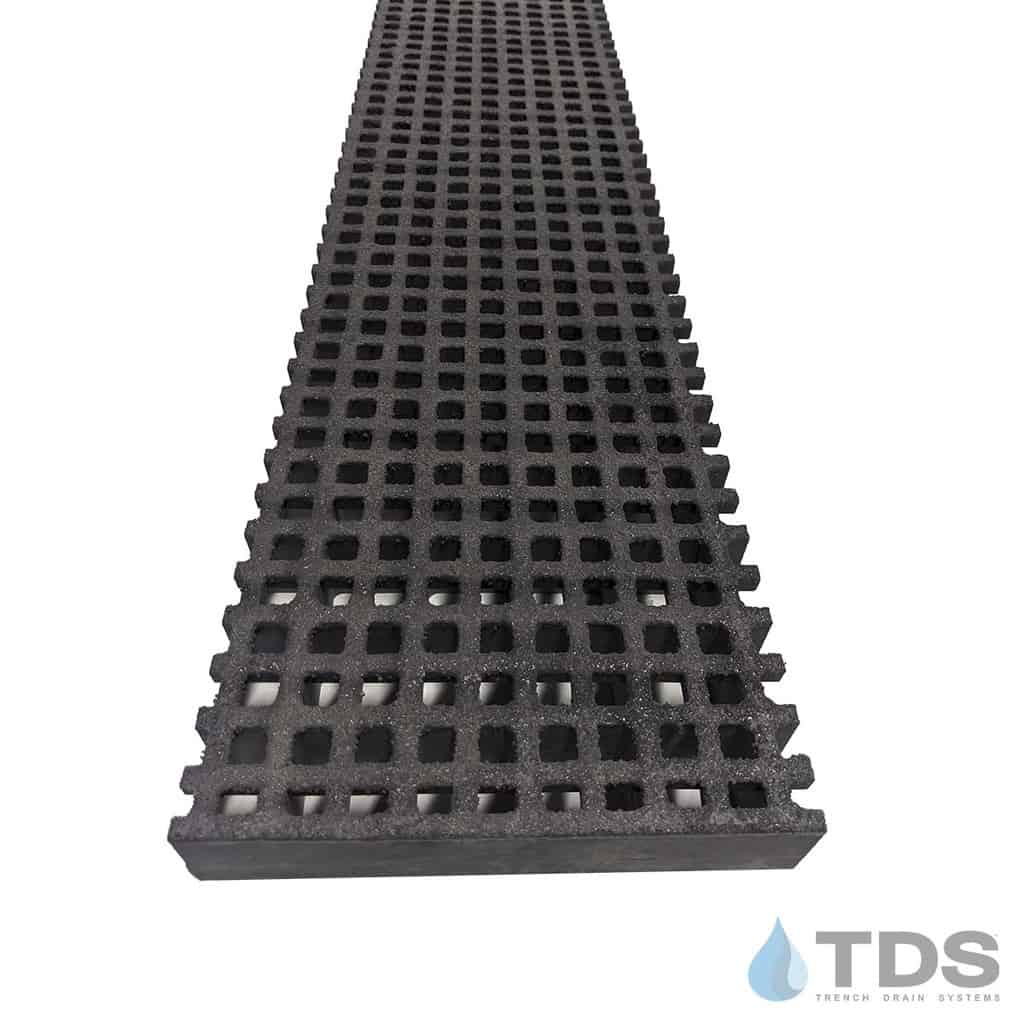

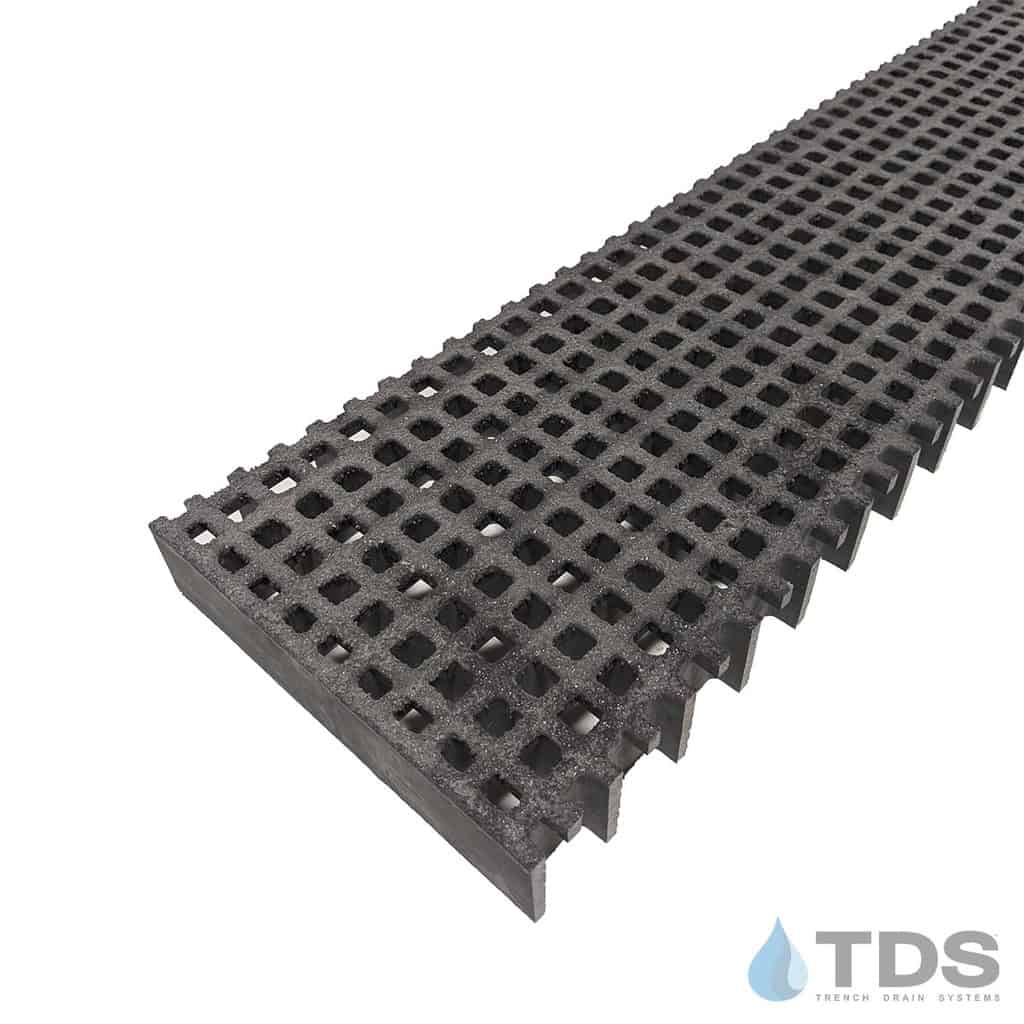

FG-MICRO-0848 Micro Mesh Fiberglass ADA Compliant 8"X48" Grate Load Class A

Grate Width: 8.00"

Grate Thickness: 1.50"

Grate Material / Color / Finish: Fiberglass - 0.75" Sq Micro-Mesh

Manufacturer: Fibergrate and TDS (Trench Drain Systems)

System: Fibergrate Kit

Grate Load Class: Class A

Grate Pattern: MICRO-MESH

Grate Pattern Style: INDUSTRIAL

Channel Material: Form Your Own OR Site Built

Channel Frame / Edging: Frame - Fibergrate - WYE and Frame - Fibergrate - EZ

Application: Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

These ADA-compliant grates are manufactured with layers of resin and fiberglass strands to create better traction than metal bar grating. The actual grate width is 8.00 inches and 1.5" thick. This grate, when properly installed, has a Load Class A traffic rating. Fiberglass replacement grates deter scrap metal thieves and can be trimmed to fit custom drainage channels.

FG-MICRO-0848 Specification Sheet

FG-734300 Locking devices (4 per grate) sold separately - Requires 1/4-20 hardware (not included)

Benefits of Fiberglass Micro-Mesh Grate:

• Corrosion resistance
• Impact resistance
• Non-slip grit traction layer
• Lightweight
• Nonconductive
• Nonmagnetic
• Load Class A rating*
• ADA compliant
• Grate open area of 44.4%
• Grate openings 0.50"
• Grate depth 1.5"

* Load class ratings for entire systems will always be determined by the lowest class within the system. For example, if the channel is rated as a C and the grate is rated as a D, the overall system will be rated as Load Class C. The same is true should the channel be rated as Load Class C and the grates are rated as Load Class A; the system as a whole would be rated as Load Class A.
