FG-MESH-CB18 Class A Fiberglass 18" x 18" x 1" Catch Basin Grate - Dark Grey

Grate Width: 18.0" x 18.0" for NDS 1800 Series

Grate Thickness: 1.00"

Grate Material / Color / Finish: Fiberglass - 1.50" Sq Mesh

Manufacturer: Fibergrate and TDS (Trench Drain Systems)

System: 1800 Series

Grate Load Class: Class A

Grate Pattern: MESH

Grate Pattern Style: INDUSTRIAL

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

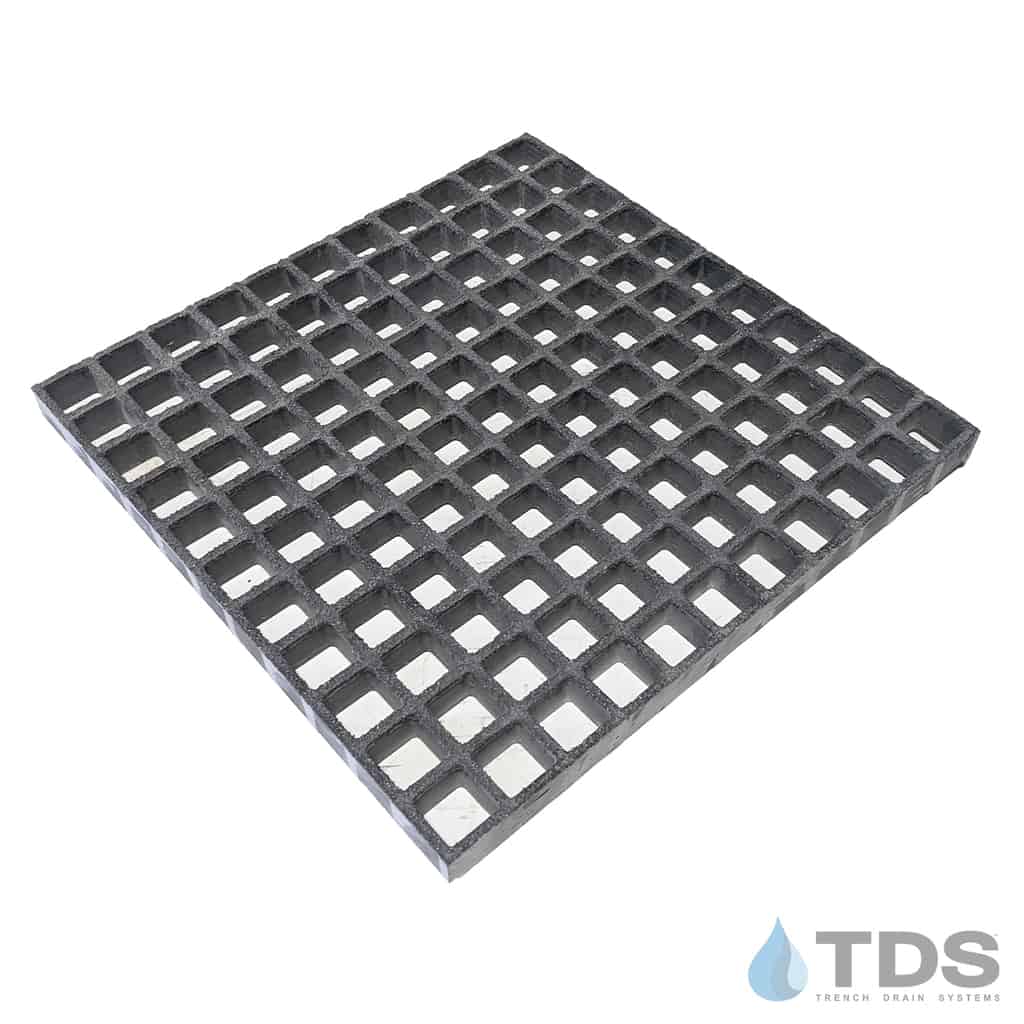

The 18" square mesh fiberglass grate with 1.5"x1.5" openings mesh grate is ideal for yard drains to collect surface water and minimize the amount of debris that enters the system. This rust, corrosion, and chemical-resistant FRP grate can be used with the 18-inch NDS catch basin, riser, or low-profile adapter to drain heavy flows of excess storm water from driveways, patios, sidewalks and landscaped areas.

Actual Dimensions: 16.63" x 16.63" x 1"
