FG-MESH-CB12 Class A Fiberglass 12" x 12" x 1" Catch Basin Grate - Dark Grey

Grate Width: 12.0" x 12.0" for NDS 1200 Series

Grate Thickness: 1.00"

Grate Material / Color / Finish: Fiberglass - 1.50" Sq Mesh

Manufacturer: Fibergrate and TDS (Trench Drain Systems)

System: 1200 Series

Grate Load Class: Class A

Grate Pattern: MESH

Grate Pattern Style: INDUSTRIAL

Channel Material: Plastic - (PP, HDPE, PE)

Channel Frame / Edging: Frame - None and Edging - None

Application: Chemical Processing, General Purpose Drainage - Interior, General Purpose Drainage - External, and Residential

FRP 12 inch catch basin grate

Large project? Request a Quote

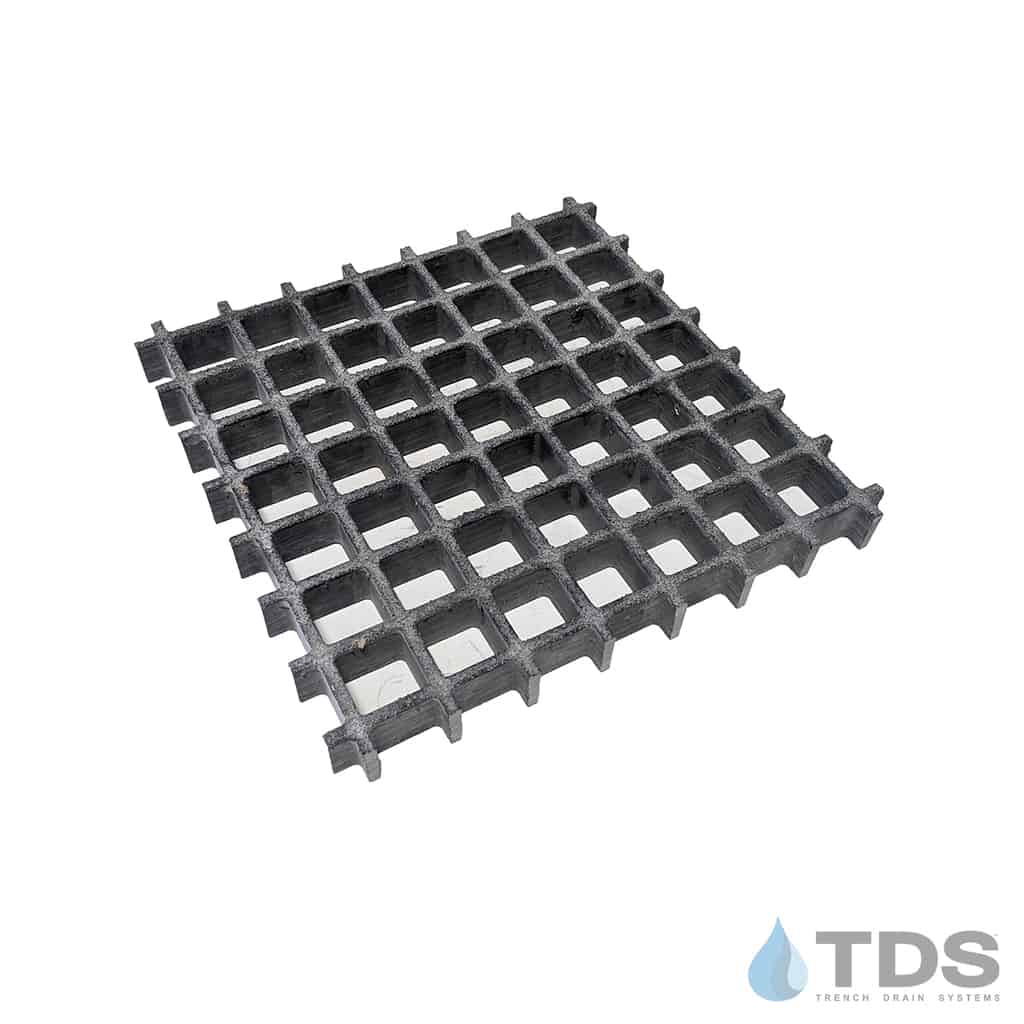

The 12" square fiberglass mesh grate with 1.5" x 1.5" openings is ideal for yard drains to collect surface water and minimize the amount of debris that enters the system. This rust, corrosion and chemical resistant FRP grate can be used with the 12 inch NDS catch basin, riser, or low-profile adapter to drain heavy flows of excess storm water from driveways, patios, sidewalks and landscaped areas.

Actual Dimensions: 11.5" x 11.5" x 1"

Need a custom-size fiberglass grate? Request a quote today!
